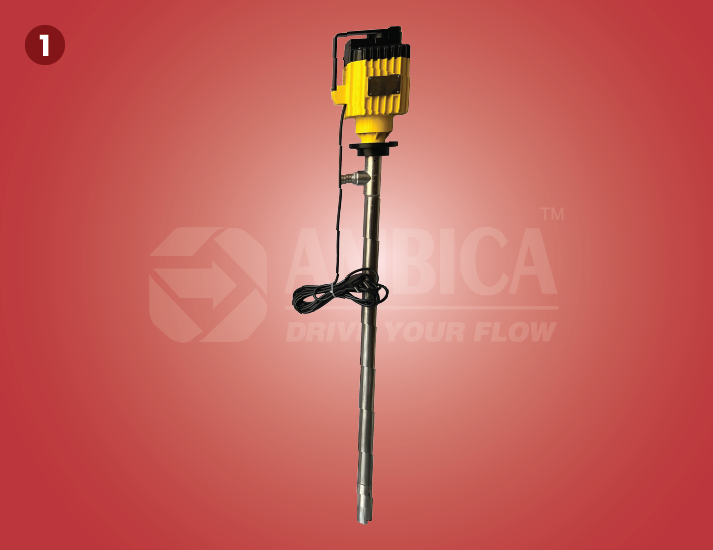

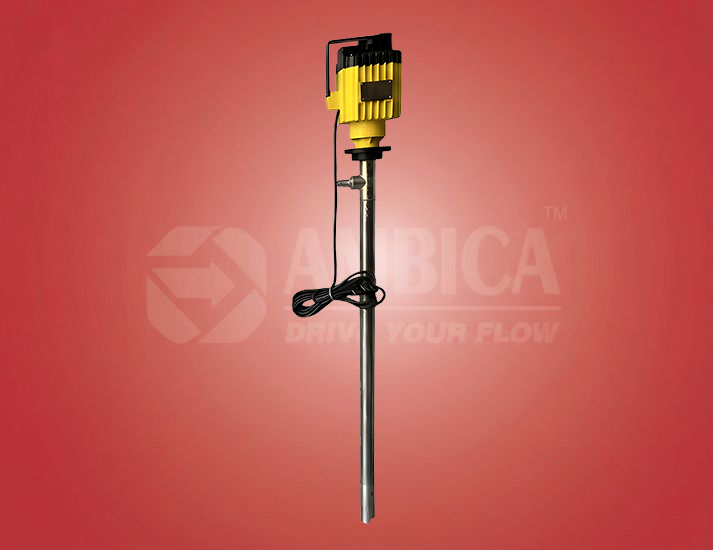

AMTMBP - 100S
| THEORY |
ELECTRIC MOTOR OPERATED BARREL PUMP |
|---|---|
| APPLICATION |
CHEMICALS,LIGHT DUTY OIL,ACIDS,LOW-VISCOSITY MATERIAL Etc. |
| Port Size |
Inlet Size: 42 MM Out Let size : 25 MM |
| MAX. HEAD |
15 MTRS VERTICAL MAX. APPROX |
| MAX. CAPACITY |
80 TO 90 LITER/MINUTE MAX. APPROX(OPEN DISCHARGE) |
| SUITABLE FOR DRUM |
55 GALLON (220 LTR.) |
| SUCTION TUBE LENGTH |
1040 MM |
| ROTATION FROM DRIVE UNIT |
CLOCK WISE |
| MATERIAL |
POLYPROPYLENE/PVDF |
| IMPELLER TYPE |
OPEN TYPE IMPELLER |
| ELECTRIC MOTOR |
1 HP - 12000 RPM - SINGLE PHASE |
| NET WEIGHT |
14 KGS |

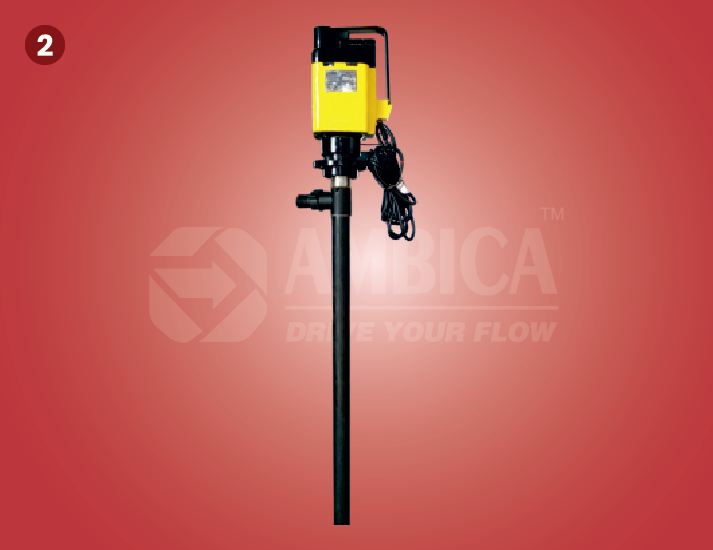

AMTMBP - 100P
| THEORY |
ELECTRIC MOTOR OPERATED BARREL PUMP |
|---|---|
| APPLICATION |
CHEMICALS,LIGHT DUTY OIL,ACIDS,LOW-VISCOSITY MATERIAL Etc. |
| Port Size |
Inlet Size: 42 MM Out Let size : 25 MM |
| MAX. HEAD |
15 MTRS VERTICAL MAX. APPROX |
| MAX. CAPACITY |
80 TO 90 LITER/MINUTE MAX. APPROX (OPEN DISCHARGE) |
| MOTOR KW/RPM |
1 HP / 12000 / SINGLE PHASE MOTOR |
| SUITABLE FOR DRUM |
55 GALLON (220 LTR.) |
| SUCTION TUBE LENGTH |
1040 MM |
| ROTATION FROM DRIVE UNIT |
CLOCK WISE |
| MATERIAL |
POLYPROPYLENE / PVDF / TEFLON - WITH HASTELLOY SHAFT |
| IMPELLER TYPE |
OPEN TYPE IMPELLER |
| NET WEIGHT |
11 KGS |

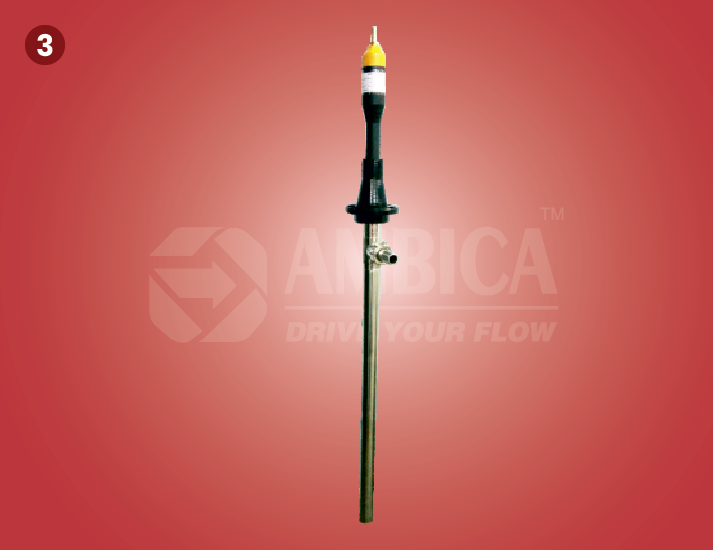

AMTMB - 100S
| THEORY |
PNEUMATIC MOTOR OPERATED BARREL PUMP |
|---|---|
| APPLICATION |
KEROSENE, LIGHT OIL, CHEMICAL, ALCOHOL, INDUSTRIAL ACID |
| Port Size |
Inlet Size: 42 MM Out Let size : 25 MM |
| MAX. HEAD |
15 MTRS VERTICAL APPROX |
| MAX. CAPACITY |
80 TO 90 LITER/MINUTE MAX. APPROX (OPEN DISCHARGE) |
| MOTOR KW/RPM |
1HP / 12000 / SINGLE PHASE MOTOR |
| SUITABLE FOR DRUM |
55 GALLON (220 LTR.) |
| SUCTION TUBE LENGTH |
1050 MM |
| ROTATION FROM DRIVE UNIT |
CLOCK WISE |
| MATERIAL |
STAINLESS STEEL 316 |
| IMPELLER TYPE |
OPEN TYPE IMPELLER |
| NET WEIGHT |
9 KGS |

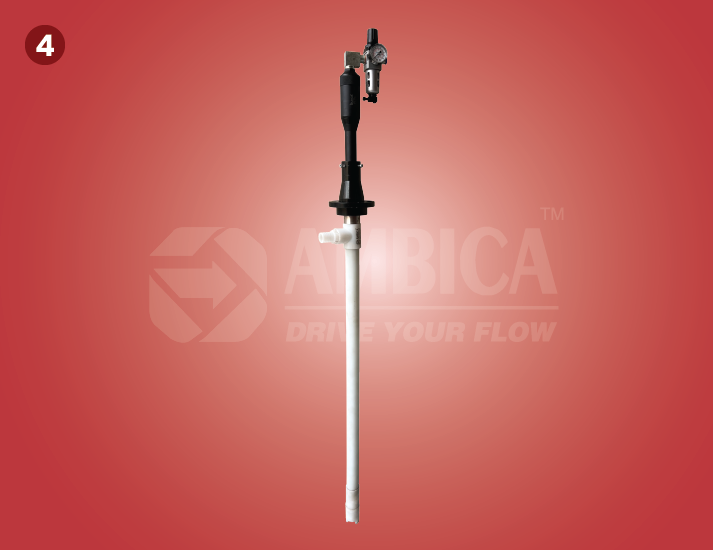

AMTMB - 100P
| THEORY |
PNEUMATIC MOTOR OPERATED BARREL PUMP |
|---|---|
| APPLICATION |
KEROSENE, LIGHT OIL, CHEMICAL, ALCOHOL, INDUSTRIAL ACID |
| Port Size |
Inlet Size: 42 MM Out Let size : 25 MM |
| MAX. HEAD |
15 MTRS VERTICAL APPROX |
| MAX. CAPACITY |
80 TO 90 LITER/MINUTE MAX. APPROX (OPEN DISCHARGE) |
| MOTOR KW/RPM |
1HP / 12000 / SINGLE PHASE MOTOR |
| SUITABLE FOR DRUM |
55 GALLON (220 LTR.) |
| SUCTION TUBE LENGTH |
1050 MM |
| ROTATION FROM DRIVE UNIT |
CLOCK WISE |
| MATERIAL |
POLYPROPYLENE / PVDF / TEFLON |
| IMPELLER TYPE |
OPEN TYPE IMPELLER |
| NET WEIGHT |
8 KGS |

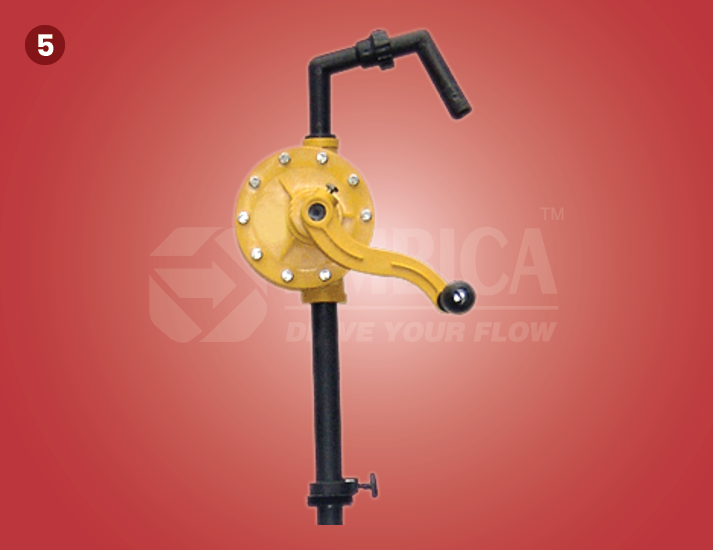

AMTBPP - 100
| THEORY |
ROTARY HAND OPERATED POLYPROPYLENE BARREL PUMP |
|---|---|
| USAGE |
ACID, ALKALI, GASOLINE, DIESEL, OIL, WATER, ALCOHOL, CHEMICALS |
| VAILABLE GALLON DRUM : |
5, 15, 30, 55 GALLON |
| MOUNTING |
2” MNPT BUNG ADAPTER |
| CAPACITY |
1 LTR OUTPUT @ 3 TO 4 ROTATION |
| SUCTION TUBE LENGTH |
1060 MM |
| Port Size |
Inlet Size: 1-1/4” O.D. Out Let size : 1” O.D. CURVED SPOUT |
| SUCTION & DELIVERY SIZE |
25MM X 25MM |
| WETTED PARTS |
VITON SEAL, ROTARY VANE, PP SPOUT, PP SUCTION TUBE |
| NET WEIGHT |
2 KGS |

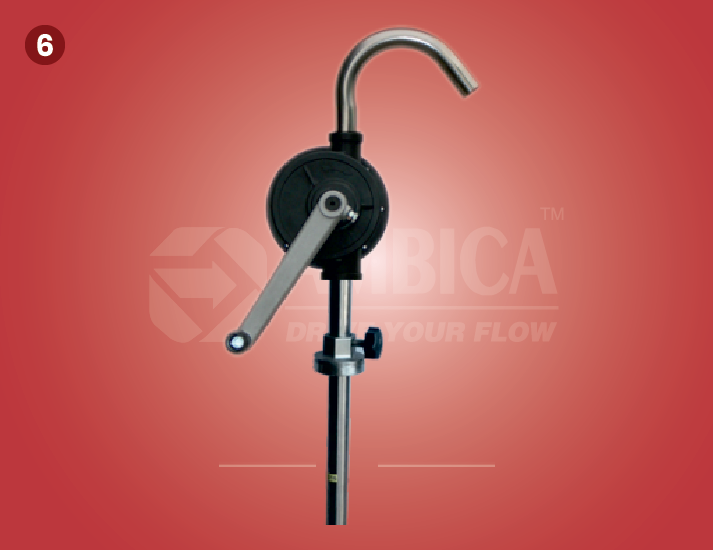

AMTBSS - 100
| THEORY |
ROTARY HAND OPERATED STAINLESS STEEL BARREL PUMP |
|---|---|
| USAGE |
ACID, ALKALI, GASOLINE, DIESEL, OIL, WATER, ALCOHOL, CHEMICALS |
| VAILABLE GALLON DRUM : |
5, 15, 30, 55 GALLON |
| MOUNTING |
2” MNPT BUNG ADAPTER |
| CAPACITY |
1 LTR OUTPUT @ 3 TO 4 ROTATION |
| SUCTION TUBE LENGTH |
1060 MM |
| Port Size |
Inlet Size: 1-1/4” O.D Out Let size : 1” O.D. CURVED SPOUT |
| SUCTION & DELIVERY SIZE |
32MM X 25MM |
| WETTED PARTS |
STAINLESS STEEL 316 |
| NET WEIGHT |
5.300 KGS |

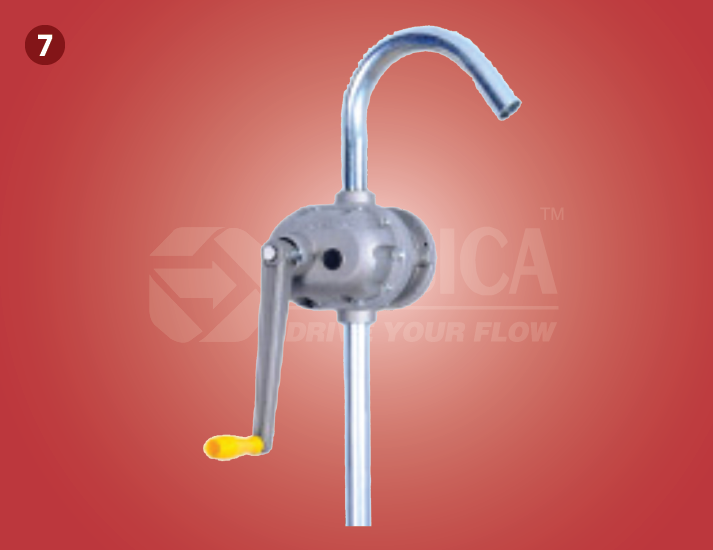

AMTGBP - 100
| THEORY |
ROTARY HAND OPERATED ALUMINUM PUMP |
|---|---|
| Port Size |
Inlet Size: 32 MM Out Let size : 25 MM |
| CAPACITY |
1 LTR OUTPUT IN 1 ROTATION (100 LITERS/MINUTE - APPROX |
| HEAD |
15 MTRS VERTICAL AND 50 MTRS HORIZONTAL FIT 2NPT BUNG NUT |
| AVAILABLE GALLON DRUM |
15, 30, 55 GALLON |
| APPLICATION |
THIS VERSATILE DRUM PUMP IS SUITABLE FOR THE TRANSFER OF LOW VISCOSITY FLUIDS SUCH AS GASOLINE, KEROSENE, DIESEL, MACHINE OIL, ETC |
| SUCTION TUBE LENGTH |
1060 MM |
| MATERIAL |
ALUMINUM & ZINC PLATED STEEL TUBE |
| NET WEIGHT |
6 KGS |

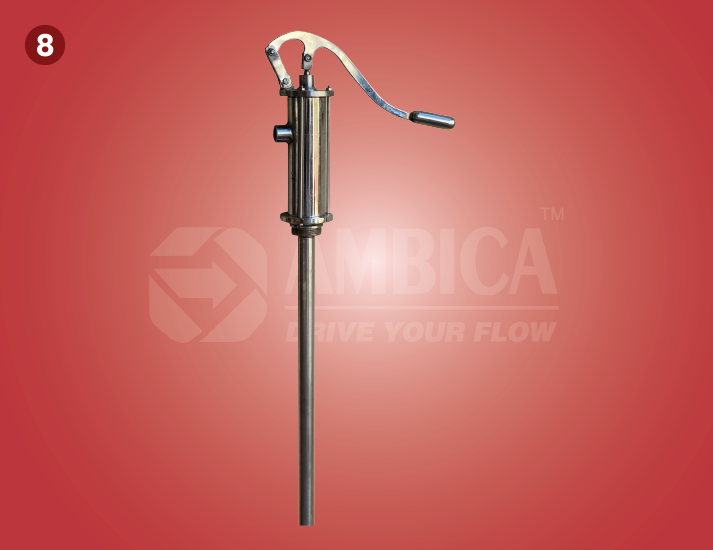

AMTPBS - 100
| THEORY |
HAND OPERATED STAINLESS STEEL 316 PISTON TYPE BARREL PUMP |
|---|---|
| USAGE |
ACID, ALKALI, GASOLINE, DIESEL, OIL, WATER, ALCOHOL, CHEMICALS |
| AVAILABLE GALLON DRUM |
5, 15, 30, 55 GALLON |
| HEAD |
17 MTRS APPROX |
| MOUNTING |
2" MNPT BUNG ADAPTER |
| CAPACITY |
35 LPM @ CONTINUOUS OPERATION |
| SUCTION TUBE LENGTH |
1060 MM |
| Port Size |
Inlet Size: 1” CONNECTION Out Let size : 1" CONNECTION |
| SUCTION & DISCHARGE SIZE |
32MM X 25MM |
| WETTED PARTS |
STAINLESS STEEL 316 |

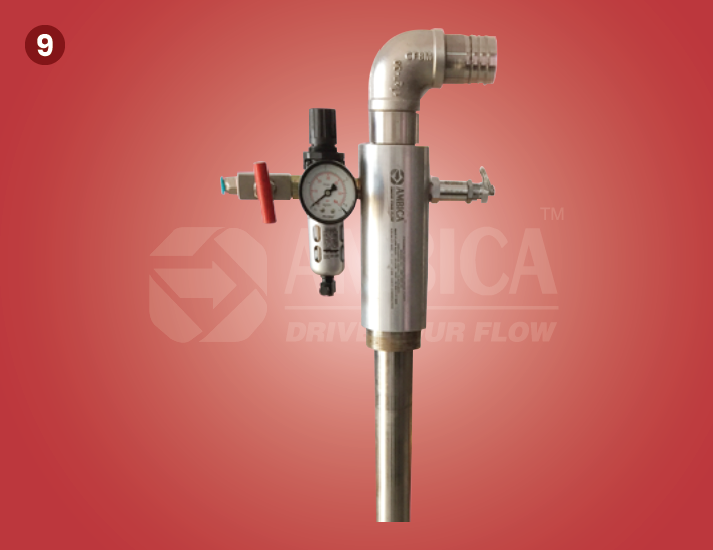

AMTABP - 50
| THEORY |
PNEUMATIC OPERATED BARREL PUMP |
|---|---|
| APPLICATION |
ACID, ALKALI, GASOLINE, DIESEL, OIL, WATER, ALCOHOL, CHEMICALS |
| Port Size |
Inlet Size: 40 MM Out Let size : 25 MM |
| MAX HEAD |
12 MTR. APPROX |
| AIR HOSE DIA |
8 MM |
| CAPACITY |
60 TO 70 LPM APPROX |
| SUCTION TUBE LENGTH |
1050 MM |
| SAFETY VALVE PRESSURE |
0.03 MPA |
| AIR PRESSURE |
0.1 MPA |
| MATERIAL |
STAINLESS STEEL 316 |
| NET WEIGHT |
7 KGS |

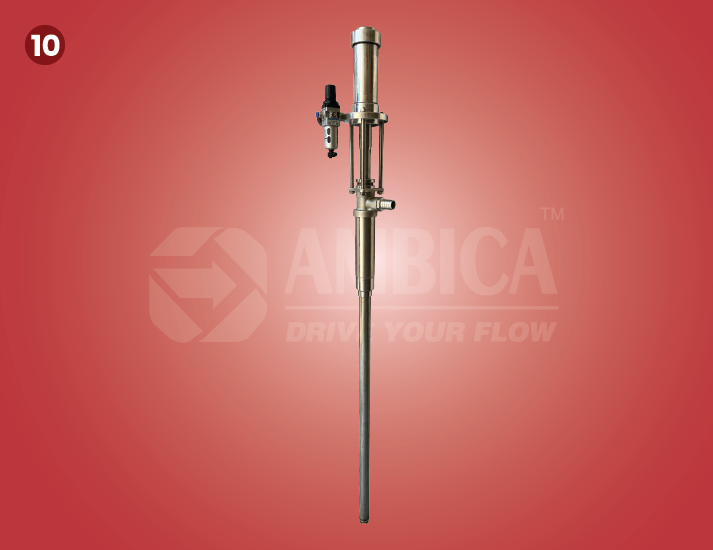

AMTBP - 50S
| THEORY |
PNEUMATIC PISTON TYPE BARREL PUMP |
|---|---|
| APPLICATION |
TO TRANSFER VISCOUS MATERIAL UP TO CERTAIN VISCOCITY |
| Port Size |
Inlet Size: 42 MM Out Let size : 25 MM |
| MAX. HEAD |
20 MTR MAX. |
| MAX. CAPACITY |
30 TO 35 LPM MAX. @ 15 MTR HEAD APPROX |
| AIR HOSE DIA |
8 MM |
| SUCTION TUBE LENGTH |
AS PER STD. BARREL LENGTH |
| SUITABLE FOR DRUM |
55 GALLON (220 LTR.) |
| AIR PRESSURE REQUIRED |
APPROX. 21 CFM |
| MATERIAL |
SS 316 WITH TEFLON PART IN LIQUID CONTACT & AIR CHAMBER OF ALUMINUM |
| NET WEIGHT |
11 KGS |

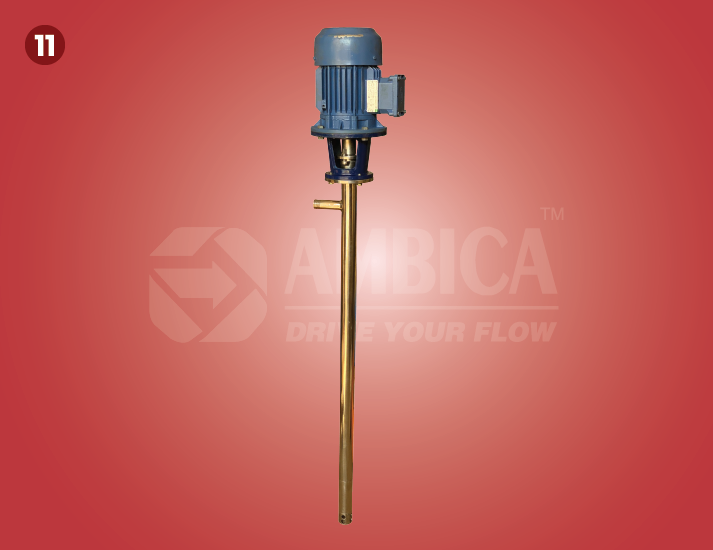

AMTSBP - 100S
| THEORY |
ELECTRIC MOTOR OPERATED SCREW TYPE BARREL PUMP |
|---|---|
| APPLICATION |
TO TRANSFER HIGH VISCOUS MATERIAL |
| MOTOR POWER |
1HP / 3PH / 960 RPM - FLANGE MOUNTED |
| Port Size |
Inlet Size: 42 MM Out Let size : 1.5" MM |
| MAX. HEAD |
10 MTRS |
| MAX. CAPACITY |
20 TO 22 LPM/MIN |
| SUCTION TUBE LENGTH |
1090 MM |
| SUITABLE FOR DRUM |
55 GALLON (220 LTR.) |
| ROTATION FROM DRIVE UNIT |
CLOCK WISE |
| ROTOR |
STAINLESS STEEL 316 |
| STATOR |
FOOD GRADE RUBBER (SILICON RUBBER) |
| IMPELLER TYPE |
OPEN TYPE IMPELLER |
| NET WEIGHT |
24 KGS |
