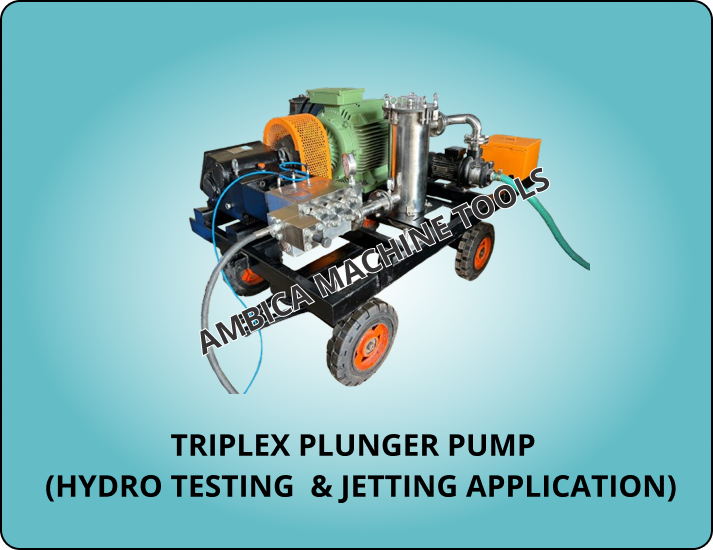

AMTMP
Triplex Plunger Pump
The TRIPLEX PLUNGER PUMP AMTMP Series is a reliable and powerful high-pressure pump designed to handle challenging industrial applications.
The pump is designed for high-pressure industrial cleaning, hydroblasting, hydrostatic testing, fluid transportation, reverse osmosis and desalination applications.
AMTMP Series Specifications
Technical specifications, operating details and construction information of the AMTMP high pressure triplex plunger pump.
| Model Series | AMTMP Series |
|---|---|
| Maximum Pressure | 10,000 PSI / 750 BAR |
| Plunger Stroke | 75 mm |
| Plunger Force | 3128 KN (3190 Kg) |
| Maximum Plunger Speed | 132 m/sec @ 530 SPM |
| Inlet Pressure | 2 to 3 Bar (Booster pump flow requires minimum 15 times of rated flow) |
| Oil Type | 80W 90 |
| Oil Capacity | 5 Ltr |
| Maximum Liquid Temperature | 70 Deg. C (360 Deg. F) |
| Suction Connection | 2" BSPF |
| Discharge Connection | 1/2" BSPF |
| Medium | Clean Water |
| Gear System | Designed-in Built Gear |
| Lubrication | Splash Lubrication / Forced Feed Lubrication |
AMTMP Operating Details
| Plunger Size | 20 mm to 40 mm |
|---|---|
| Flow Capacity | 35 L/h to 145 L/h |
| Power Compatibility | 60 HP, 75 HP, 100 HP, 120 HP |
| Maximum Rated Pressure | 10,000 PSI / 750 BAR |
| Medium | Clean Water |
| Maximum Liquid Temperature | 70 Deg. C |
| Suction Connection | 2" BSPF |
| Discharge Connection | 1/2" BSPF |
AMTMP - SERIES 10000 PSI (750 BAR) PUMP
CRANK SHAFT SPEEDS 530 MIN. WITH
| Model No. | Plungdia | Flow Rate | 60 HP | 75 HP | 100 HP | 120 HP |
|---|---|---|---|---|---|---|
| AMTMP - 62/35 | 20 | 35 | 620 | 750 | - | - |
| AMTMP - 52/42 | 22 | 42 | 520 | 680 | - | - |
| AMTMP - 43/52 | 24 | 52 | 430 | 530 | 720 | - |
| AMTMP - 36/62 | 26 | 62 | 360 | 450 | 600 | 745 |
| AMTMP - 31/70 | 28 | 70 | 310 | 375 | 510 | 660 |
| AMTMP - 27/80 | 30 | 80 | 270 | 330 | 450 | 580 |
| AMTMP - 24/90 | 32 | 90 | 240 | 330 | 400 | 515 |
| AMTMP - 19/115 | 36 | 115 | 190 | 230 | 315 | 400 |
| AMTMP - 15/145 | 40 | 145 | 150 | 185 | 250 | 320 |
AMTMP Construction Details
ALLOY STEEL
Crankshaft is made of nitrated, hardened and precision ground for extremely long life and durability.
Main Body (Crank Case) SPHEROIDAL GRAPHITE IRON
Main body in spheroidal graphite iron casting with honned surface finish bore.
Piston (Cross Head) GREY IRON & STAINLESS STEEL
Alloy steel casting piston and stainless steel piston rod are hardened and super finish surface.
Connecting Rod ALLOY STEEL
Forged steel connecting rods with antifriction bearings. Heavy pin area construction, for added load strength.
Bearing OVERSIZED BEARING
Oversized for maximum life and load distribution. Self alignment roller bearing enables it to handle 26% more load than other pumps.
Pump Head STAINLESS STEEL
Liquid end is made of high corrosion resistant forged Stainless Steel 304.
Complete Valve STAINLESS STEEL
Valves made stainless steel for hardened and anti-corrosion hard surface coated for long life. High volumetric efficiency valves operate at 96% efficiency plus.
Plunger CERAMIC / TUNGSTEN COATED
Primarily composed of ceramic coated or Tungsten coated. Surface roughness is extremely good, i.e. <0.2 Ra. (99.5% Alumina Grade)
Plunger Seal PTFE ARAMIDE
Aramide fibre yarn packing with PTFE fibre face or carbonaceous aramide yarn packing with GFO fibre face for high compressive and tensile strength ensure effective sealing.
White Metal Bearing ANTIFRICTION BEARING
Antifriction bearings for long life of crankshaft.
Helical Gear ALLOY STEEL
Helical gear is nitride hardened and precision ground for extremely long life and durability.
Pinion Shaft ALLOY STEEL
Pinion shaft is nitride hardened and precision ground for extremely long life and durability.

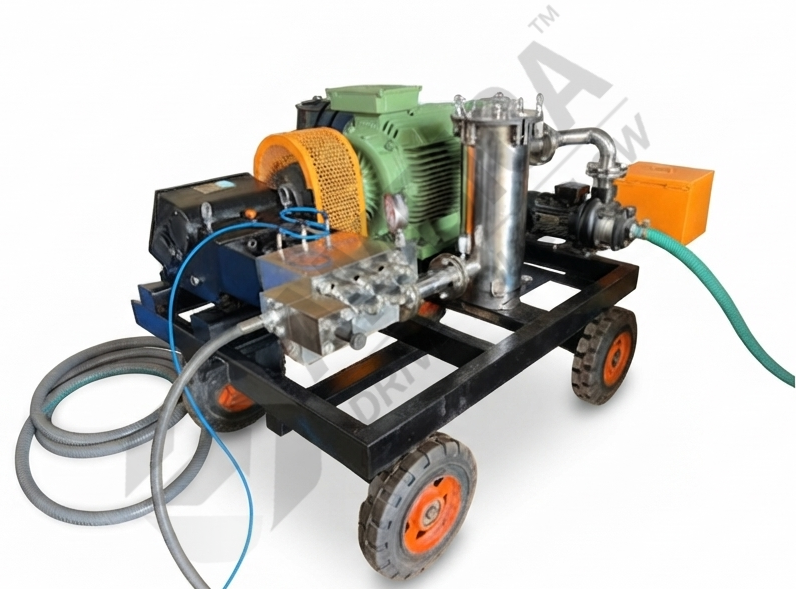

AMTMP Triplex Plunger Pump
for High Pressure Industrial Applications
The TRIPLEX PLUNGER PUMP AMTMP Series is a reliable and powerful high-pressure pump designed to handle challenging industrial applications.
As a leading TRIPLEX PLUNGER PUMP manufacturer in India, Ambica Machine Tools provides high-quality pumps engineered for precision, durability and efficiency.
The AMTMP Series is suitable for critical operations including industrial cleaning, hydroblasting, hydrostatic testing, fluid transfer, reverse osmosis and desalination applications.
The pump is designed to provide steady and reliable high-pressure performance for demanding industrial environments.
High Pressure Performance
- 10,000 PSI
- Maximum pressure capability up to 750 BAR for demanding applications.
Suitable Applications
The AMTMP Triplex Plunger Pump is designed for various high-pressure industrial applications.
Hydroblasting
Tube Cleaning
Paint Removal
Hydro Test
Surface Preparation
Industrial Cleaning & Jetting
Fluid Transportation
Reverse Osmosis & Desalination
High Pressure Pumping
Designed for demanding high-pressure cleaning, testing, water treatment and industrial fluid handling applications.
AMTMP Series Key Highlights
High-Pressure Performance
Operates up to 10,000 PSI (750 BAR) for demanding industrial applications.
Wide Flow Range
Available flow rates range from 35 to 145 liters per hour.
Rugged & Durable Design
Heavy-duty construction provides long service life and reliable operation.
Triple Plunger Mechanism
Provides steady and smooth flow with reduced pulsations during operation.
Adaptable Power Options
Compatible with 60 HP, 75 HP, 100 HP and 120 HP power options.
Industrial Construction
Precision engineered components are designed for demanding industrial service.
Easy Maintenance
The pump is designed with accessible components to simplify routine inspection, servicing and maintenance.
Corrosion Resistant Construction
Stainless steel, ceramic/tungsten coated and specially finished components provide enhanced resistance for demanding operating conditions.
Benefits of AMTMP Triplex Plunger Pump
Reliable Operation
Designed for consistent high-pressure performance in demanding industrial environments.
Long Service Life
Heavy-duty materials and precision-finished components support extended service life.
High Efficiency
High volumetric efficiency valves help provide efficient pumping performance.
Multiple Applications
Suitable for hydroblasting, hydro testing, cleaning and water treatment applications.
Important Technical Notes
permissible fluid temperature is 70 Deg. C.
Power calculations shown in the table are based on maximum rated pressure. For low pressure requirements, power will also be proportionally reduced.
speed lower than specified in the above chart is also available for special appdivcations.
Volumetric efficiency is considered at 100% where not specified.
High Volumetric Efficiency
Stainless steel valves are designed for long life and high volumetric efficiency.
Triplex Plunger Pump Manufacturer in India
As a trusted TRIPLEX PLUNGER PUMP AMTMP manufacturer and supplier in India, Ambica Machine Tools ensures that its pumps meet high quality standards for reliability, efficiency and durability.
Whether you need a pump for high-pressure industrial applications or specialized fluid transfer, the AMTMP Series Triplex Plunger Pump is designed for demanding industrial requirements.
With its robust construction, high-pressure capability and multiple power options, the AMTMP Series can be used across industrial cleaning, hydroblasting, hydro testing, water treatment and fluid handling applications.
High-pressure triplex plunger pump engineered for reliable industrial performance.
Enquire About AMTMP Triplex Plunger Pump
Contact Ambica Machine Tools for product details, technical specifications and application requirements.
