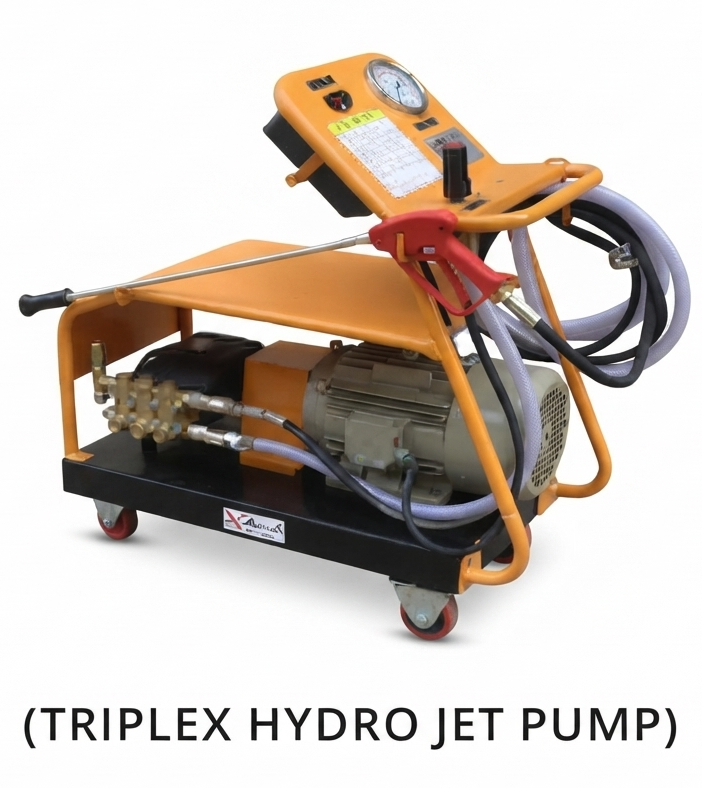

AMTJHP
Triplex Plunger Pump
The AMTJHP Triplex Plunger Pump is a high-pressure industrial pump designed for demanding applications including hydro testing, pressure testing, jetting, cleaning and other high-pressure fluid applications.
The pump is available with different flow rates and pressure ranges, providing reliable and efficient performance for industrial applications.
AMTJHP Triplex Plunger Pump Specifications
Technical specifications, performance range and model details of the AMTJHP high-pressure triplex plunger pump.
| Model | AMTJHP Series |
|---|---|
| Pump Type | Triplex Plunger Pump |
| Application | Hydro Testing, Pressure Testing, Jetting & High Pressure Cleaning |
| Maximum Pressure | Up to 500 Bar |
| Maximum Pressure | Up to 7250 PSI |
| Maximum Flow | Up to 170 LPM |
| Maximum RPM | Up to 1440 RPM |

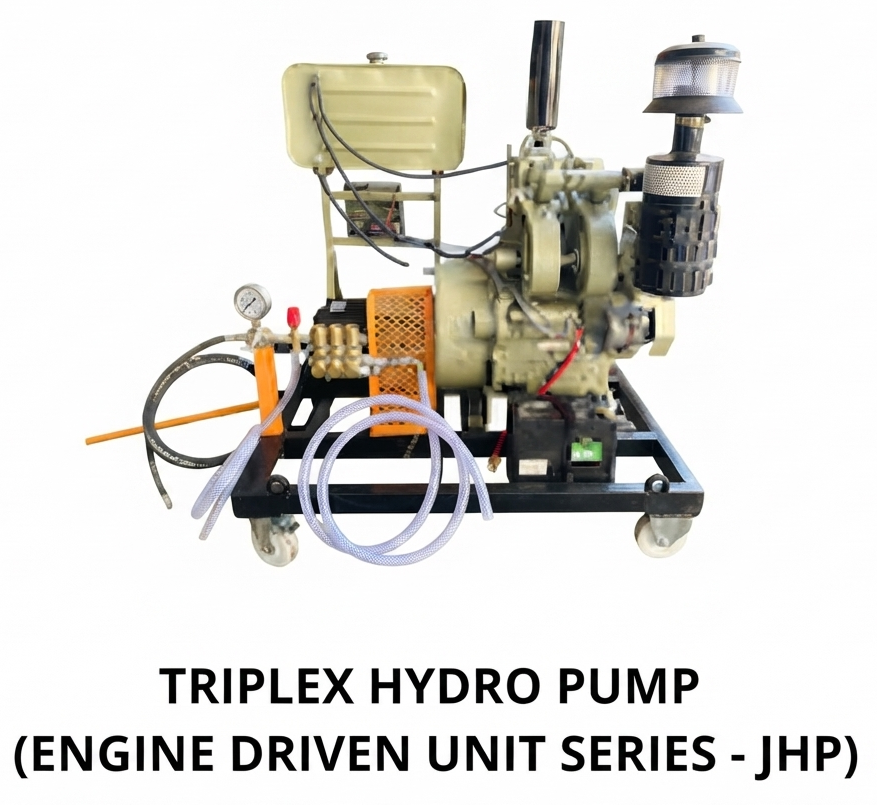

| Drive System | Electric Motor or Engine Driven |
| Pump Design | Triplex Plunger Design |
| Mounting | Trolley Mounted Pump Unit |
| Lubrication | Self Oiling System |
| Pressure Control | Adjustable Pressure Regulator |
AMTJHP Triplex Plunger Pump Model Range
Flow rate, pressure, RPM and maximum power specifications for available AMTJHP models.
| Model No. | Flow Rate 50Hz |
Flow Rate 60Hz |
US GPM 50Hz |
US GPM 60Hz |
Max. Pressure Bar |
Max. Pressure PSI |
RPM 50Hz |
RPM 60Hz |
Max Power HP 50Hz |
Max Power HP 60Hz |
Max Power KW 50Hz |
Max Power KW 60Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JHP8515A | 8.5 | 10 | 2.2 | 2.7 | 150 | 2200 | 1450 | 1750 | 3.2 | 3.8 | 2.4 | 2.9 |
| JHP1015A | 10 | 12 | 2.6 | 3.2 | 150 | 2200 | 1450 | 1750 | 3.7 | 4.7 | 2.8 | 3.5 |
| JHP1215A | 12 | 14 | 3.1 | 3.7 | 150 | 2200 | 1450 | 1750 | 4.6 | 5.4 | 3.4 | 4.0 |
| JHP1315A | 13 | 15 | 3.4 | 4.0 | 150 | 2200 | 1450 | 1750 | 5.0 | 5.8 | 3.7 | 4.3 |
| JHP1515A | 15 | 18 | 4.0 | 4.7 | 150 | 2200 | 1450 | 1750 | 5.8 | 7.0 | 4.3 | 5.2 |
| JHP2115A | 21 | 25 | 5.6 | 6.6 | 150 | 2200 | 1450 | 1750 | 7.7 | 9.2 | 5.7 | 6.8 |
| JHP4215A | 42 | 48 | 11.1 | 12.7 | 150 | 2200 | 1450 | 1750 | 15.7 | 18.2 | 11.2 | 13.4 |
| JHP5415A | 54 | 65 | 14.3 | 17.2 | 150 | 2200 | 1450 | 1750 | 21.2 | 25.4 | 15.6 | 18.7 |
| JHP1120A | 11 | 13 | 2.9 | 3.5 | 200 | 3000 | 1450 | 1750 | 5.0 | 5.8 | 3.7 | 4.3 |
| JHP1520A | 15 | 18 | 4.0 | 4.7 | 200 | 3000 | 1450 | 1750 | 7.7 | 9.2 | 5.7 | 6.8 |
| JHP2120A | 21 | 25 | 5.5 | 6.6 | 200 | 3000 | 1450 | 1750 | 10.7 | 12.8 | 7.9 | 9.4 |
| JHP4220A | 42 | 48 | 11.1 | 12.7 | 200 | 3000 | 1450 | 1750 | 20.5 | 24.6 | 15.1 | 18.1 |
| JHP1525A | 15 | 18 | 4.0 | 4.7 | 250 | 3650 | 1450 | 1750 | 10.7 | 12.8 | 7.9 | 9.4 |
| JHP1825A | 18 | 21.5 | 4.7 | 5.6 | 250 | 3650 | 1450 | 1750 | 10.7 | 12.8 | 7.9 | 9.4 |
| JHP2125A | 21 | 25 | 5.5 | 6.6 | 250 | 3650 | 1450 | 1750 | 12.5 | 14.4 | 9.3 | 10.5 |
| JHP1530A | 15 | 18 | 4.0 | 4.7 | 300 | 4350 | 1450 | 1750 | 12.5 | 14.4 | 9.3 | 10.5 |
| JHP2130A | 21 | 25 | 5.5 | 6.6 | 300 | 4350 | 1450 | 1750 | 15.2 | 18.2 | 11.2 | 13.4 |
| JHP1135A | 11 | 13 | 3.0 | 3.6 | 350 | 5000 | 1450 | 1750 | 10.1 | 12.1 | 7.4 | 8.9 |
| JHP1735A | 17 | 20 | 4.5 | 5.4 | 350 | 5000 | 1450 | 1750 | 15.2 | 18.2 | 11.2 | 13.4 |
| JHP2135A | 21 | 26 | 5.7 | 6.8 | 350 | 5000 | 1450 | 1750 | 19.5 | 23.4 | 14.4 | 17.3 |
| JHP1150A | 11 | 13 | 2.9 | 3.5 | 500 | 7250 | 1450 | 1750 | 14.3 | 17.2 | 10.5 | 12.6 |
| JHP1750A | 17 | 20 | 4.4 | 5.3 | 500 | 7250 | 1450 | 1750 | 21.4 | 25.7 | 15.8 | 19.0 |
| JHP2150A | 21 | 26 | 5.7 | 6.8 | 500 | 7250 | 1450 | 1750 | 27.6 | 33.1 | 20.3 | 24.4 |
| JHP5450A | 54 | 65 | 14.5 | 17.2 | 150 | 2175 | 1450 | 1750 | 21.2 | 25.4 | 15.6 | 18.7 |
| JHP8020A | 80 | 96 | 20.9 | 25.1 | 200 | 2900 | 1450 | 1750 | 41.2 | 49.3 | 30.2 | 36.2 |
| JHP1712A | 170 | 204 | 45.0 | 54.0 | 120 | 1740 | 1450 | 1750 | 52.2 | 62.9 | 36.6 | 46.3 |
AMTJHP Performance Range
Up to 500 Bar
High pressure performance up to 500 Bar depending on the selected model.
Up to 7250 PSI
Suitable for high pressure hydrostatic and industrial testing applications.
Up to 170 LPM
Different flow rates are available for different industrial applications.
Up to 1440 RPM
Designed for efficient high-pressure pump operation.
Heavy Duty Gearbox
Heavy duty precision gearbox for reliable industrial operation.
Self Oiling System
Self oiling system designed for dependable pump operation.
Pressure Regulator
Adjustable pressure regulator for controlled pressure operation.
Trolley Mounted
Trolley mounted pump unit for convenient industrial handling.

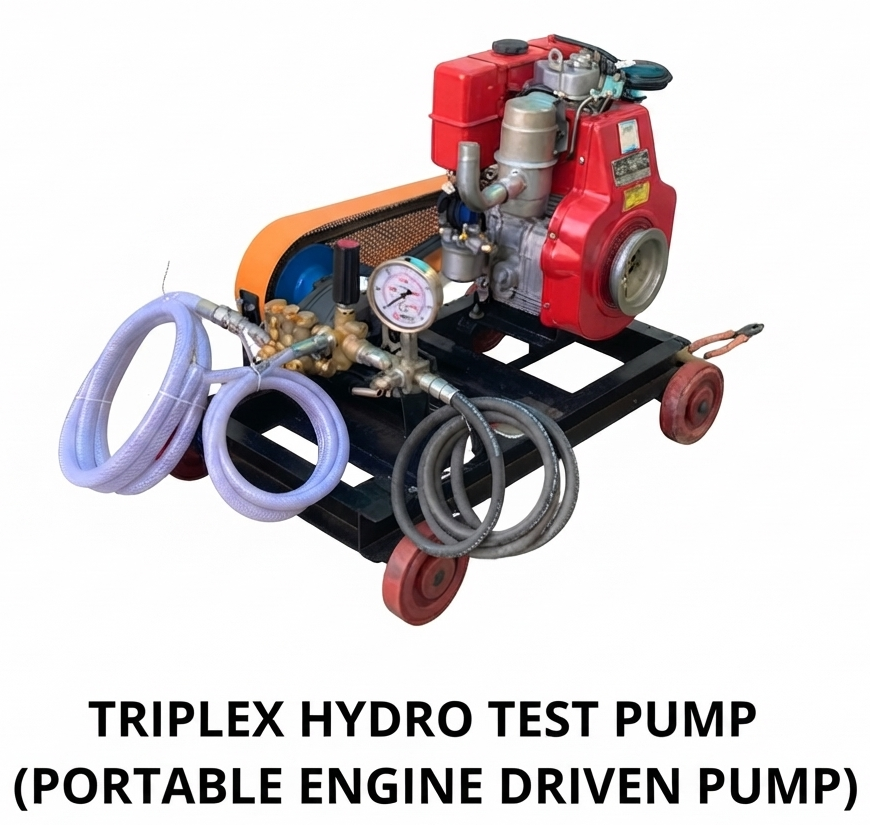

AMTJHP Triplex Plunger Pump
for High Pressure Applications
The AMTJHP Triplex Plunger Pump is designed for high-pressure applications where reliable and continuous fluid delivery is required.
These pumps are suitable for hydro testing and hydrostatic testing of boilers, pressure vessels, pipelines, gas cylinders, tubes, valve bodies and various industrial components.
The pump can also be used for high-pressure jetting and cleaning applications. Its triplex plunger configuration provides consistent flow and reliable operation.
AMTJHP pumps are available in different flow and pressure combinations to meet specific industrial application requirements.
High Pressure
Triplex Plunger Pump
- Up to 500 Bar pressure
- Up to 7250 PSI
- Up to 170 LPM flow
- Electric motor or engine driven
- Heavy duty gearbox
- Self oiling system
- Adjustable pressure regulator
- Trolley mounted unit
Reliable Pump for
High Pressure Applications
AMTJHP Triplex Plunger Pumps are designed for demanding industrial pressure testing, hydro testing, jetting and cleaning applications.
Hydro Testing of Boilers
Pressure Vessel Testing
Pipeline Hydro Testing
Gas Cylinder Testing
Pipe & Tube Testing
Valve Body Testing
High Pressure Jet Cleaning
Industrial Pressure Testing
BAR
HIGH PRESSURE
Triplex plunger pump designed for demanding high-pressure testing and industrial applications.
AMTJHP Standard Accessories
Specified components and accessories supplied for reliable high-pressure pump operation.
Pressure Release Cock
S.S. 304 needle type pressure release cock.
Brass Pump Head
Pump head manufactured from brass material.
Die Cast Aluminium Body
Pump body manufactured from die cast aluminium material with powder coated finish.
High Pressure Hose
High pressure rubber discharge hose with attachment.
Pressure Gauge
Glycerin filled pressure gauge with stainless steel construction.
Stainless Steel NRV
Discharge valve / NRV manufactured from Stainless Steel 304.
Ceramic Plunger
Pump plunger manufactured from ceramic material.
Pump Trolley
Mild Steel pump stand and trolley with wheels.
Heavy Duty Materials for
AMTJHP Construction
AMTJHP Triplex Plunger Pumps are designed with selected materials suitable for high-pressure industrial applications.
Depending on the component, materials include Stainless Steel 304, Stainless Steel 316, brass, forged brass, ceramic, alloy steel and cast iron.
The pump assembly is designed for reliable, continuous and efficient operation in demanding industrial environments.
Pump Material
Construction
- Stainless Steel 304 components
- Stainless Steel 316 components
- Brass pump head
- Forged brass unloaded valve
- Ceramic pump plunger
- Alloy steel connecting rod
- Graded cast iron coupling
- Mild Steel pump trolley
Benefits of AMTJHP Triplex Plunger Pump
Designed for dependable operation in high-pressure industrial testing and cleaning applications.
High Pressure
Suitable for high-pressure hydro testing and industrial pressure applications.
Reliable Performance
Designed for dependable and continuous industrial pump operation.
Wide Flow Range
Multiple models provide different flow and pressure combinations.
Heavy Duty Design
Heavy duty construction for demanding industrial applications.
Low Maintenance
Designed for reliable operation and practical maintenance requirements.
Industrial Applications
Suitable for testing, jetting and high-pressure cleaning applications.
Adjustable Pressure
Adjustable pressure regulator provides controlled pump operation.
Trolley Mounted
Trolley mounted construction makes the pump unit practical for industrial use.
Need a High Pressure Triplex Plunger Pump?
Contact Ambica Machine Tools for product details, technical specifications and enquiries for AMTJHP Triplex Plunger Pumps.
