AMTTPP

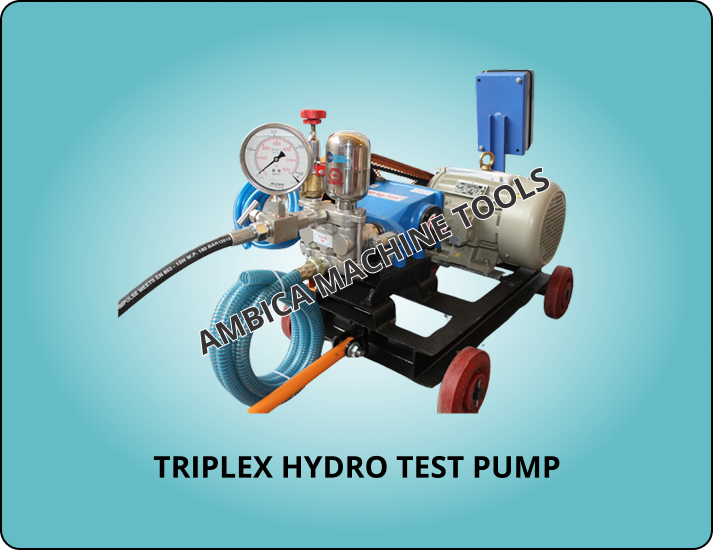

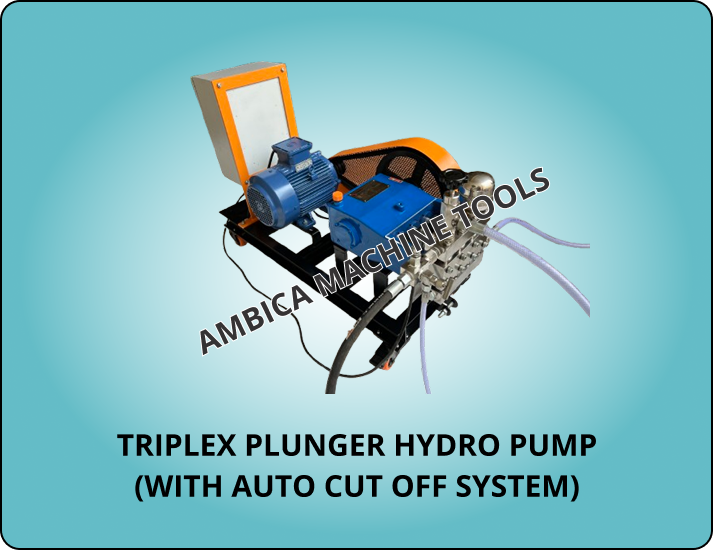

Hydro Testing / Jetting Pump
Triplex plunger pumps are low maintenance solutions for high pressure applications such as hydro testing, car washes and jetting applications.
These pumps are excellent for testing leakage and integrity of boilers, pressure vessels, metal casting, gas cylinders, pipes, tubes and valve bodies.
Pumps are supplied with different metals like brass, forged stainless steel 304, stainless steel 316, duplex steel, nickel bronze, aluminium bronze and other materials as required.
AMTTPP Triplex Plunger Pump Specifications
Technical specifications, construction details and operating information of the AMTTPP Triplex Plunger Pump.
| Model | AMTTPP Series |
|---|---|
| Pump Type | Triplex Plunger Pump |
| Application | Hydro Testing, Jetting, Car Washes, Pressure Testing & Cleaning |
| Maximum Pressure | Up to 140 kg/cm² |
| Maximum Flow | Up to 50 LPM |
| Maximum Motor / Engine | Up to 10 HP |
| Maximum Pump RPM | Up to 750 RPM |
| Drive System | Electric Motor or Engine Driven |
| Construction | Heavy Duty Construction |
| Fluid End | Stainless Steel / SS 304 Construction |
| Lubrication | Self Oiling System |
| Pressure Control | Adjustable Pressure Regulator |
| Mounting | Trolley Mounted Pump Unit |
AMTTPP Triplex Plunger Pump Model Range
Model-wise pressure, flow, RPM, motor and construction specifications for AMTTPP Triplex Plunger Pumps.
| Specification | AMTTPP-18/20 | AMTTPP-35/35 | AMTTPP-50/50 | AMTTPP-100/20 | AMTTPP-140/20 |
|---|---|---|---|---|---|
| No. of Piston | 2 | 3 | 3 | 3 | 3 |
| Max. Pressure | 284 PSI (20KG.) | 500 PSI (35KG.) | 711 PSI (50KG.) | 1422 PSI (100KG.) | 2000 PSI (140KG) |
| Pump RPM | 600 | 450 | 600 | 600 | 600 |
| Suction Capacity (LPM) | 15 | 35 | 50 | 20 | 20 |
| Electric Motor | 2 H.P. (1440 RPM) | 3 H.P. (1440 RPM) | 5 H.P. (1440 RPM) | 7.5 H.P. (1440 RPM) | 10 H.P. (1440 RPM) |
| V-Belt Size | B-34 | A-40 | A-42 | B-20 | B-20 |
| Weight | 15KG. | 20KG. | 25KG. | 60KG. | 60KG. |
| Main Body | Aluminum | Aluminum | Aluminum | C.I. | C.I. |
| Head | SS 304 | SS 304 | SS 304 | SS 304 | SS 304 |
| Piston | SS 304 | SS 304 | SS 304 | SS 304 | SS 304 |
| Stroke Length | 20 | 20 | 30 | 25 | 25 |
| Piston Diameter | 18 | 20 | 20 | 25 | 25 |
AMTTPP Performance Range
Available performance range for AMTTPP Triplex Plunger Pump applications.
Up to 140 KG/cm²
Maximum pressure up to 140 kg/cm² depending on the selected model.
Up to 2000 PSI
High pressure operation for hydro testing and jetting applications.
Up to 50 LPM
Maximum flow capacity up to 50 LPM according to the selected model.
Up to 10 HP
Maximum motor or engine power up to 10 HP.
Up to 750 RPM
Maximum pump RPM up to 750 depending on pump configuration.
AMTTPP Triplex Plunger Pump Features

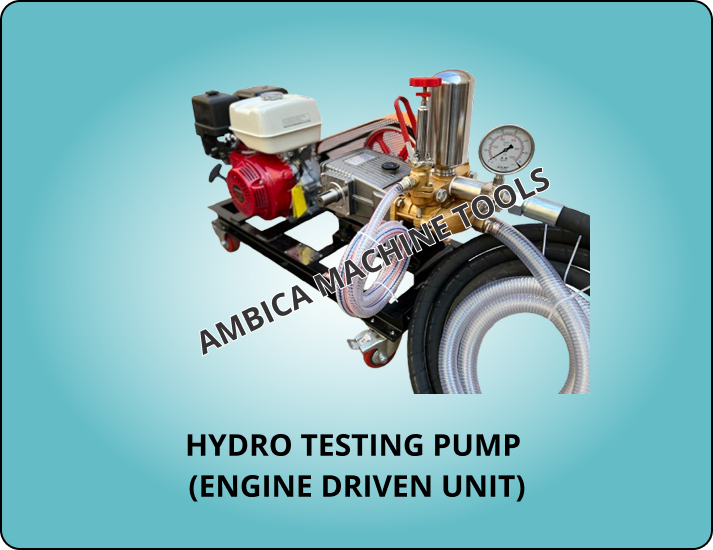

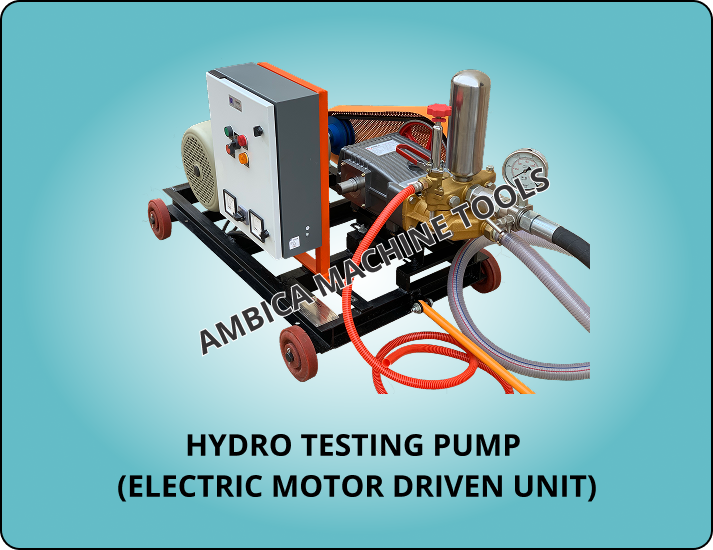

Electric / Engine Driven
Electric motor or engine driven system for different industrial applications.
Heavy Duty Construction
Heavy duty construction with practical and lightweight pump design.
Stainless Steel Fluid End
Stainless steel fluid end construction CF8 with SS 304 material.
Full Load Tested
Pump units are subjected to full load testing before supply.
Reliable Performance
Totally dependable, reliable and efficient performance.
Self Oiling System
Self oiling system with quick acting relief valve.
Pulley & Belt Drive
Pulley and belts drive system for dependable pump operation.
Adjustable Pressure
Adjustable pressure regulator for controlled high pressure operation.
Brass Unloader Valve
Brass unloader valve with inlet bypass system.
Trolley Mounted
Trolley mounted pump unit for convenient industrial handling.
Ceramic Coated Pistons
Pistons are ceramic coated for dependable high pressure operation.
State-of-the-Art Manufacturing
Manufactured on state-of-the-art machinery for consistent quality.
AMTTPP Triplex Plunger Pump
for Hydro Testing & Jetting
Triplex plunger pumps are suitable for high pressure hydro testing, jetting, cleaning and industrial pressure testing applications.
These pumps are used for testing leakage and integrity of boilers, pressure vessels, metal casting, gas cylinders, pipes, tubes and valve bodies.
The pumps are also suitable for railway workshops, cleaning yards, airports and shipyards.
Hydro Testing
& Jetting
- Boilers
- Pressure Vessels
- C.I. Mains Casting Parts
- Gas Cylinders
- Pipes & Tubes
- Pump & Valve Bodies
- Railway Workshops
- Airports & Shipyards
AMTTPP Standard Accessories
Components and accessories supplied with the pump for reliable high-pressure operation.
Pressure Release Cock
Pressure release cock made from brass metal.
Brass Pump Head
Pump head made from brass material.
Aluminium Crank Case
Crank case made from aluminium material.
Brass Unloader Valve
Pump unloader valve made from brass material.
High Pressure Hose
Discharge high pressure hose with attachment, length 3 meters.
Pressure Gauge
Stainless steel glycerin filled pressure gauge with 4 inch dial and calibration certificate.
Stainless Steel NRV
Discharge valve / NRV made from stainless steel material.
Pump Pulley
Pump pulley made from C.I. / Aluminium material.
Pressure Set Valve
Pressure set valve made from stainless steel material.
Ceramic Pump Plunger
Pump plunger made from ceramic material.
Pump Stand
Mild steel pump stand made from 3S 1½" C Channel.
Inlet Hose
3 meter inlet hose with stainless steel strainer.
Pump Trolley
Pump trolley with four wheels.
Motor Starter
Suitable electric motor starter supplied with pump such as C&S control panel / DOL starter.
AMTTPP Triplex Plunger Pump
The TRIPLEX PLUNGER PUMP (AMTTPP) is a high-performance, industrial-grade solution specifically designed to meet the demands of high-pressure applications.
As a leading TRIPLEX PLUNGER PUMP manufacturer in India , we offer this advanced pump for various industries that require efficient fluid transfer, including oil & gas, chemical processing, power generation, water treatment, and manufacturing.
The AMTTPP Triplex Plunger Pump ensures superior performance, featuring high efficiency, durability, and minimal maintenance needs.
With its triplex plunger design, this pump guarantees a steady and smooth flow, minimizing pulsation and reducing system stress.
High Pressure
Triplex Plunger Pump
- High pressure performance
- Triplex plunger design
- Heavy duty construction
- Low maintenance
- Reliable operation
- Multiple applications
Why Choose the AMTTPP Triplex Plunger Pump?
High-Pressure Performance
Engineered to manage high pressures while maintaining efficient pump operation.
Triplex Plunger Design
Three-plunger design helps provide smooth flow, reduced pulsation and reliable operation.
Heavy Duty Construction
Premium-quality materials provide dependable operation in demanding industrial environments.
Low Maintenance
Designed for practical maintenance and easy serviceability to reduce downtime.
AMTTPP Applications
Oil & Gas
High-pressure injection and fluid transfer applications.
Chemical Processing
Precision chemical dosing and fluid handling applications.
Manufacturing & Power Plants
High-pressure washing and industrial fluid transfer.
Hydrostatic Testing
Pressure testing of pipelines, valves and vessels.
AMTTPP Technical Information
Specifications can be customized based on your requirements. Contact us for more details.
Flow Rate
High-capacity output for efficient fluid transfer.
Pressure Rating
Designed for high-pressure industrial applications.
Material Options
Available in stainless steel, alloy steel and other corrosion-resistant materials.
Seal System
Advanced sealing technology to prevent leaks and enhance pump longevity.
Benefits of AMTTPP Triplex Plunger Pump
Designed for reliable performance in demanding industrial high-pressure applications.
High Efficiency
Efficient fluid transfer for demanding industrial applications.
Durable Construction
Heavy-duty construction designed for long-term industrial operation.
Minimal Maintenance
Designed for practical maintenance and dependable operation.
Smooth Flow
Triplex plunger design provides steady and smooth fluid flow.
Reliable AMTTPP Pump for Industrial Applications
As a trusted TRIPLEX PLUNGER PUMP (AMTTPP) manufacturer and supplier in India , our AMTTPP Triplex Plunger Pump is designed for efficiency, durability and dependable performance.
Whether the requirement is for routine industrial use or demanding high-pressure operations, AMTTPP provides a practical solution for fluid transfer, testing, cleaning and jetting applications.
Looking for a reliable TRIPLEX PLUNGER PUMP (AMTTPP) ? Contact us today for expert recommendations, pricing and customization options.
High Pressure
Pump Solution
- Hydro Testing
- Pressure Testing
- High Pressure Cleaning
- Jetting Applications
- Industrial Fluid Transfer
Need a High Pressure Triplex Plunger Pump?
Contact Ambica Machine Tools for product details, technical specifications, pricing and enquiries for AMTTPP Triplex Plunger Pumps.
