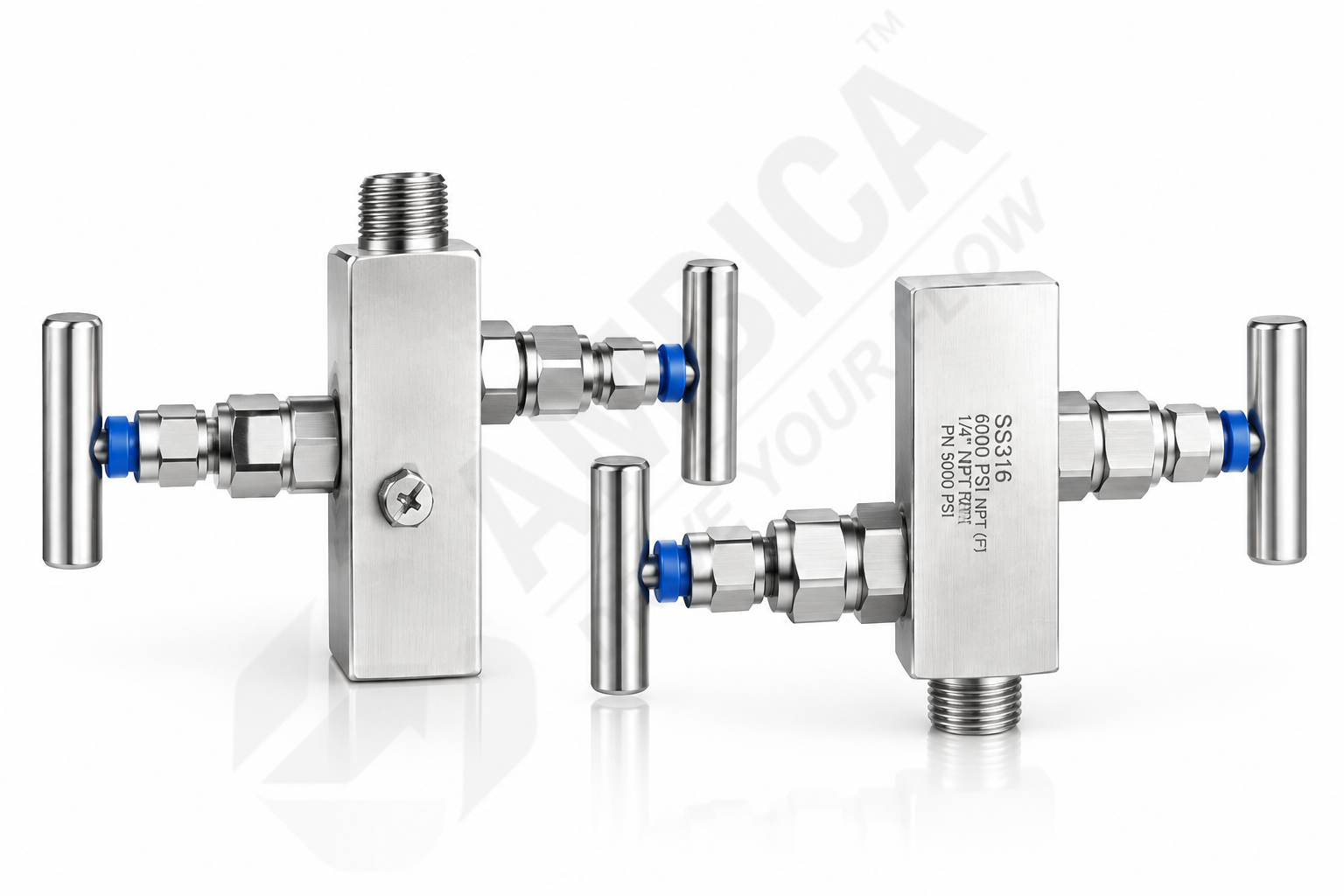

Gauge Root Valves Manufacturer & Supplier in India & Worldwide
Gauge Root Valve Up to 6000 kg/cm²
Gauge Root Valves are precision-engineered for safe isolation of pressure gauges and transmitters in high-pressure piping and instrumentation systems.
Manufactured using SS 304, SS 316 and Carbon Steel, these valves provide reliable shut-off, smooth operation and dependable performance in demanding industrial environments.
Gauge Root Valves Technical Specifications
| Standard Size | 1/2" NPT / BSP |
|---|---|
| Pressure Rating | Up to 6000 kg/cm² |
| Temperature Rating | Up to 120°C |
| Material | SS 304, SS 316, Carbon Steel & Other Materials on Request |
| Valve Type | Gauge Root Valve |
| Connection | NPT / BSP |
| Testing | 100% Pressure & Hydrostatic Testing |
| Application | Pressure Gauges, Transmitters, High Pressure Instrumentation & Process Piping |
High Pressure Gauge Root Valves
Gauge Root Valves provide a reliable isolation point between high-pressure piping systems and pressure measurement instruments. They allow pressure gauges and transmitters to be safely isolated during inspection, calibration and maintenance.
Industrial Pump and Valve manufactures Gauge Root Valves using high-quality SS 304, SS 316 and Carbon Steel to provide strength, corrosion resistance and reliable performance under demanding industrial conditions.
Available with 1/2" NPT or BSP connections, these valves are suitable for instrumentation and high-pressure process applications.
High Pressure Instrument Isolation
- Reliable gauge isolation
- Bubble-tight shut-off
- High-pressure construction
- SS304, SS316 & Carbon Steel options
- Suitable for industrial instrumentation
Gauge Root Valve Applications
Gauge Root Valves are widely used wherever pressure gauges and transmitters need safe and reliable isolation from high-pressure process lines.
- Pressure Gauge Isolation
- Pressure Transmitter Installation
- High Pressure Piping Systems
- Process Instrumentation
- Oil & Gas Applications
- Chemical & Petrochemical Plants
KG/CM²
Maximum Pressure Rating
Features of Gauge Root Valves
High Pressure Rating
Designed for high-pressure instrumentation systems with pressure capability up to 6000 kg/cm².
Reliable Isolation
Provides dependable isolation of pressure gauges and transmitters during maintenance and calibration.
Multiple Materials
Available in SS 304, SS 316 and Carbon Steel for different industrial operating environments.
Precision Construction
Precision-engineered valve components provide smooth operation and dependable shut-off performance.
Standard Connections
Available with 1/2" NPT and BSP connections for convenient installation with instrumentation systems.
Hydrostatic Testing
Valves are pressure and hydrostatically tested to ensure dependable performance and structural integrity.
Benefits of Gauge Root Valves
Safe Instrument Isolation
Allows pressure instruments to be isolated safely from high-pressure process lines.
Leak-Tight Shut-Off
Precision valve construction supports reliable shut-off during maintenance and calibration.
Long Service Life
Robust construction and corrosion-resistant material options support extended service life.
Easy Maintenance
Provides convenient isolation of gauges and transmitters for inspection and servicing.
Industrial Reliability
Suitable for demanding high-pressure industrial and instrumentation applications.
Material Flexibility
SS304, SS316 and Carbon Steel options are available based on application requirements.
Gauge Root Valve Construction Materials
Gauge Root Valves are manufactured using carefully selected materials to provide strength, corrosion resistance and reliable operation in industrial environments.
Depending on the application and process conditions, valves can be supplied in stainless steel or carbon steel construction.
Available Materials
- SS 304
- SS 316
- Carbon Steel
- Other materials on request
Gauge Root Valve Performance
Gauge Root Valves are designed to provide dependable isolation in high-pressure instrumentation systems. Their robust construction supports reliable operation during pressure measurement, calibration and maintenance.
Each valve is pressure and hydrostatically tested to help ensure structural integrity and dependable service in demanding applications.
Operating Temperature
- Pressure up to 6000 kg/cm²
- Temperature up to 120°C
- 1/2" NPT / BSP connection
- 100% pressure tested
Gauge Root Valve Construction
Robust Valve Body
Strong valve body construction designed for demanding high-pressure applications.
Precision Needle & Seat
Precision-machined internal components provide controlled flow and dependable shut-off.
High Pressure Design
Engineered to withstand high-pressure instrumentation service conditions.
Corrosion Resistant
Stainless steel material options provide excellent resistance in demanding industrial environments.
Gauge Root Valve Specifications at a Glance
Our Gauge Root Valves are suitable for pressure gauge and transmitter isolation in high-pressure industrial systems. Standard 1/2" NPT and BSP connections allow easy integration with common instrumentation arrangements.
Material and configuration options can also be supplied according to specific application requirements.
Standard Gauge Root Valve
- NPT / BSP connection
- Up to 6000 kg/cm²
- Up to 120°C
- SS304 / SS316 / CS
- Pressure & hydrostatic testing
Need a Reliable Gauge Root Valve?
Contact Industrial Pump and Valve for Gauge Root Valves designed for reliable pressure gauge and transmitter isolation in high-pressure industrial applications.
Why Choose Our Gauge Root Valves?
20+ Years of Experience
With over two decades in high-pressure instrumentation, we have perfected the design and manufacturing of Gauge Root Valves to meet exacting safety and performance standards.
Multiple Product Range
Our catalog features a wide range of Gauge Root Valves designed for different pressures, sizes, and connection types, providing a complete solution for safe and reliable instrument isolation in industrial systems.
Trusted by Worldwide Clients
We have earned the trust of global engineers by delivering consistent quality and reliable performance in oil, gas, and power sector projects.
CE & ISO Certified
Our production facility follows international quality management systems, guaranteeing that every Gauge Root Valve is manufactured to world-class safety standards.
Superior Quality & QC Practised at All Levels
Every valve undergoes 100% hydrostatic and pressure testing before dispatch, ensuring that our clients receive only defect-free, high-performance components.
Used in Critical Applications
Our Gauge Root Valves are used in critical industrial systems to safely isolate pressure gauges and transmitters, ensuring accurate readings and reliable operation under high pressure.
Applications of Our Gauge Root Valves
Gauge Root Valves are important for safely mounting pressure gauges and transmitters in high-pressure systems. They protect instruments from process line pressure, allow safe calibration, and ensure accurate readings. Widely used across oil & gas, chemical, power, and water treatment industries, they are built to handle pressures up to 6000 kg/cm² and resist corrosion in harsh industrial environments.
Oil & Gas Refineries
Installed on high-pressure pipelines to isolate gauges and transmitters, ensuring safe and reliable operation.
Hydraulic Systems
Used in heavy-duty hydraulic machinery to protect instruments from high-pressure surges and maintain stable readings.
Chemical Processing
Fitted on lines carrying corrosive or hazardous fluids to safeguard instruments and maintain accurate measurements.
Power Generation
Applied in steam and water lines to monitor turbine and boiler pressure safely.
Water Treatment
Used in high-pressure desalination and filtration systems to protect gauges and flow meters from damage.
Petrochemical Plants
Facilitates safe calibration of transmitters without shutting down the process line, reducing downtime and ensuring accuracy.
