Industrial Valve Manufacturer in Ahmedabad, India
Industrial Pump and Valve by Ambica Machine Tools is a CE and ISO 9001:2015 certified industrial valve manufacturer in Ahmedabad. From our in-house production facility at Kathwada, Ahmedabad, we have manufactured and supplied high-pressure valves, instrumentation valves, and fittings rated up to 50,000 PSI to clients across India and 25+ countries since 2006.
Our range covers precision-engineered high-pressure ball valves, needle valves, manifold valves, gauge valves, non-return valves, and instrumentation valves and fittings. Every valve is machined, assembled, and 100% hydrostatically tested at our Ahmedabad plant before dispatch. Trusted by 10,000+ clients including ISRO, Indian Oil, Reliance Industries, L&T, and BASF, we serve OEMs, EPC contractors, and plant operators across chemical, oil and gas, pharmaceutical, and process industries.
Contact UsIndustrial Valve Range Manufactured in Ahmedabad
High Pressure Ball Valve
| Size |
1/4″ to 2″ |
|---|---|
| End Connection |
S/E, S/W, F/E, B/E & T/E |
| MOC |
SS 316, SS 316 L, SS 304, Carbon Steel, Duplex |
| Packing |
PTFE / PEEK / POM |
| Pressure Range |
Up to 14500 PSI (1000 bar) |
| SUITABLE FOR DRUM |
55 GALLON (220 LTR.) |
| Temperature Range |
-4° to 176°F at full pressure |

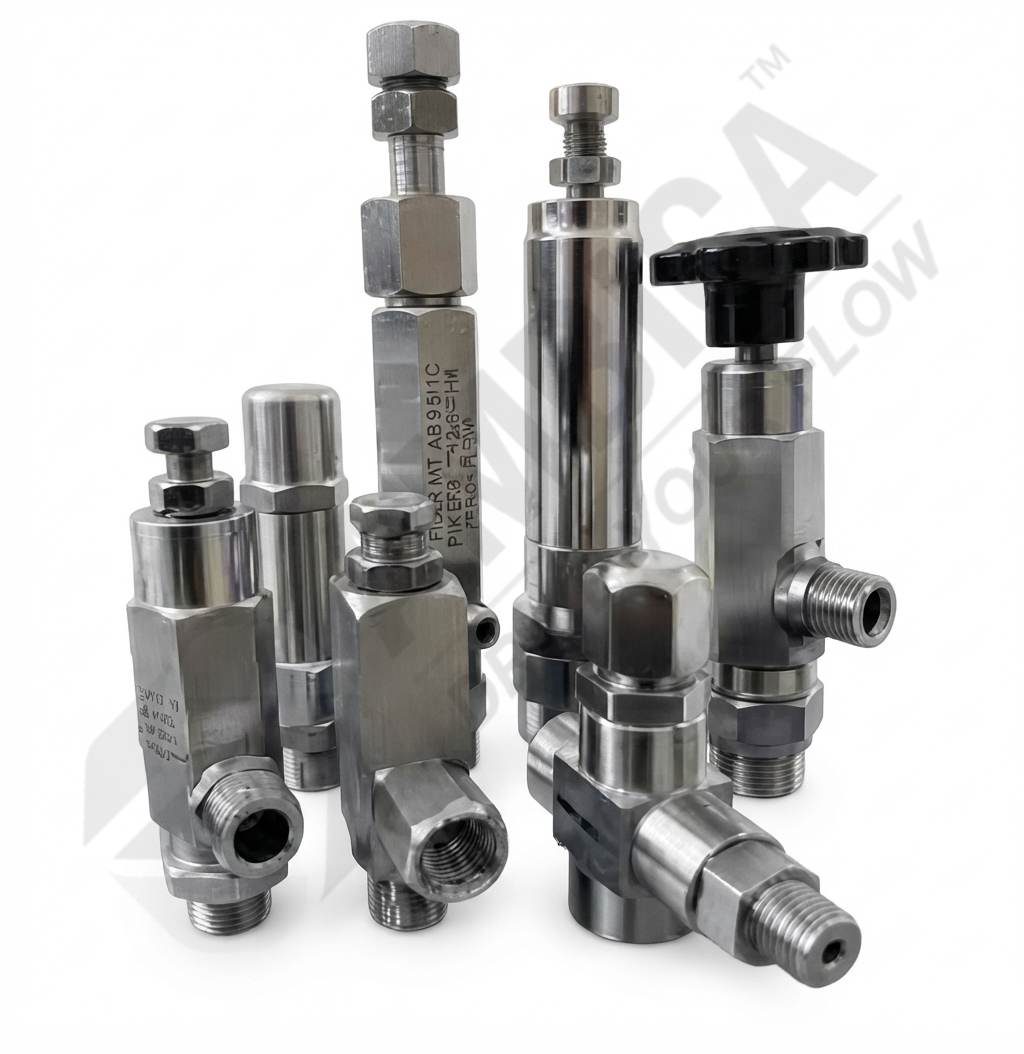

High Pressure Needle/Pressure Relief Valve
| Size |
1/4″ to 2″ |
|---|---|
| End Connection |
S/E, S/W, F/F, M/F & B/E & As per your requirement |
| MOC |
SS 316, SS316L, SS 304, Carbon & As per your requirement |
| Packing |
PTFE / Filler PTFE |
| Pressure Range |
Up to 14500 PSI (1000 bar) |
| Temperature Range |
-4° to 176°F at full pressure |

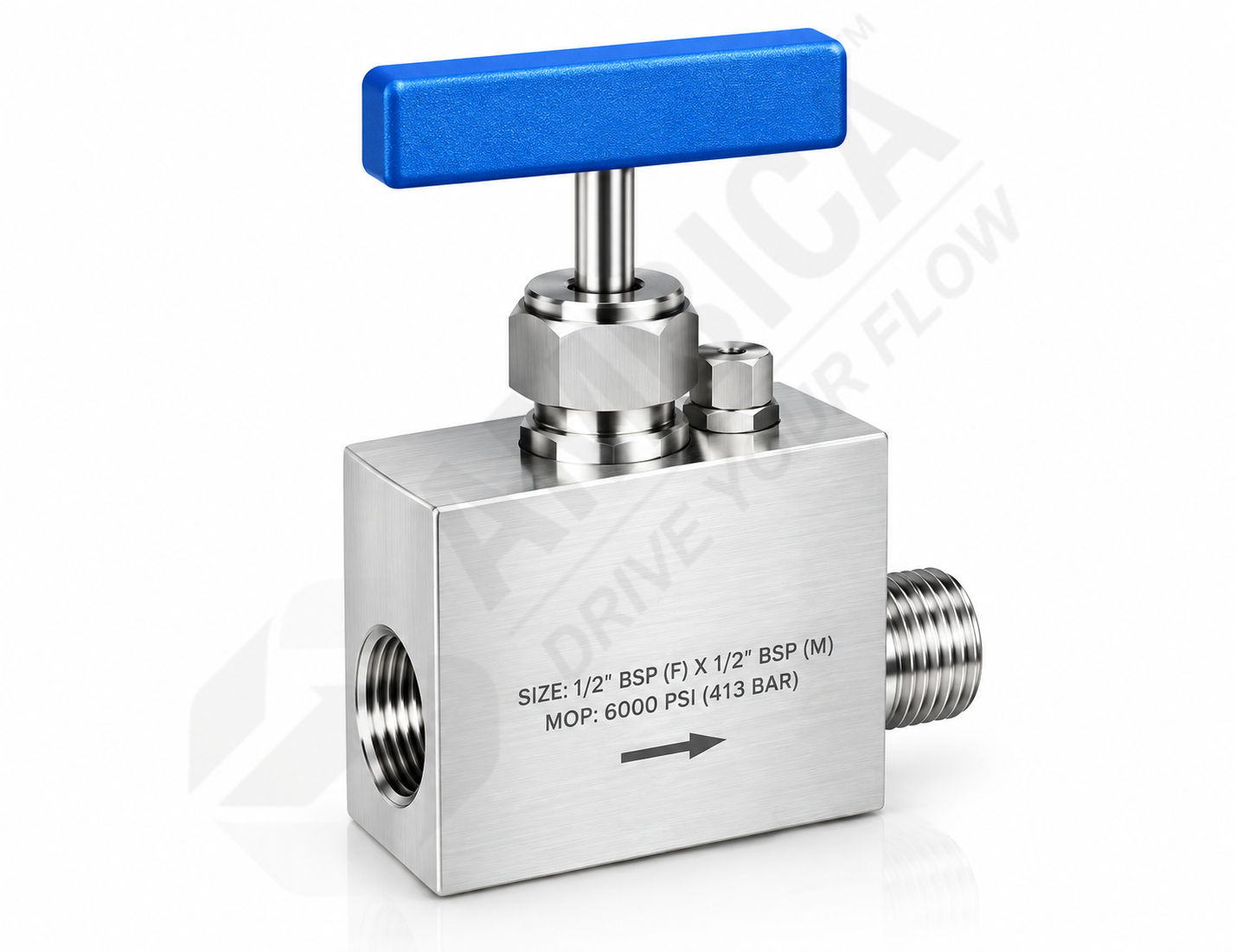

High Pressure Needle Valve
| Size |
1/8″ to 1/2″ |
|---|---|
| End Connection |
F/F, M/F & As per your requirement |
| MOC |
SS 316, SS 304, Carbon & As per your requirement |
| Packing |
PTFE / Filler PTFE |
| Pressure Range |
Up to 50000 PSI (3500 bar) |
| Temperature Range |
-4° to 176°F at full pressure |
High Pressure Tube End Needle Valve
| Size |
1/4″ to 1″ & 6mm to 25mm |
|---|---|
| End Connection |
S/E, S/W, F/E & B/E |
| MOC |
SS 316, SS 316L, SS 304, Carbon Steel & As per your requirement |
| Packing |
PTFE / Filler PTFE |
| Pressure Range |
Up to 6000 PSI (400 bar) |
| Temperature Range |
-4° to 176°F at full pressure |
Multi Port Gauge Valves
| Size |
1/4″ to 1″ |
|---|---|
| End Connection |
S/E |
| MOC |
SS 316, SS 316 L, SS 304, & As per your requirement |
| Packing |
PTFE / Filler PTFE |
| Pressure Range |
Up to 10000 PSI (700 bar) |
| Temperature Range |
-4° to 176°F at full pressure |
2 Way, 3 Way and 5 Way Valve Manifold Valve
| Inlet Connection |
1/2″ & 1/4″ |
|---|---|
| Outlet Connection |
1/2″ & 1/4″ |
| Vent Port |
1/2″ & 1/4″ |
| MOC |
SS 316L, SS 304, Carbon Steel & As per your requirement |
| Packing |
ViltonTM O-ring, TeflonTM and GrafoilTM |
| Pressure Range |
Up to 10000 PSI (700 bar) at 100°F 38°C |
Inline Check/Non Return Valve
| End Connection |
NPT, BSP, Tube End & As per your requirement |
|---|---|
| Tube End Size |
1/4″ to 1″ or 6mm to 25mm |
| Screwed |
1/4″ to 2″ |
| MOC |
SS 316, SS 316, SS 304, Carbon Steel & As per your requirement |
| Packing |
ViltonTM O-ring, TeflonTM |
| Pressure Range |
Up to 10000 PSI (800 bar) at 100°F 38°C |
Pressure Snubbers
| End Connection |
NPT, BSP, & BSPT & As per your requirement |
|---|---|
| Screwed |
1/4″ to 1″ |
| MOC |
SS 316, SS 316L, SS 304, Carbon Steel & As per your requirement |
| Packing |
ViltonTM O-ring, TeflonTM |
| Pressure Range |
Up to 14500 PSI (1000 bar) at 100°F 38°C |
Bleed Valve
| End Connection |
NPT, BSP, BSPT & As per your requirement |
|---|---|
| Screwed |
1/4″ to 1″ |
| MOC |
SS 316, SS 316 L, SS 304, Carbon Steel & As per your requirement |
| Packing |
ViltonTM O-ring & TeflonTM |
| Pressure Range |
Up to 10000 PSI (700 bar) |
Forged Fittings
| End Connection |
NPT, BSP, Tube End & As per your requirement |
|---|---|
| Screwed |
1/4″ to 1″ |
| MOC |
SS 316, SS 316L, SS 304, Carbon Steel & As per your requirement |
| Pressure Range |
Up to 14500 PSI (1000 bar) |
I C Ball Valve
| End Connection |
Tube end |
|---|---|
| Size |
1/8″ to 1″ |
| MOC |
SS, CS & As per your requirement |
| Pressure Range |
Up to 6000 PSI at 1200°F |
Instrumentation Ball Valve
| End Connection |
Screwed, Socket Weld, Butt Weld, Flanged |
|---|---|
| Size |
1/2″ to 4″ |
| MOC |
CF8, CF8M, WCB |
| Packing |
PTFE & Filler PTFE |
| Pressure Range |
Up to 1500 Class at 14°F to 210°F |
Syphon
| Size |
1/4″ to 1/2″Pipe, SCH40, SCH80, SCH120 |
|---|---|
| Material |
SS 304 / SS 316 / CS |
| Temperature |
S/W, Screwed (NPT/BSP) Male/Female, Swivel Type |
| Testing |
Q Type, O Type, Plate U Type, Straight U Type |
Gauge Root Valves
| Size |
1/2″ NPT/BSP |
|---|---|
| Nominal Pressure |
0 to 6000 kg/cm2 |
| Temperature |
Up to 120 Degree Celsius |
| Material |
SS 304 / SS 316 / CS Other Material Available on Request |
| Testing |
100% Pressure / Hydrostatically Tested |
Gauge Cock Valves
| Size |
1/4″ to 1/2″ |
|---|---|
| Type |
2 Way, 3 Way |
| End Connections |
NPT/BSP/BSPT |
| Material |
SS 304/SS 316/SS 316L/CS PTFE |
Hydraulic Ball Valves
| Size |
1/16″ OD to 2″ OD, 2 mm OD to 50 mm OD |
|---|---|
| End Connections |
Female Screwed End (NP, BSP, BSPT)/ Flanged End (Standard Screwed End BSP Female)/Pipe OD Ermeto Connection |
| Material |
SS 304/SS 316 / SS 316L – Brass / CS |
| Seat |
Up to 500 Bar |
| Maximum Working Pressure |
6000 PSI |
Hydraulic Tube Fitting
| Size |
1/8 to 2″ |
|---|---|
| End Connections |
NPT/BSP / BSPT / UNF / ISO/SAE |
| Material |
SS 304/SS 316 / SS 316L – Brass / CS |
| Seat |
PTFE |
| Maximum Working Pressure |
6000 PSI |
Hydraulic Pipe Fitting
| Size |
1/16″ OD to 2″ OD, 2 mm OD to 50 mm OD |
|---|---|
| End Connections |
NPT/BSP/BSPT/UNF / ISO / SAE |
| Material |
SS 304/SS 316 / SS 316L Brass/CS |
| Seat |
PTFE |
| Maximum Working Pressure |
6000 PSI |
Q.R.C.- Quick Release Coupling
| Size |
1/4″ to 3″ |
|---|---|
| Type |
Single Check, Double Check |
| End Connections |
NPT/BSP / Hose |
| Material |
SS 304/SS 316 / SS 316L/CS |
Why Choose Us as Your High Pressure Valve Supplier
Two decades of hands-on manufacturing experience delivering reliable high pressure valve solutions across industrial applications.
A comprehensive portfolio of over 80 high pressure valves and fittings covering diverse pressure ratings, materials, and configurations.
Trusted by more than 10,000 customers worldwide for consistent quality, dependable performance, and responsive support.
Manufactured in compliance with CE and ISO standards to meet global safety, quality, and regulatory requirements.
Stringent quality control processes implemented at every stage, from raw material inspection to final pressure testing.
Preferred high pressure valve supplier to leading industrial and OEM clients across multiple sectors.
Quality Assurance and Certifications
Our Valuable Clients Choose Us as a High Pressure Valve Supplier in India
Industries We Serve as an Industrial Valve Manufacturer in India
Chemical
- Acid
- Caustic
- Solvent
- Paint
- Shear Sensitive
- Material
Automobile
- Oil
- Solvent
- Paint
- Waste Water
Food & Medicine
- Liquid Material
- Additive
- Condiment
- Powder
Machinery
- Oil
- Cutting fluid
- Quenching Oil
- Acetone
- Electroplate
- Liquid
- Liquid Waste
Paper Making
- Pulping
- Additive
- Liquid Waste
Oil & Gas
- Wellhead and flowline isolation
- Hydraulic power units
- Gas injection and metering skids
- Refinery instrumentation
Pharmaceutical
- Process skids
- Clean utility lines
- High pressure reactors
- WFI and solvent systems
What our Clients Say
We sourced high-pressure valves for our process plant in Gujarat from Industrial Pump and Valve, and the quality exceeded our expectations. The valves were well-finished, easy to install, and have been performing reliably under demanding operating conditions. The team was also very responsive throughout the procurement process.
Industrial Pump and Valve provided exactly what we needed for our industrial application. The valve quality is excellent, delivery was on time, and the technical support team helped us choose the right specifications. A dependable manufacturer that understands industrial requirements.
We've worked with several valve suppliers over the years, and they stand out for both product quality and professionalism. The high-pressure valves arrived as specified and have performed consistently in our operations. Very satisfied with the overall experience.
I was impressed by the build quality and attention to detail in these valves. Communication was clear from the initial inquiry through shipment, and the products met all our expectations. We would definitely consider them for future projects.
Finding a reliable supplier for high-pressure valves can be challenging, but Industrial Pump and Valve made the process smooth. The valves are robust, durable, and suitable for our industrial applications. Great service and excellent product quality.
FAQs
- Up to 6,000 PSI (Tube End Needle Valves, Hydraulic Ball Valves, Fittings)
- Up to 10,000 PSI (Multi Port Gauge Valves, Manifolds, Check Valves)
- Up to 14,500 PSI (1000 bar) (High Pressure Ball and Needle Valves)
- Up to 50,000 PSI (Specialized High Pressure Needle Valves)
