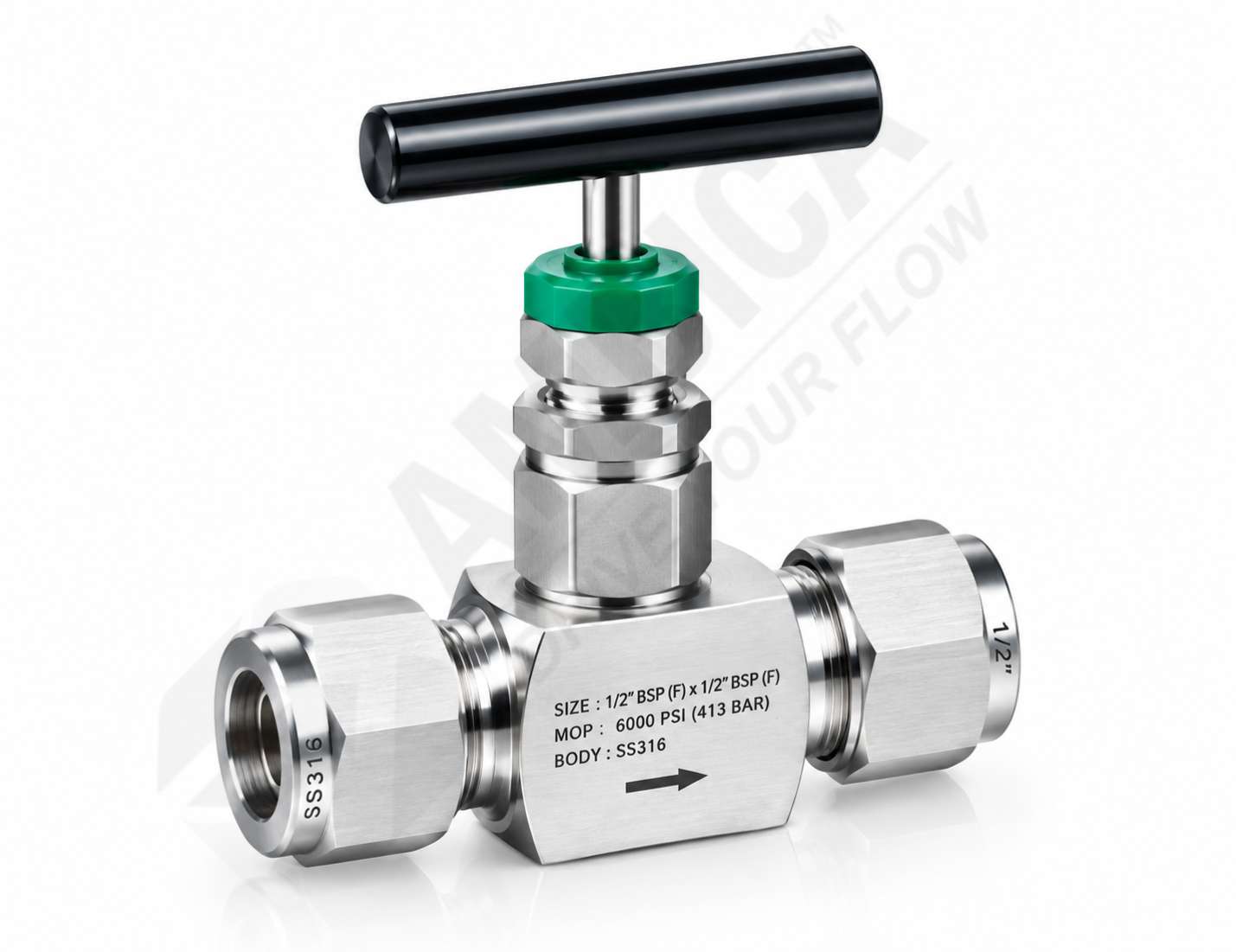

High Pressure Tube End Needle Valve
High Pressure Tube End Needle Valve Up to 6000 PSI
Our High Pressure Tube End Needle Valve is designed for accurate and controlled fluid flow in high-pressure tubing systems. The needle-type stem allows gradual opening and closing for precise flow adjustment and stable operation under pressure.
Available in sizes from 1/4" to 1" and 6mm to 25mm, with SS 316, SS 316L, SS 304 and Carbon Steel construction. These valves are suitable for instrumentation, hydraulic, chemical and testing applications where controlled flow and compact installation are required.
High Pressure Tube End Needle Valve Specifications
Technical specifications and performance details of our High Pressure Tube End Needle Valve for tubing, instrumentation and industrial flow control applications.
| Product | High Pressure Tube End Needle Valve |
|---|---|
| Size Range | 1/4" to 1" & 6mm to 25mm |
| Pressure Range | Up to 6000 PSI (400 Bar) |
| Temperature Range | -4°F to 176°F at Full Pressure |
| Material of Construction | SS 316, SS 316L, SS 304, Carbon Steel & As per Requirement |
| Packing Options | PTFE / Filler PTFE |
| End Connections | S/E, S/W, F/E & B/E |
| Valve Type | High Pressure Tube End Needle Valve |
| Maximum Pressure | 6000 PSI (400 Bar) |
| Application | Instrumentation, Hydraulic Systems, Chemical Applications, Testing Equipment, Tubing Systems and Industrial Process Lines |
High Pressure Tube End Needle Valve
The High Pressure Tube End Needle Valve is designed for controlled fluid flow in high-pressure tubing systems where accurate adjustment and stable operation are required.
The valve uses a needle-type stem that allows gradual opening and closing of the flow. This provides precise control during operation and helps maintain stable flow conditions.
Available sizes range from 1/4" to 1" and 6mm to 25mm, making the valve suitable for different tubing and instrumentation requirements.
Available M.O.C. options include SS 316, SS 316L, SS 304 and Carbon Steel.
Tube end connection options include S/E, S/W, F/E and B/E.
High Pressure Tube End Needle Valve
- ✓ Size range from 1/4" to 1"
- ✓ 6mm to 25mm tubing sizes
- ✓ Pressure rating up to 6000 PSI
- ✓ SS 316, SS 316L, SS 304 & Carbon Steel
- ✓ PTFE & Filler PTFE packing
- ✓ Multiple tube-end connection options
High Pressure Tube End Needle Valve Applications
High Pressure Tube End Needle Valves are suitable for applications where controlled flow, compact installation and reliable operation under pressure are required.
Instrumentation systems
Hydraulic tubing systems
Chemical applications
High pressure testing equipment
High pressure tubing systems
Industrial process systems
PSI
Maximum pressure rating
High Pressure Tube End Needle Valve Features
Controlled Flow
Needle-type stem allows gradual opening and closing for controlled and accurate flow adjustment.
High Pressure Rating
Designed for high pressure tubing systems with pressure ratings up to 6000 PSI (400 Bar).
Compact Design
Compact valve body allows installation in limited spaces and panel-mounted systems.
Wide Size Range
Available in sizes from 1/4" to 1" and 6mm to 25mm.
Multiple M.O.C. Options
Available in SS 316, SS 316L, SS 304 and Carbon Steel.
Reliable Sealing
PTFE and Filler PTFE packing options support reliable sealing and smooth operation.
Tube End Connections
Available with S/E, S/W, F/E and B/E connection configurations.
Industrial Applications
Suitable for instrumentation, hydraulic, chemical and testing applications.
Benefits of High Pressure Tube End Needle Valve
Designed for controlled flow, compact installation and reliable operation in high-pressure tubing systems.
Precise Flow Control
Provides gradual adjustment of fluid flow for controlled system operation.
Compact Installation
Compact design makes the valve suitable for limited-space tubing and instrumentation layouts.
High Pressure Capability
Suitable for applications requiring pressure ratings up to 6000 PSI.
Material Flexibility
Multiple M.O.C. options are available for different industrial requirements.
Connection Flexibility
Multiple tube-end connection options allow flexible system integration.
Wide Application Range
Suitable for instrumentation, hydraulic, chemical, testing and industrial systems.
Reliable Packing
PTFE and Filler PTFE packing options support reliable sealing performance.
Stable Operation
Designed for controlled and stable flow operation under pressure.
High Pressure Tube End Needle Valve M.O.C. Options
High Pressure Tube End Needle Valves are available in multiple Material of Construction (M.O.C.) options to suit different industrial and process applications.
Available materials include SS 316, SS 316L, SS 304 and Carbon Steel.
Material selection can be made according to the operating environment, fluid characteristics and application requirements.
The valves are available in sizes from 1/4" to 1" and 6mm to 25mm.
Available Materials
- ✓ Stainless Steel 316 (SS 316)
- ✓ Stainless Steel 316L (SS 316L)
- ✓ Stainless Steel 304 (SS 304)
- ✓ Carbon Steel
High Pressure Tube End Needle Valve Performance
The High Pressure Tube End Needle Valve is designed for controlled fluid flow in high-pressure tubing systems with pressure capability up to 6000 PSI (400 Bar).
The available size range includes 1/4" to 1" and 6mm to 25mm.
End connection options include S/E, S/W, F/E and B/E.
Packing options include PTFE and Filler PTFE.
The specified temperature range is -4°F to 176°F at full pressure.
Performance Data
- ✓ Up to 6000 PSI (400 Bar)
- ✓ 1/4" to 1" size range
- ✓ 6mm to 25mm tubing sizes
- ✓ -4°F to 176°F temperature range
- ✓ PTFE / Filler PTFE packing
- ✓ Multiple tube-end connections
High Pressure Tube End Needle Valve Connection Options
S/E
Screwed End connection option for suitable high pressure tubing applications.
S/W
Socket Weld connection option for suitable industrial tubing systems.
F/E
Female End connection option for compatible high pressure tubing installations.
B/E
Butt Weld End connection option for suitable permanent tubing installations.
Multiple Configurations
Multiple connection options provide flexibility for different tubing requirements.
High Pressure Tube End Needle Valve Packing
High Pressure Tube End Needle Valves are available with suitable packing options to support reliable sealing and smooth valve operation.
Available packing materials include PTFE and Filler PTFE.
Packing selection can be considered according to operating pressure, temperature, fluid and service requirements.
Available Packing
- ✓ PTFE
- ✓ Filler PTFE
Need a High Pressure Tube End Needle Valve?
Contact us for High Pressure Tube End Needle Valve requirements, size, M.O.C., pressure rating, packing and end connection options.
Why Choose Our High Pressure Tube End Needle Valves?
20+ Years of Experience
With more than two decades of experience, we manufacture high pressure tube end needle valves for industrial systems requiring controlled flow.
Multiple Product Range
High pressure tube end needle valves are available in different sizes, materials, and end connection options. This supports use in various tubing layouts and pressure conditions.
10,000+ Happy Clients
High pressure tube end needle valves are supplied to customers across India and international markets. These valves are used in industrial systems where controlled flow under high pressure is required.
CE & ISO Certified
High pressure tube end needle valves are manufactured under ISO-certified processes. Standard quality checks are followed during production and inspection.
Superior Quality & QC Practised at All Levels
Each valve is inspected for material accuracy, sealing condition, and pressure handling before dispatch. This helps maintain consistent performance in service.
Used in Critical Applications
These valves are used in applications where gradual flow control is required under high pressure. They are commonly installed in instrumentation and testing systems.
Applications of High Pressure Tube End Needle Valves
High pressure tube end needle valves are used in systems where controlled flow is required under high pressure conditions. These valves are commonly installed in industrial tubing and instrumentation lines.
Instrumentation and Control Lines
Used in pressure gauges, transmitters, and control panels to regulate flow. The valve helps protect instruments from sudden pressure changes.
Hydraulic and Pneumatic Systems
Installed in hydraulic and pneumatic lines to control flow rate. These valves support stable operation in high-pressure systems.
Chemical and Process Systems
Used in chemical handling and process lines where controlled fluid movement is required. Suitable for systems handling pressurised fluids.
Testing and Calibration Equipment
Applied in pressure testing and calibration setups to control flow during testing operations. Helps maintain stable pressure conditions.
Tubing and Sampling Lines
Used in tubing and sampling systems where compact size and controlled flow are required. Suitable for tight installation spaces.
