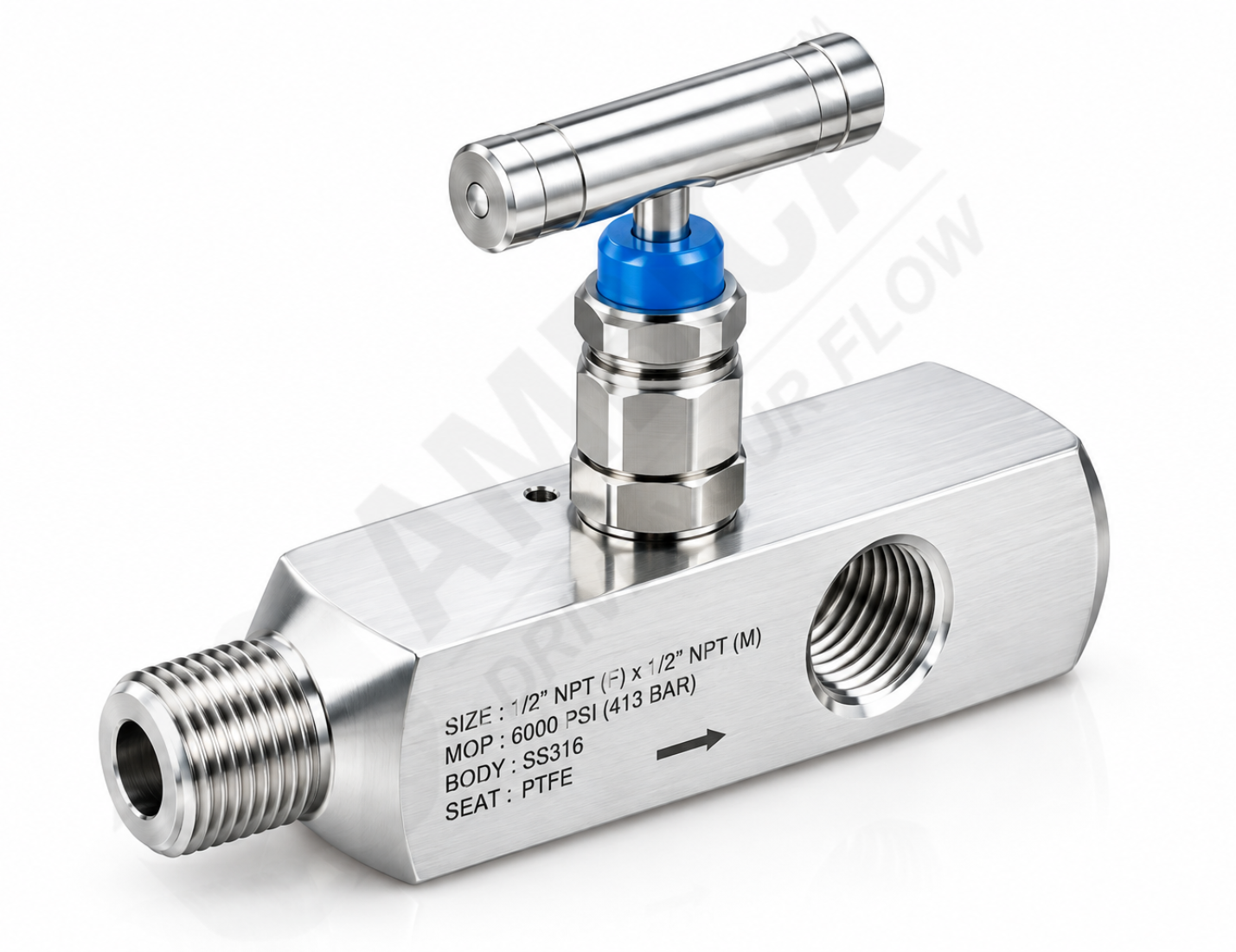

Multi Port Gauge Valve
Multi Port Gauge Valve Up to 10,000 PSI
Our Multi Port Gauge Valves are designed for high-pressure instrumentation systems where safe gauge isolation, pressure control and reliable sealing are required. These valves help control the flow between process lines and pressure measuring instruments.
Available in sizes from 1/4" to 1" with SS 316, SS 316L and SS 304 construction. With pressure ratings up to 10,000 PSI (700 Bar), these valves are suitable for oil & gas, pressure testing and industrial process instrumentation applications.
Multi Port Gauge Valve Specifications
Technical specifications and performance details of our Multi Port Gauge Valves for high-pressure instrumentation and industrial pressure monitoring applications.
| Product | Multi Port Gauge Valve |
|---|---|
| Size Range | 1/4" to 1" |
| Pressure Range | Up to 10,000 PSI (700 Bar) |
| Temperature Range | -4°F to 176°F at Full Pressure |
| Material of Construction | SS 316, SS 316L, SS 304 & As Per Requirement |
| Packing Options | PTFE / Filler PTFE |
| End Connection | S/E |
| Valve Type | Multi Port Gauge Valve |
| Maximum Pressure | 10,000 PSI (700 Bar) |
| Application | Pressure Gauge Isolation, Instrumentation Systems, Pressure Testing, Oil & Gas and Industrial Process Systems |
Multi Port Gauge Valve
The Multi Port Gauge Valve is designed for high-pressure instrumentation systems where pressure gauge isolation, pressure control and reliable sealing are required.
These valves control the flow between process lines and pressure measuring instruments, allowing safe isolation of gauges during inspection, calibration and maintenance.
Available sizes range from 1/4" to 1" with pressure ratings up to 10,000 PSI (700 Bar).
Available M.O.C. options include SS 316, SS 316L and SS 304.
The compact valve body is suitable for instrumentation panels and space-restricted piping layouts.
Multi Port Gauge Valve
- ✓ Size range from 1/4" to 1"
- ✓ Pressure rating up to 10,000 PSI
- ✓ SS 316, SS 316L & SS 304
- ✓ PTFE & Filler PTFE packing
- ✓ S/E end connection
- ✓ Suitable for pressure gauge isolation
Multi Port Gauge Valve Applications
Multi Port Gauge Valves are suitable for high-pressure instrumentation systems where pressure monitoring, gauge isolation and reliable pressure control are required.
Pressure gauge isolation
High-pressure instrumentation systems
Pressure testing equipment
Oil & gas applications
Industrial process systems
Instrumentation panels
PSI
Maximum pressure rating
Multi Port Gauge Valve Features
High Pressure Rating
Designed for high-pressure instrumentation systems with pressure ratings up to 10,000 PSI (700 Bar).
Gauge Isolation
Allows safe isolation of pressure gauges during inspection, calibration and replacement.
Compact Design
Compact valve body supports installation in instrumentation panels and space-restricted layouts.
Wide Size Range
Available in sizes ranging from 1/4" to 1" for different instrumentation requirements.
Multiple M.O.C. Options
Available in SS 316, SS 316L and SS 304 for different industrial applications.
Reliable Sealing
PTFE and Filler PTFE packing options support tight sealing and consistent operation.
S/E Connection
Screwed End connection configuration for suitable instrumentation installations.
Industrial Applications
Suitable for oil & gas, pressure testing, instrumentation and industrial process systems.
Benefits of Multi Port Gauge Valve
Designed for safe pressure gauge isolation, reliable pressure monitoring and compact installation in high-pressure instrumentation systems.
Safe Gauge Isolation
Allows pressure gauges to be isolated during maintenance, inspection and calibration.
Pressure Control
Helps manage pressure between process lines and pressure measuring instruments.
High Pressure Capability
Suitable for pressure applications up to 10,000 PSI (700 Bar).
Compact Installation
Compact design makes the valve suitable for space-restricted instrumentation layouts.
Material Flexibility
SS 316, SS 316L and SS 304 options are available for different service requirements.
Reliable Sealing
PTFE and Filler PTFE packing options support reliable sealing under pressure.
Easy Maintenance
Gauge isolation helps simplify inspection, calibration and replacement activities.
Wide Application Range
Suitable for oil & gas, testing, instrumentation and industrial processes.
Multi Port Gauge Valve M.O.C. Options
Multi Port Gauge Valves are available in multiple Material of Construction (M.O.C.) options for different industrial and instrumentation applications.
Available materials include SS 316, SS 316L and SS 304.
Material selection can be made according to the operating environment, fluid characteristics and application requirements.
The valves are available in sizes from 1/4" to 1" with pressure ratings up to 10,000 PSI (700 Bar).
Available Materials
- ✓ Stainless Steel 316 (SS 316)
- ✓ Stainless Steel 316L (SS 316L)
- ✓ Stainless Steel 304 (SS 304)
Multi Port Gauge Valve Performance
The Multi Port Gauge Valve is designed for high-pressure instrumentation applications with pressure capability up to 10,000 PSI (700 Bar).
The available size range is 1/4" to 1", making the valve suitable for different pressure monitoring systems.
The valve is supplied with S/E end connection.
Packing options include PTFE and Filler PTFE.
The specified temperature range is -4°F to 176°F at full pressure.
Performance Data
- ✓ Up to 10,000 PSI (700 Bar)
- ✓ 1/4" to 1" size range
- ✓ -4°F to 176°F temperature range
- ✓ PTFE / Filler PTFE packing
- ✓ S/E end connection
Multi Port Gauge Valve Connection
S/E
Screwed End connection configuration for suitable high-pressure instrumentation installations.
Compact Connection
The connection configuration supports compact installation in instrumentation systems.
Instrumentation Ready
Suitable for connection with compatible pressure measuring and instrumentation systems.
Multi Port Gauge Valve Packing
Multi Port Gauge Valves are available with suitable packing options to support reliable sealing and consistent operation under pressure.
Available packing materials include PTFE and Filler PTFE.
Packing selection can be considered according to operating pressure, temperature, fluid and service requirements.
Available Packing
- ✓ PTFE
- ✓ Filler PTFE
Need a High Pressure Multi Port Gauge Valve?
Contact us for Multi Port Gauge Valve requirements, size, M.O.C., pressure rating, packing and instrumentation application details.
Why Choose Our Multi Port Gauge Valves?
20+ Years of Experience
With more than two decades of experience, we manufacture multi port gauge valves for industrial systems where accurate pressure control and instrument safety are required.
High-Pressure Valve Capability
Our multi port gauge valves are designed to operate reliably in systems handling pressure up to 10,000 PSI.
Trusted by Industrial Clients Worldwide
Our multi port gauge valves are supplied to industrial customers across India and international markets for consistent performance in high-pressure systems.
CE & ISO Certified
Our multi port gauge valves are manufactured under ISO-certified manufacturing processes and undergo inspection before dispatch.
Superior Quality & QC Practised at All Levels
Each multi port gauge valve undergoes dimensional inspection, sealing verification, and pressure testing as per internal quality procedures before dispatch.
Used in Critical Applications
Installed in applications where pressure gauge protection is required to maintain accurate and stable readings.
Applications of Multi Port Gauge Valves
Multi port gauge valves are used in industrial systems where pressure instruments must be protected, isolated, and controlled during operation, testing, and maintenance. These valves help manage pressure safely while supporting accurate measurement in high-pressure environments.
Pressure Gauge Installation Lines
Installed between process pipelines and pressure gauges to allow controlled isolation and pressure release while protecting gauges from sudden pressure fluctuations.
Instrumentation and Control Systems
Used in instrumentation panels and skids to monitor pressure in pipelines and equipment, allowing isolation during inspection, calibration, or replacement work.
High-Pressure Testing Equipment
Applied in hydro and pressure testing setups where controlled pressure handling is required to support safe and accurate measurement during testing operations.
Oil & Gas Processing Systems
Used at pressure measurement points in upstream and downstream oil and gas systems to protect gauges under high operating pressure.
Chemical and Process Industries
Installed in systems handling pressurised fluids and gases where accurate pressure monitoring and safe gauge isolation are required during maintenance.
Our Valuable Clients
Countries We Serve
Quality and Manufacturing Standards
As the best industrial valves manufacturer in India, our multi port gauge valves are manufactured using verified raw materials and controlled machining processes. Each valve is inspected for sealing, pressure handling, and dimensional accuracy before dispatch.
Quality Assurance and Certifications
Industries We Serve
Chemical
- Acid
- Caustic
- Solvent
- Paint
- Shear Sensitive
- Material
Automobile
- Oil
- Solvent
- Paint
- Waste Wate
Food & Medicine
- Liquid Material
- Additive
- Condiment
- Powder
Machinery
- Oil
- Cutting fluid
- Quenching Oil
- Acetone
- Electroplate
- Liquid
- Liquid Waste
Paper Making
- Pulping
- Additive
- Liquid Waste
What Our Clients Say
We used these gauge valves in our pressure testing system. The build quality is good, and the valves handled pressure conditions as required during testing.
The gauge valves were installed in our high-pressure instrumentation line and have operated without leakage. Installation was straightforward, and performance has remained stable under pressure.
The valves were used for industrial pressure measurement applications. Performance has been consistent, and the sealing quality met our operating requirements.
