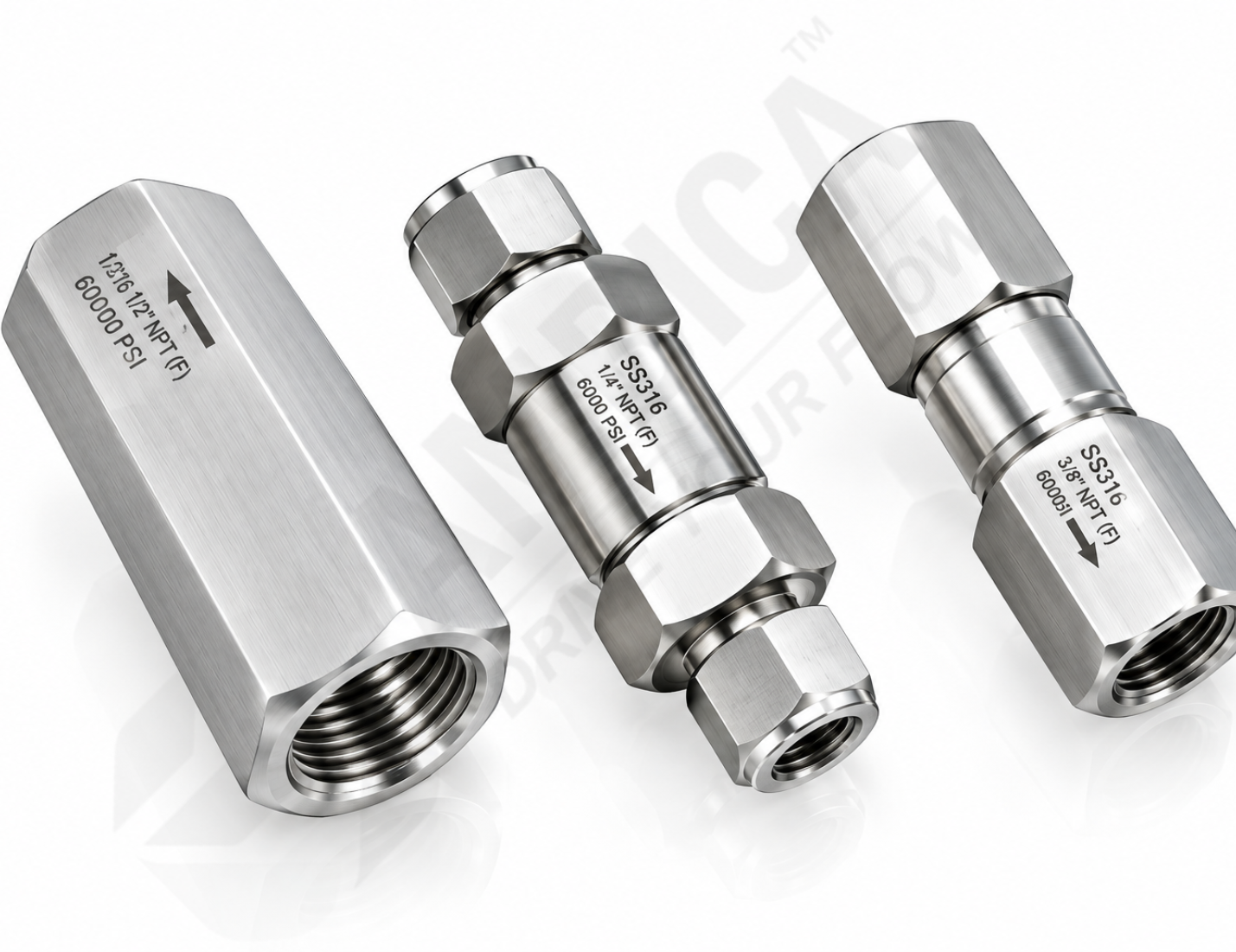

Inline Check / Non Return Valve
Non Return Valve Up to 10,000 PSI
Our inline check and non return valves are designed to allow fluid flow in one direction while automatically preventing reverse flow in high-pressure instrumentation, piping and process systems.
With a compact inline body design, these valves are suitable for pump discharge lines, pipelines, testing systems and industrial applications where reliable backflow prevention and pressure handling are required.
Inline Check / Non Return Valve Specifications
| Parameter | Details |
|---|---|
| End Connection | NPT, BSP, Tube End & As Per Requirement |
| Tube End Size | 1/4" to 1" or 6 mm to 25 mm |
| Screwed Size | 1/4" to 2" |
| Material of Construction | SS 316, SS 316L, SS 304, Carbon Steel & As Per Requirement |
| Packing | Vilton™ O-ring, Teflon™ |
| Pressure Range | Up to 10,000 PSI (800 Bar) at 100°F / 38°C |
| Application | High-Pressure Piping, Pump Discharge Lines, Process Systems, Testing Systems & Industrial Applications |
| Function | Automatic Prevention of Reverse Flow |
Inline Check / Non Return Valve
An inline check valve, also known as a non return valve or NRV, allows fluid to flow in one direction while automatically preventing reverse flow. This protects pumps, instruments and downstream equipment from backflow and pressure-related damage.
The compact straight-through inline body is suitable for high-pressure pipelines, pump discharge lines, process systems and testing applications. The valve operates automatically according to the direction of fluid flow without requiring manual operation.
Our inline check valves are available in stainless steel and carbon steel configurations to suit different pressure, fluid and industrial conditions.
10,000 PSI
- Automatic reverse flow prevention
- Compact inline body design
- NPT, BSP & Tube End connections
- Tube End size 1/4" to 1"
- Screwed size 1/4" to 2"
- SS 316 / SS 316L / SS 304 options
Inline Check / Non Return Valve Applications
Inline check valves are widely used in high-pressure piping and industrial systems where reverse flow must be automatically prevented. Their compact design makes them suitable for restricted installation areas and demanding process applications.
- High-pressure piping systems
- Pump discharge lines
- Chemical processing systems
- Industrial process plants
- Pressure testing equipment
- Instrumentation and process systems
PSI
Maximum pressure rating
Features of Inline Check / Non Return Valve
Reverse Flow Prevention
Automatically prevents reverse fluid flow and protects connected equipment.
High Pressure Rating
Designed for pressure handling up to 10,000 PSI in demanding applications.
Compact Inline Design
Straight inline construction is suitable for compact piping layouts.
Automatic Operation
Operates automatically according to the direction of fluid flow.
Durable Construction
Available in stainless steel and carbon steel for demanding conditions.
Reliable Sealing
Vilton™ O-ring and Teflon™ packing options provide dependable sealing.
Multiple Connections
Available with NPT, BSP and Tube End connections.
Industrial Applications
Suitable for pumps, pipelines, process plants and pressure testing systems.
Benefits of Inline Check / Non Return Valve
Prevents Backflow
Helps prevent reverse flow and protects pumps and downstream equipment.
Automatic Protection
No manual operation is required for normal flow direction control.
Compact Installation
Inline construction saves space in piping and process layouts.
High Pressure Capability
Suitable for systems operating at pressures up to 10,000 PSI.
Material Options
Available in SS 316, SS 316L, SS 304 and carbon steel.
Easy Maintenance
Compact construction allows convenient installation and maintenance.
Reliable Performance
Designed for dependable one-way flow control in industrial systems.
Wide Application Range
Suitable for process, chemical, pump and testing applications.
Inline Check Valve M.O.C. Options
Inline check and non return valves are available in different materials to suit pressure, fluid compatibility and operating conditions.
Stainless steel construction is suitable for demanding industrial and process applications, while carbon steel options can be selected according to system requirements.
M.O.C.
- SS 316
- SS 316L
- SS 304
- Carbon Steel
- As Per Requirement
Inline Check Valve Performance
Our inline check valves are designed for dependable one-way flow control in high-pressure piping and industrial systems.
The valves provide automatic reverse flow prevention with pressure handling up to 10,000 PSI (800 Bar), making them suitable for demanding process, pump and testing applications.
10,000 PSI
- Up to 10,000 PSI (800 Bar)
- 1/4" to 2" screwed size
- 1/4" to 1" Tube End size
- NPT / BSP / Tube End
- 100°F / 38°C reference temperature
Inline Check Valve Packing
Vilton™ O-Ring
Reliable sealing option for suitable industrial operating conditions.
Teflon™
Teflon™ packing option for reliable sealing and fluid compatibility.
Need a High Pressure Non Return Valve?
Why Choose Us As A Best Non Return Valves Manufacturer?
20+ Years of Experience
For more than two decades, we have supplied non return valves for industrial systems where backflow prevention and pressure safety can't be compromised.
Multiple Product Range
As established NRV valve manufacturers, we offer a broad range of non return valve options to match diverse duties, from compact tubing lines to high-pressure pipelines.
10,000+ Happy Clients
More than 10,000 clients worldwide rely on our NRV valves for their reliability, long service life, and consistent performance in high-pressure systems.
CE & ISO Certified
Every non return valve is manufactured under CE and ISO certified processes, meeting industrial quality and safety requirements.
Superior Quality & QC at All Levels
As a trusted non return valve manufacturer, we check every valve for material quality, sealing, and correct flow direction before dispatch.
Used in Critical Applications
Our valves are built for systems where stopping reverse flow is essential to protect equipment and keep operations stable.
Applications of Our Non Return Valves
High-pressure inline check valves rated up to 10,000 PSI are used in systems where one-directional flow is required under extreme pressure. These valves help prevent reverse flow, protect equipment, and maintain pressure stability in compact high-pressure pipelines and tubing systems.
High-Pressure Fluid Transfer Systems
Used in high-pressure fluid transfer lines where one-directional flow must be maintained. The valve helps prevent reverse flow and pressure loss during continuous or intermittent transfer operations.
Pump Discharge and Outlet Lines
Installed at pump discharge points to stop backflow when the pump is shut down. This protects pumps and connected piping from reverse pressure damage.
Chemical Dosing and Handling Units
Used in chemical dosing skids and handling systems to allow controlled forward flow while blocking reverse movement of chemicals. Suitable for systems handling aggressive or sensitive fluids.
Hydro Testing and Pressure Testing Equipment
Commonly used in hydro test and pressure testing setups where pressure up to 10,000 PSI must be held safely in one direction during testing cycles.
Instrumentation and Tubing Lines
Installed in instrumentation, sampling, and tubing lines with NPT, BSP, or tube end connections to protect gauges and instruments from reverse pressure.
Process Lines Requiring Backflow Prevention
Applied in industrial process lines where backflow can affect system performance or equipment safety, especially in compact, high-pressure piping layouts.
Our Valuable Clients
Countries We Serve
Quality and Manufacturing Standards
Our non return valves are manufactured using verified raw materials and controlled machining processes. As a trusted industrial valve manufacturer in Ahmedabad, our every valve is checked for correct flow direction, sealing performance, and pressure handling before dispatch to ensure safe use in industrial systems.
Quality Assurance and Certifications
Industries We Serve
Chemical
- Acid
- Caustic
- Solvent
- Paint
- Shear Sensitive
- Material
Automobile
- Oil
- Solvent
- Paint
- Waste Wate
Food & Medicine
- Liquid Material
- Additive
- Condiment
- Powder
Machinery
- Oil
- Cutting fluid
- Quenching Oil
- Acetone
- Electroplate
- Liquid
- Liquid Waste
Paper Making
- Pulping
- Additive
- Liquid Waste
What our Clients Say
We bought inline check valves from Industrial Pump and Valve by Ambica Machine Tools for our chemical pipeline. Installation was simple, and operation has remained stable.
We installed non return valves in our high-pressure line. The valves stopped backflow and worked as required.
We used these valves from a reliable non return valve manufacturer in our pressure testing setup. The valves handled pressure properly during testing.
