Lined Strainers, Sight Flow Indicators & FAT Expansion Bellows
We manufacture a wide range of lined Y-type and basket strainers, sight flow indicators and FAP expansion bellows to complete your corrosion-resistant piping system.
Get a QuoteTechnical Specifications

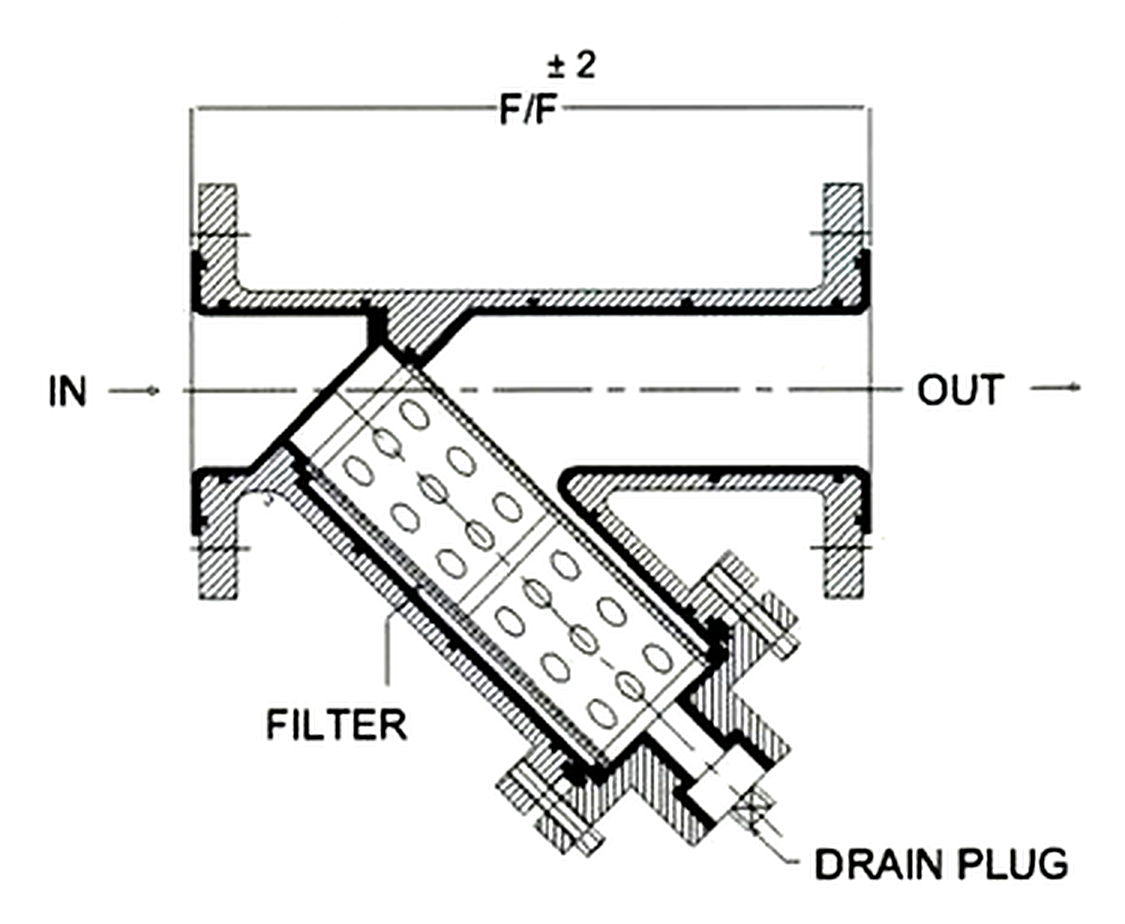

Lined Strainer – Y Type
| Body | DI / ASTM A216 GR WCB / CF8 / CF8M |
|---|---|
| Lining | PFA / FEP / PVDF / HDPE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | F/F (mm) |
|---|---|
| 25 | 160 |
| 40 | 200 |
| 50 | 230 |
| 80 | 310 |
| 100 | 350 |
| 150 | 480 |
Testing Data
| Hydraulic test | Body 15 kg/cm² |
|---|---|
| Spark test | 15 KVDC |

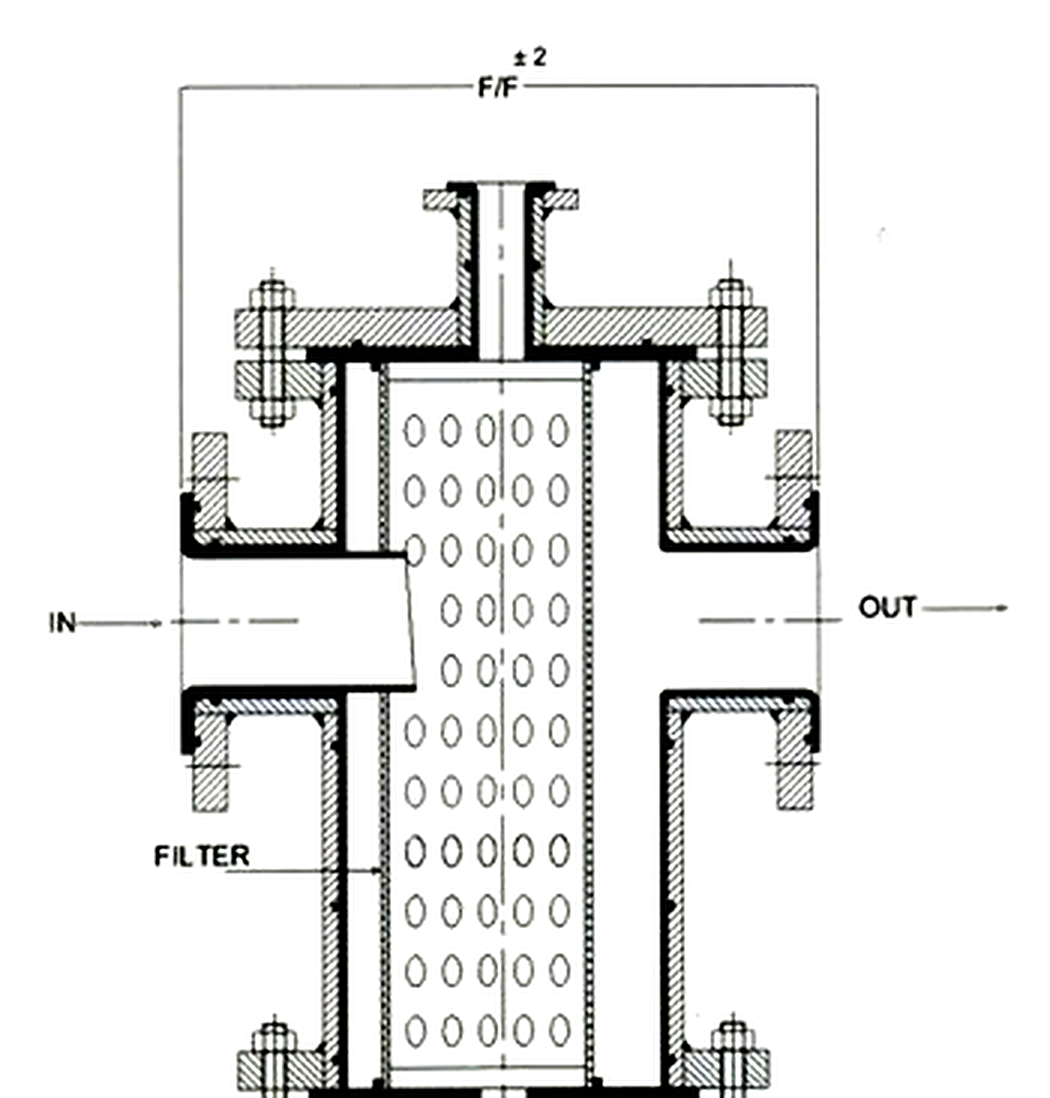

Lined Strainer – Basket Type
| Body fabricated – Flange | IS 2062 / ASTM A105 / SS304 / SS316 |
|---|---|
| Body fabricated – Pipe | CS ASTM A105 GR.B / SS304 / SS316 |
| Lining | PFA / FEP / PVDF / HDPE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | F/F (mm) |
|---|---|
| 25 | 160 |
| 40 | 200 |
| 50 | 230 |
| 80 | 310 |
| 100 | 350 |
| 150 | 480 |
Testing Data
| Hydraulic test | Body 15 kg/cm² |
|---|---|
| Spark test | 15 KVDC |

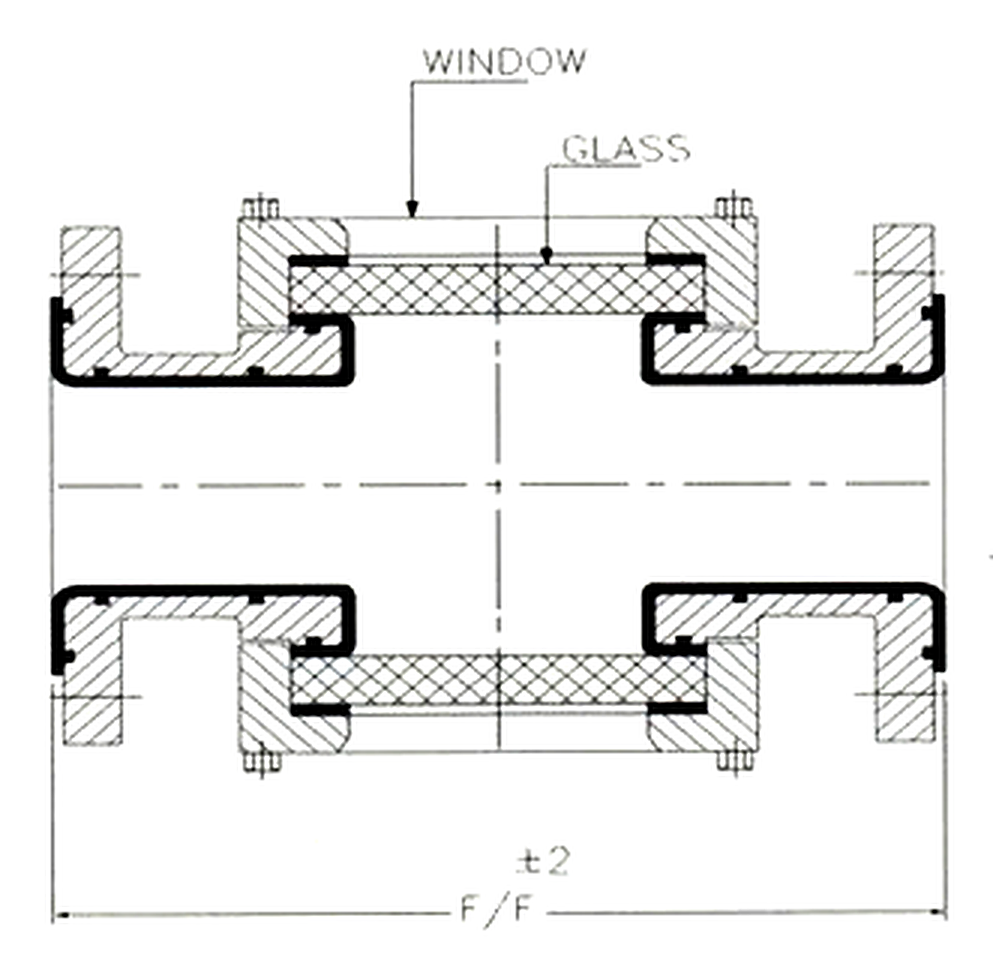

Lined Sight Flow Indicator
| Body | DI / ASTM A216 GR WCB / CF8 / CF8M |
|---|---|
| Body fabricated – Flange | IS 2062 / ASTM A105 / SS304 / SS316 |
| Body fabricated – Pipe | CS ASTM A105 GR.B / SS304 / SS316 |
| Glass | Toughened / Borosilicate |
| Lining | PFA / FEP / PVDF / HDPE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | F/F (mm) |
|---|---|
| 25 | 160 |
| 40 | 200 |
| 50 | 230 |
| 80 | 310 |
| 100 | 350 |
| 150 | 480 |
| 200 | 600 |
Testing Data
| Hydraulic test | Body 15 kg/cm² |
|---|---|
| Spark test | 15 KVDC |
- Double window type / full view type.

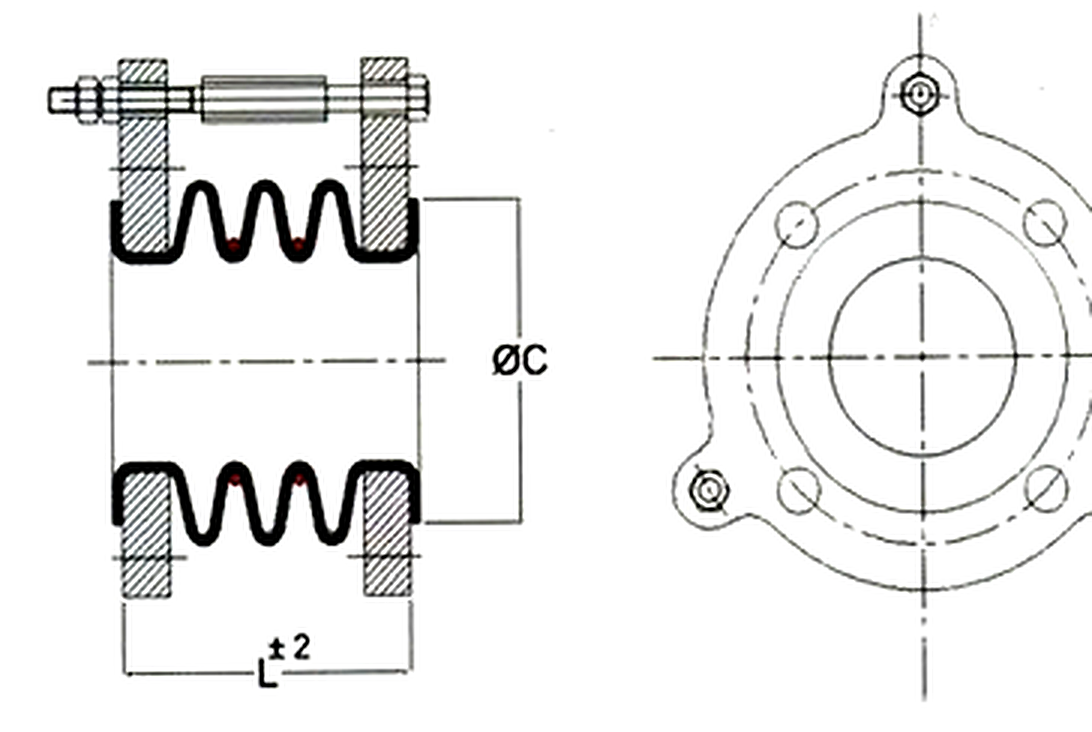

FAP Expansion Bellows
| Flange | DI / CF8 / CF8M; IS 2062 / ASTM A105 / SS304 / SS316 |
|---|---|
| Lining | FAP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | L (mm) | ØC (mm) |
|---|---|---|
| 25 | 60 | 51 |
| 40 | 60 | 73 |
| 50 | 70 | 92 |
| 65 | 80 | 104 |
| 80 | 100 | 127 |
| 100 | 100 | 157 |
| 150 | 100 | 216 |
| 200 | 150 | 270 |
| 250 | 150 | 230 |
Testing Data
| Spark test | 15 KVDC |
|---|
- Available in various lengths.
- Made of virgin FAP. These expansion joints are mainly used where vibration, absorbed shock and continuous expansion prevail.
Quality Assurance and Certifications
Our Valuable Clients Choose Us as the Best FAP Lined Valves And Pipes Supplier in India
What our Clients Say
Truly Recommended... Industrial Pump and Valve by Ambica Machine Tools has expertise in manufacturing barrel pumps and other industrial pumps. It provides the best service to a customer.
Jitendra Prajapati
Good quality pumps with reliable performance. Ambica Machine Tools provides durable barrels and AODD pumps and is a trusted pump manufacturer.
Vishal Panchal
Good quality barrel pumps with smooth performance. They offer reliable and durable solutions, and their team understands industrial requirements well. Trusted manufacturer in India.
Yash patel
One-stop solution for Industrial pump requirements... Highly Recommended!!
Piyush Tank
FAQs
We offer lined ball valves (2 pc design), plug valves, diaphragm valves, butterfly valves, swing check valves, ball check valves, sampling valves, flush bottom valves and globe valves. They can be lever operated, gear operated or actuator operated.
Lining options are FAP, PFA, FEP, PVDF, ETFE, PP and HDPE. Available linings vary by product, so please mention your requirement when enquiring.
FAP and PFA are suitable up to 200°C, FEP up to 160°C, ETFE up to 140°C, PVDF up to 130°C, PP up to 90°C and HDPE up to 70°C.
The minimum lining thickness is 3 mm. Flange connections are as per ANSI B16.5, #150 or as per customer requirement.
Valves are hydraulically tested (body 15 kg/cm², seat 11 kg/cm²), pneumatically tested (seat 6 kg/cm²) and spark tested at 15 KVDC. Lined pipes and fittings are hydraulically tested at 20 kg/cm² and spark tested at 15 KVDC.
Sizes depend on the product. For example, lined ball valves are available from 15 NB to 200 NB, butterfly valves from 50 NB to 400 NB, lined pipes from 15 NB to 200 NB, and blind flanges and spacers from 15 NB to 350 NB.
The maximum pipe length is 3 meter. Lined pipes are supplied with one loose flange and one fixed flange, in jacketed and non jacketed options.
Yes. Special finishes, non-standard dimensions and custom FAP requirements can be considered as per your application needs. Please share your drawing or requirement with us.
Choose based on the chemical and its concentration, operating temperature, pressure, line size and connection type. Share your details with us and we will help you select the right lining and product.
