We manufacture a wide range of 45° and 90° lined elbows in jacketed and non jacketed options, from 15 NB to 200 NB.

Get a Quote

Technical Specifications

Pattern Symbol

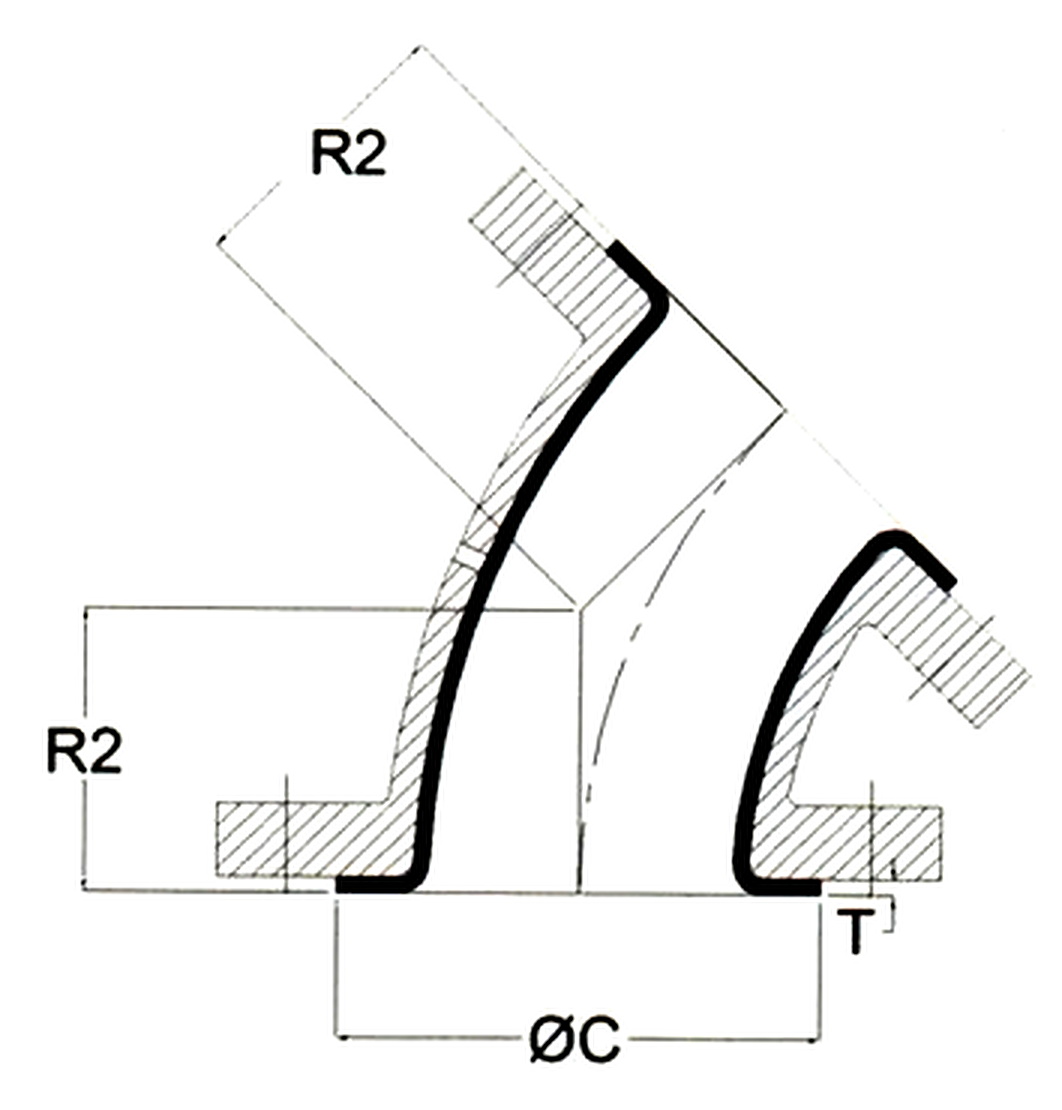

45° Lined Elbow

45° Lined Elbow

Body DI
Body fabricated – Flange IS 2062 / ASTM A105 / SS304 / SS316
Body fabricated – Elbow WPB / SS304 / SS316
Lining PTFE / PFA / FEP / PVDF / HDPE / PP
Lining thickness 3 mm minimum
Flange connection ANSI B16.5, #150 / Customer requirement

Dimensional Data

Size (NB) ØC (mm) R2 (mm)
15 35 44
20 43 44
25 51 44
40 73 57
50 92 64
80 127 76
100 157 102
150 216 127
200 270 140

Testing Data

Hydraulic test 20 kg/cm²
Spark test 15 KVDC
  • Minimum liner face (R/F) thickness (T) of the elbow should be 80% of liner thickness.

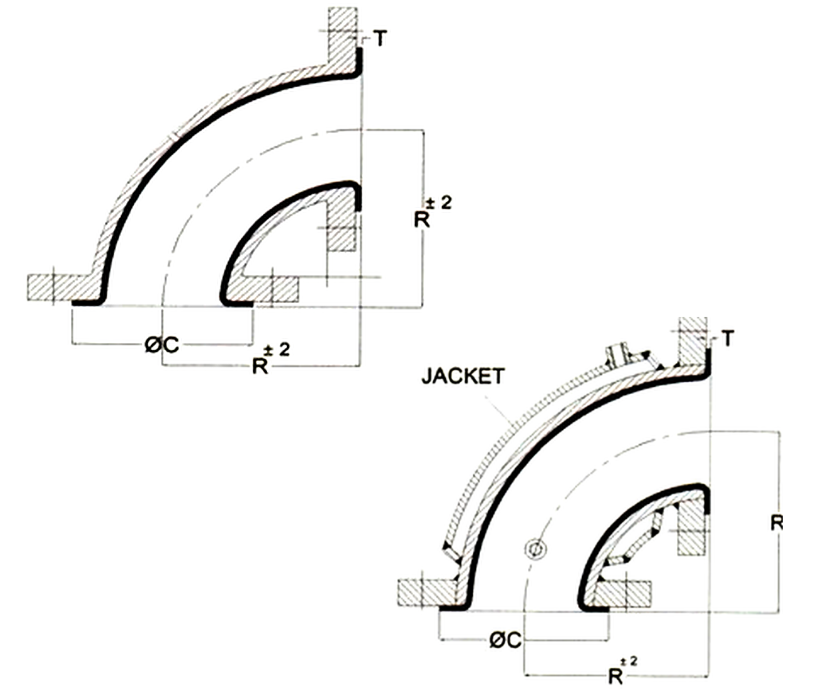

90° Lined Elbow (Jacketed / Non Jacketed)

90° Lined Elbow (Jacketed / Non Jacketed)

Body DI
Body fabricated – Flange IS 2062 / ASTM A105 / SS304 / SS316
Body fabricated – Elbow WPB / SS304 / SS316
Lining PTFE / PFA / FEP / PVDF / HDPE / PP
Lining thickness 3 mm minimum
Flange connection ANSI B16.5, #150 / Customer requirement

Dimensional Data

Size (NB) ØC (mm) R (mm)
15 35 65
20 43 75
25 51 89
40 73 102
50 92 114
65 105 127
80 127 140
100 157 165
150 216 203
200 270 229

Testing Data

Hydraulic test 20 kg/cm²
Spark test 15 KVDC
  • Dimensional tolerance R: ±2 mm.

Quality Assurance and Certifications

Pattern Symbol

What our Clients Say

Pattern Symbol

FAQs

Pattern Symbol

We offer lined ball valves (2 pc design), plug valves, diaphragm valves, butterfly valves, swing check valves, ball check valves, sampling valves, flush bottom valves and globe valves. They can be lever operated, gear operated or actuator operated.

Lining options are PTFE, PFA, FEP, PVDF, ETFE, PP and HDPE. Available linings vary by product, so please mention your requirement when enquiring.

PTFE and PFA are suitable up to 200°C, FEP up to 160°C, ETFE up to 140°C, PVDF up to 130°C, PP up to 90°C and HDPE up to 70°C.

The minimum lining thickness is 3 mm. Flange connections are as per ANSI B16.5, #150 or as per customer requirement.

Valves are hydraulically tested (body 15 kg/cm², seat 11 kg/cm²), pneumatically tested (seat 6 kg/cm²) and spark tested at 15 KVDC. Lined pipes and fittings are hydraulically tested at 20 kg/cm² and spark tested at 15 KVDC.

Sizes depend on the product. For example, lined ball valves are available from 15 NB to 200 NB, butterfly valves from 50 NB to 400 NB, lined pipes from 15 NB to 200 NB, and blind flanges and spacers from 15 NB to 350 NB.

The maximum pipe length is 3 meter. Lined pipes are supplied with one loose flange and one fixed flange, in jacketed and non jacketed options.

Yes. Special finishes, non-standard dimensions and custom PTFE requirements can be considered as per your application needs. Please share your drawing or requirement with us.

Choose based on the chemical and its concentration, operating temperature, pressure, line size and connection type. Share your details with us and we will help you select the right lining and product.
