FAP Lined Pipes Manufacturer in India

We manufacture a wide range of lined pipes in jacketed and non jacketed options, along with lined dip pipes and flexible hose pipes, for corrosive chemical lines.

Get a Quote

Technical Specifications

Pattern Symbol

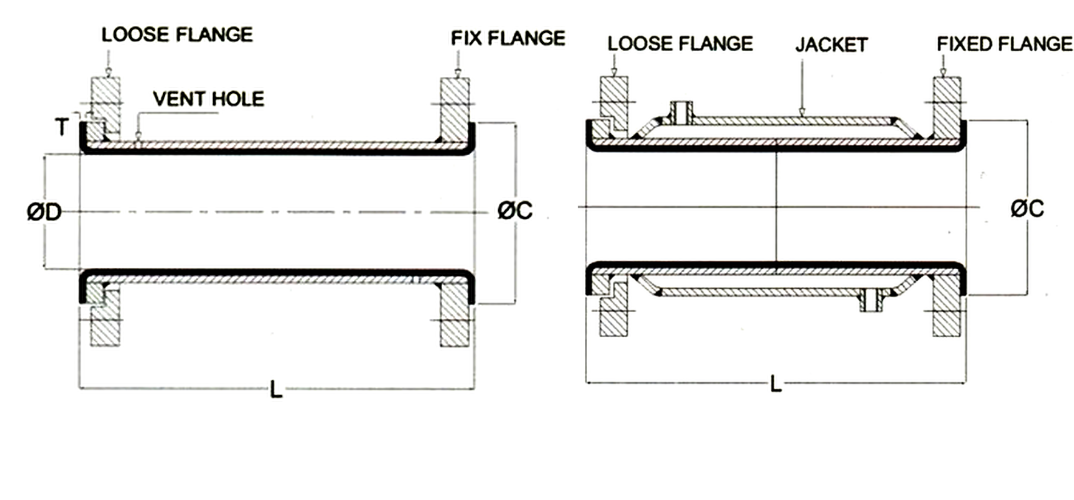

Lined Pipe (Jacketed / Non Jacketed)

Lined Pipe (Jacketed / Non Jacketed)

Flange IS 2062 / ASTM A105 / SS304 / SS316
Pipe CS ASTM A106 GR.B / SS304 / SS316 (SCH 40)
Lining FAP / PFA / FEP / PVDF / HDPE / PP
Lining thickness 3 mm minimum
Flange connection ANSI B16.5, #150 / Customer requirement

Dimensional Data

Size (NB) ØC (mm) ØD (mm)
15 35 9.5
20 43 15
25 51 20
40 73 34.5
50 92 45.5
65 105 55.5
80 127 71
100 157 94.5
150 216 144
200 270 192

Testing Data

Hydraulic test 20 kg/cm²
Spark test 15 KVDC
  • Maximum pipe length: 3 m.
  • Tolerance: ±3 mm up to 1 m and ±5 mm above 1 m.
  • Lined pipes are supplied with one end loose flange and the other end fixed flange.
  • Minimum liner face (R/F) thickness (T) of the pipe should be 80% of liner thickness.

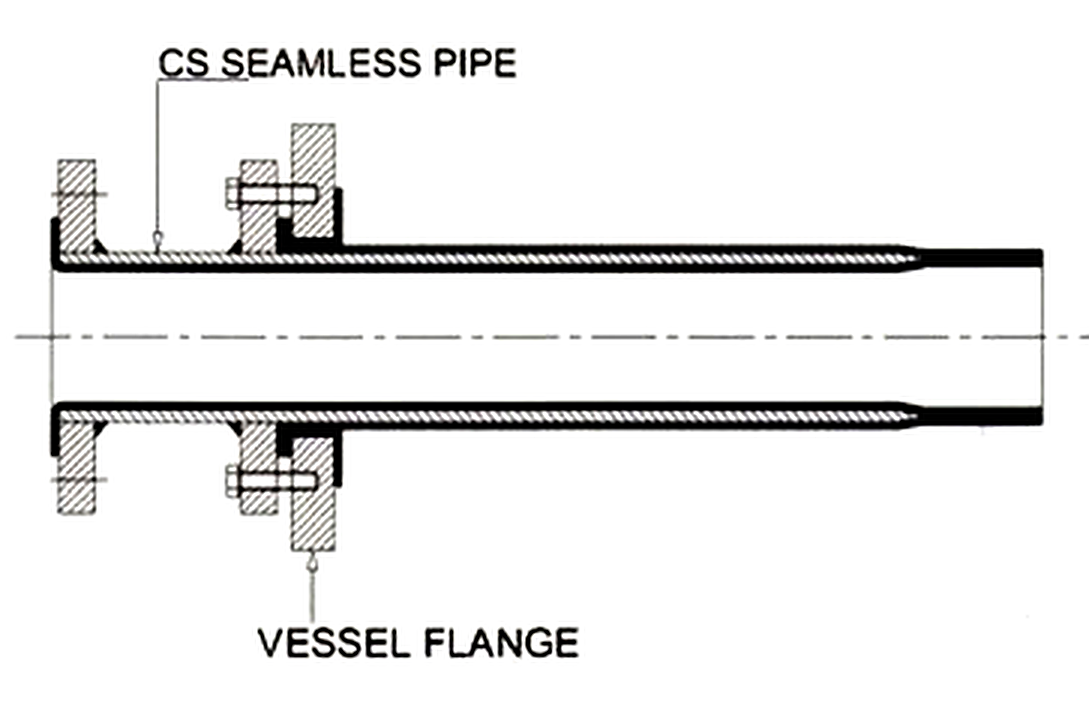

Lined Dip Pipe

Lined Dip Pipe

Flange IS 2062 / ASTM A105 / SS304 / SS316
Pipe CS ASTM A106 GR.B / SS304 / SS316 (SCH 40)
Lining FAP
Lining thickness 3 mm minimum
Flange connection ANSI B16.5, #150 / Customer requirement

Testing Data

Hydraulic test Body 20 kg/cm²
Spark test 15 KVDC
  • Supplied with CS seamless pipe and vessel flange.

Lined Flexible Hose Pipe

Flexible hose pipe SS304 / SS316
Lining FAP
Lining thickness 3 mm minimum
Flange connection ANSI B16.5, #150 / Customer requirement

Testing Data

Spark test 15 KVDC
  • Minimum liner face (R/F) thickness of the pipe should be 80% of liner thickness.

Quality Assurance and Certifications

Pattern Symbol

What our Clients Say

Pattern Symbol

FAQs

Pattern Symbol

We offer lined ball valves (2 pc design), plug valves, diaphragm valves, butterfly valves, swing check valves, ball check valves, sampling valves, flush bottom valves and globe valves. They can be lever operated, gear operated or actuator operated.

Lining options are FAP, PFA, FEP, PVDF, ETFE, PP and HDPE. Available linings vary by product, so please mention your requirement when enquiring.

FAP and PFA are suitable up to 200°C, FEP up to 160°C, ETFE up to 140°C, PVDF up to 130°C, PP up to 90°C and HDPE up to 70°C.

The minimum lining thickness is 3 mm. Flange connections are as per ANSI B16.5, #150 or as per customer requirement.

Valves are hydraulically tested (body 15 kg/cm², seat 11 kg/cm²), pneumatically tested (seat 6 kg/cm²) and spark tested at 15 KVDC. Lined pipes and fittings are hydraulically tested at 20 kg/cm² and spark tested at 15 KVDC.

Sizes depend on the product. For example, lined ball valves are available from 15 NB to 200 NB, butterfly valves from 50 NB to 400 NB, lined pipes from 15 NB to 200 NB, and blind flanges and spacers from 15 NB to 350 NB.

The maximum pipe length is 3 meter. Lined pipes are supplied with one loose flange and one fixed flange, in jacketed and non jacketed options.

Yes. Special finishes, non-standard dimensions and custom FAP requirements can be considered as per your application needs. Please share your drawing or requirement with us.

Choose based on the chemical and its concentration, operating temperature, pressure, line size and connection type. Share your details with us and we will help you select the right lining and product.
