PTFE Lined Tees & Crosses Manufacturer in India

We manufacture a wide range of lined tees and crosses: equal / unequal tee, 45° lateral tee, short tee, instrument tee and equal / unequal cross, in jacketed and non jacketed options.

Get a Quote

Technical Specifications

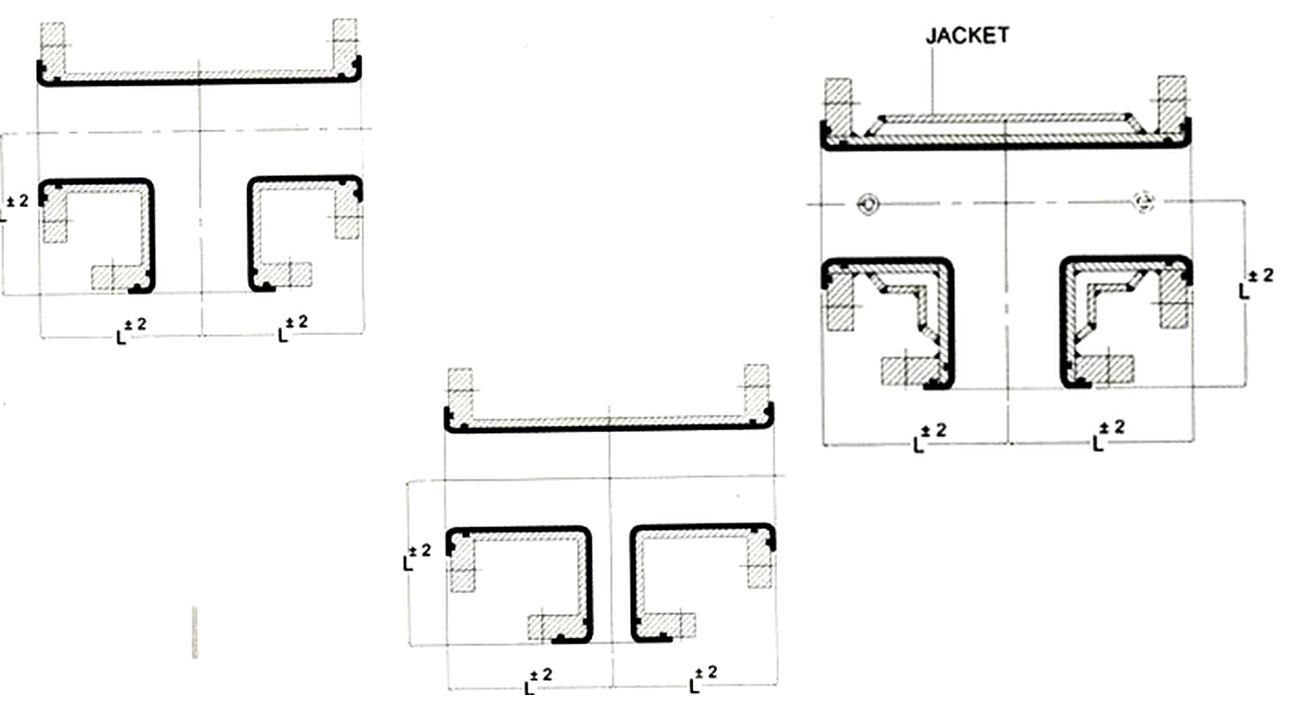

Lined Equal / Unequal Tee (Jacketed / Non Jacketed)

Body	DI
Body fabricated – Flange	IS 2062 / ASTM A105 / SS304 / SS316
Body fabricated – Pipe	CS ASTM A106 GR.B / SS304 / SS316
Lining	PFA / FEP / PVDF / HDPE / PP
Lining thickness	3 mm minimum
Flange connection	ANSI B16.5, #150 / Customer requirement

Dimensional Data

Size (NB)	L (mm)
20	75
25	89
40	102
50	114
65	127
80	140
100	165
150	203
200	229
250	279

Testing Data

Hydraulic test	20 kg/cm²
Spark test	15 KVDC

Dimensional tolerance L: ±2 mm.

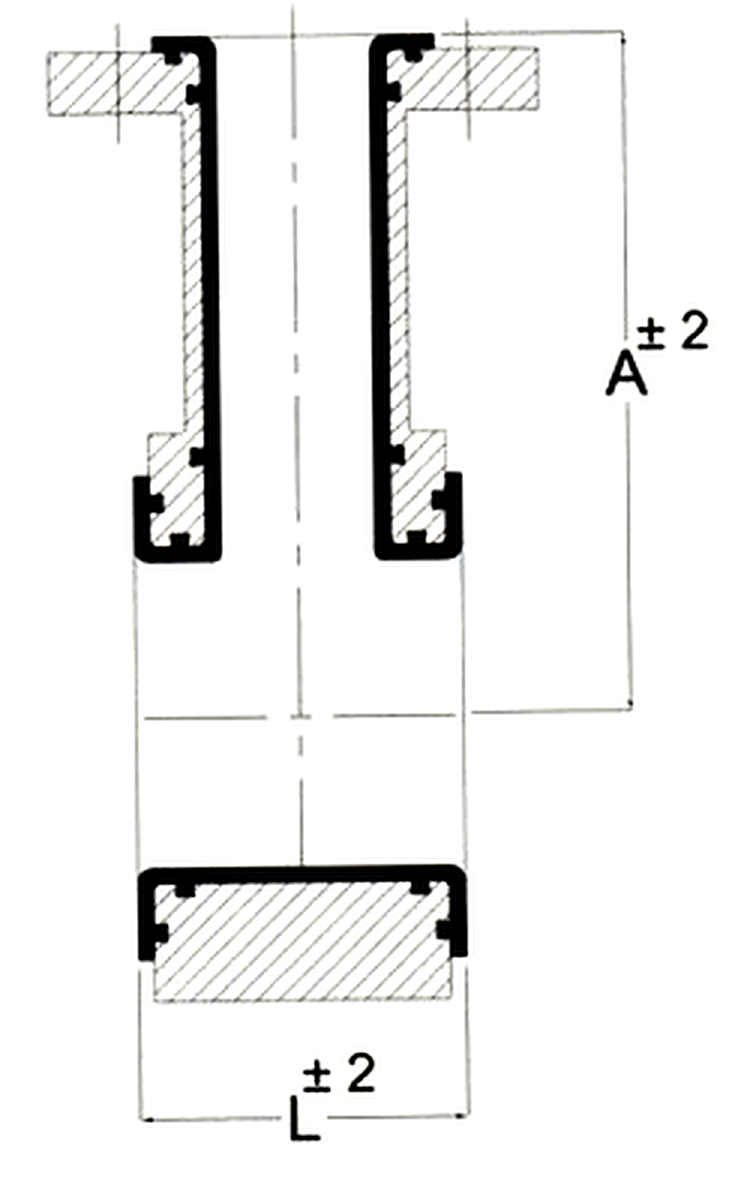

Lined Instrument Tee

Body	DI
Body fabricated – Flange	IS 2062 / ASTM A105 / SS304 / SS316
Body fabricated – Pipe	CS ASTM A106 GR.B / SS304 / SS316
Lining	PFA / FEP / PVDF / HDPE / PP
Lining thickness	3 mm minimum
Flange connection	ANSI B16.5, #150 / Customer requirement

Dimensional Data

Size (NB)	Branch (NB)	L (mm)	A (mm)
25	25	50	89
40	25	50	102
40	40	76	102
50	25	50	114
50	40	76	114
50	50	76	114
80	25	50	140
80	40	76	140
80	50	76	140
100	25	50	165
100	40	76	165
100	50	76	165
150	25	50	203
150	40	76	203
150	50	76	203

Testing Data

Hydraulic test	20 kg/cm²
Spark test	15 KVDC

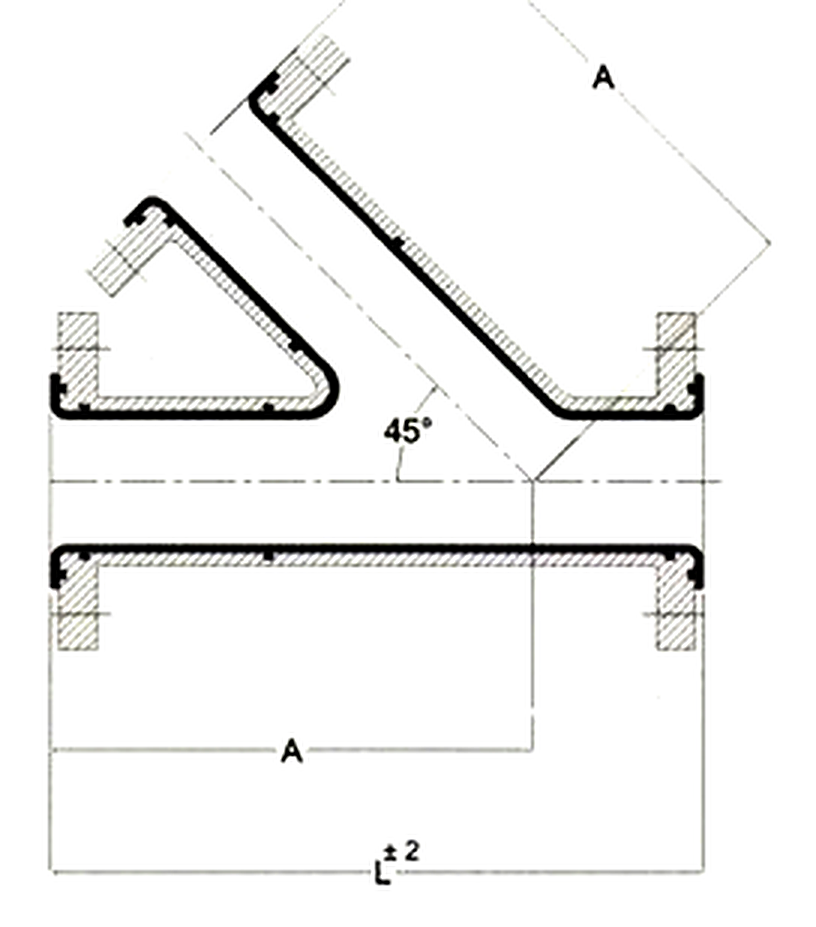

Lined 45° Lateral Tee

Body	DI
Body fabricated – Flange	IS 2062 / ASTM A105 / SS304 / SS316
Body fabricated – Pipe	CS ASTM A106 GR.B / SS304 / SS316
Lining	PFA / FEP / PVDF / HDPE / PP
Lining thickness	3 mm minimum
Flange connection	ANSI B16.5, #150 / Customer requirement

Dimensional Data

Size (NB)	L (mm)
25	178
40	204
50	228
80	280
100	330
150	406

Testing Data

Hydraulic test	20 kg/cm²
Spark test	15 KVDC

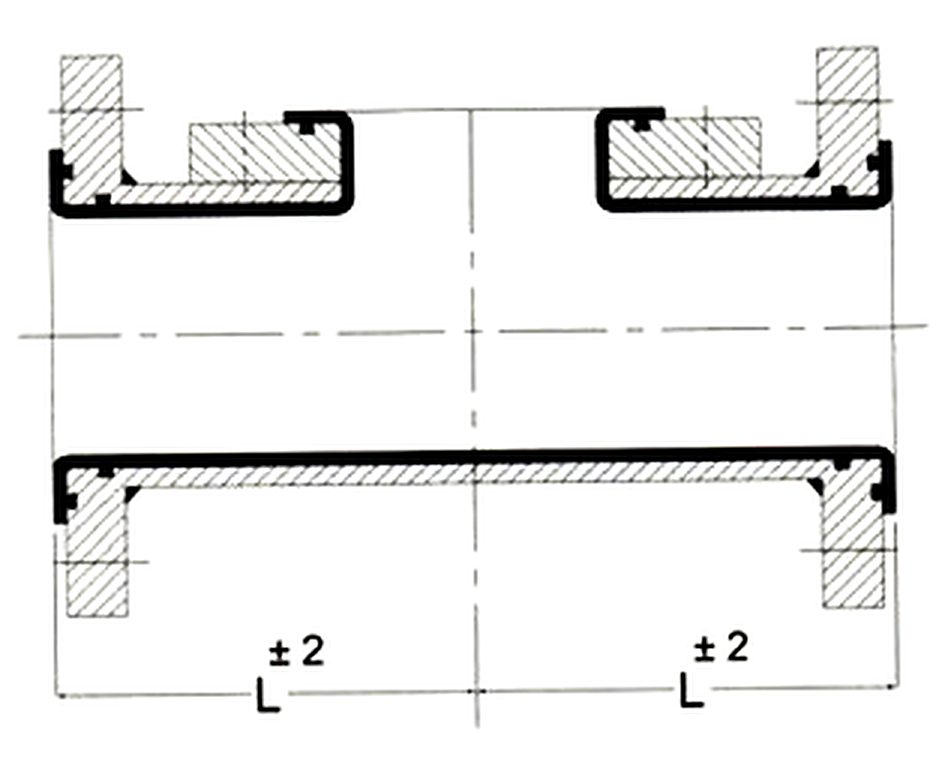

Lined Short Tee

Body	DI
Body fabricated – Flange	IS 2062 / ASTM A105 / SS304 / SS316
Body fabricated – Pipe	CS ASTM A106 GR.B / SS304 / SS316
Lining	PFA / FEP / PVDF / HDPE / PP
Lining thickness	3 mm minimum
Flange connection	ANSI B16.5, #150 / Customer requirement

Dimensional Data

Size (NB)	L (mm)
25	89
40	102
50	114
80	140
100	165
150	203

Testing Data

Hydraulic test	20 kg/cm²
Spark test	15 KVDC

Short tee is used for mounting problems where space is at a premium.

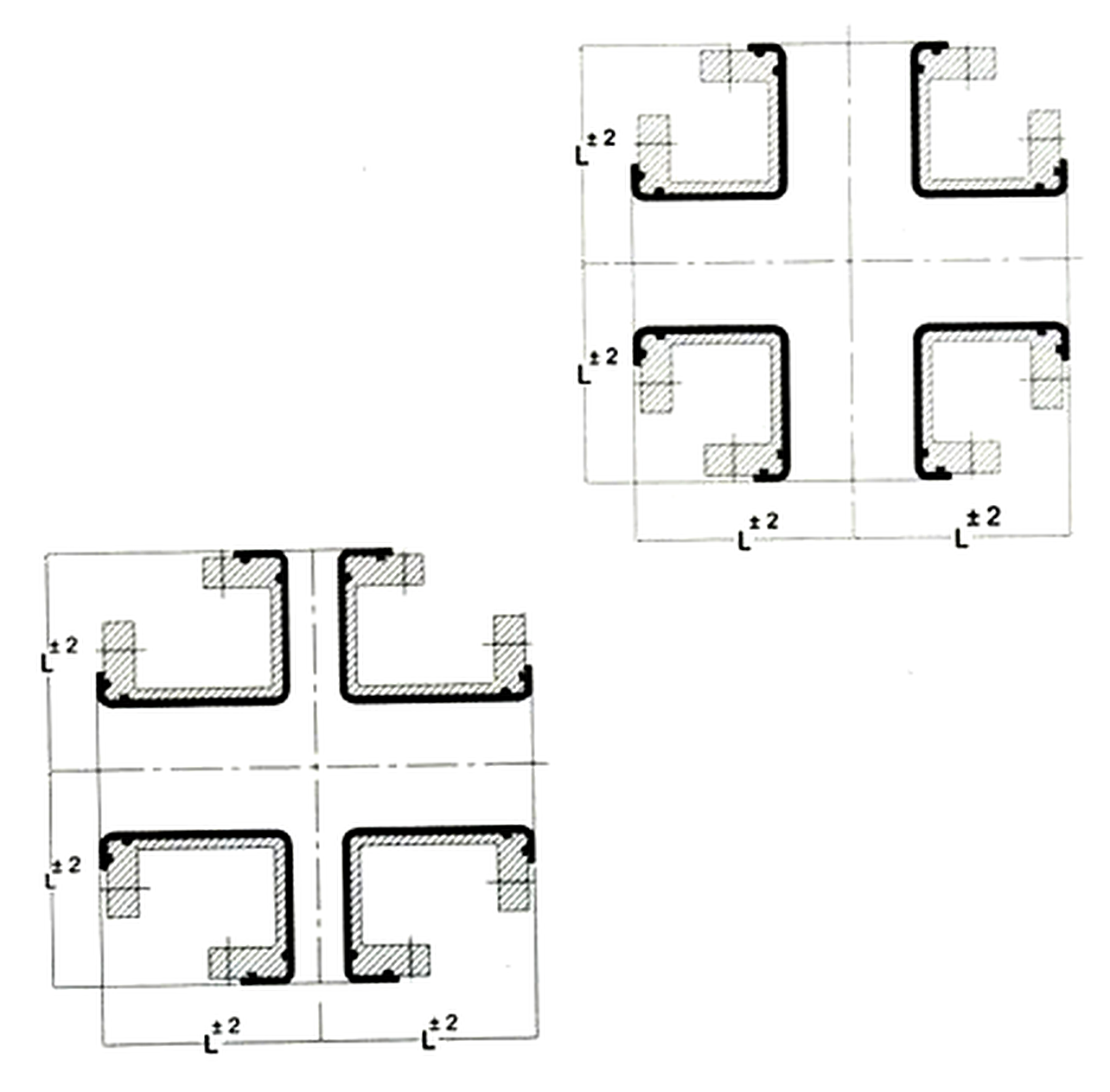

Lined Equal / Unequal Cross

Body	DI
Body fabricated – Flange	IS 2062 / ASTM A105 / SS304 / SS316
Body fabricated – Pipe	CS ASTM A106 GR.B / SS304 / SS316
Lining	PFA / FEP / PVDF / HDPE / PP
Lining thickness	3 mm minimum
Flange connection	ANSI B16.5, #150 / Customer requirement

Testing Data

Hydraulic test	20 kg/cm²
Spark test	15 KVDC

Dimensional table not given in the catalog.

Quality Assurance and Certifications

Our Valuable Clients Choose Us as the Best FAP Lined Valves And Pipes Supplier in India

What our Clients Say

Truly Recommended... Industrial Pump and Valve by Ambica Machine Tools has expertise in manufacturing barrel pumps and other industrial pumps. It provides the best service to a customer.

Jitendra Prajapati

Good quality pumps with reliable performance. Ambica Machine Tools provides durable barrels and AODD pumps and is a trusted pump manufacturer.

Vishal Panchal

Good quality barrel pumps with smooth performance. They offer reliable and durable solutions, and their team understands industrial requirements well. Trusted manufacturer in India.

Yash patel

One-stop solution for Industrial pump requirements... Highly Recommended!!

Piyush Tank

FAQs

We offer lined ball valves (2 pc design), plug valves, diaphragm valves, butterfly valves, swing check valves, ball check valves, sampling valves, flush bottom valves and globe valves. They can be lever operated, gear operated or actuator operated.

Lining options are PTFE, PFA, FEP, PVDF, ETFE, PP and HDPE. Available linings vary by product, so please mention your requirement when enquiring.

FAP and PFA are suitable up to 200°C, FEP up to 160°C, ETFE up to 140°C, PVDF up to 130°C, PP up to 90°C and HDPE up to 70°C.

The minimum lining thickness is 3 mm. Flange connections are as per ANSI B16.5, #150 or as per customer requirement.

Valves are hydraulically tested (body 15 kg/cm², seat 11 kg/cm²), pneumatically tested (seat 6 kg/cm²) and spark tested at 15 KVDC. Lined pipes and fittings are hydraulically tested at 20 kg/cm² and spark tested at 15 KVDC.

Sizes depend on the product. For example, lined ball valves are available from 15 NB to 200 NB, butterfly valves from 50 NB to 400 NB, lined pipes from 15 NB to 200 NB, and blind flanges and spacers from 15 NB to 350 NB.

The maximum pipe length is 3 meter. Lined pipes are supplied with one loose flange and one fixed flange, in jacketed and non jacketed options.

Yes. Special finishes, non-standard dimensions and custom FAP requirements can be considered as per your application needs. Please share your drawing or requirement with us.

Choose based on the chemical and its concentration, operating temperature, pressure, line size and connection type. Share your details with us and we will help you select the right lining and product.
