FAP Lined Valves And Pipes Manufacturer in India
Ambica Machine Tools manufactures a wide range of lined valves: ball (2 pc design), plug, diaphragm, butterfly, swing check, ball check, sampling, flush bottom and globe valves. All valves can be supplied lever operated, gear operated or actuator operated.
Get a QuoteTechnical Specifications

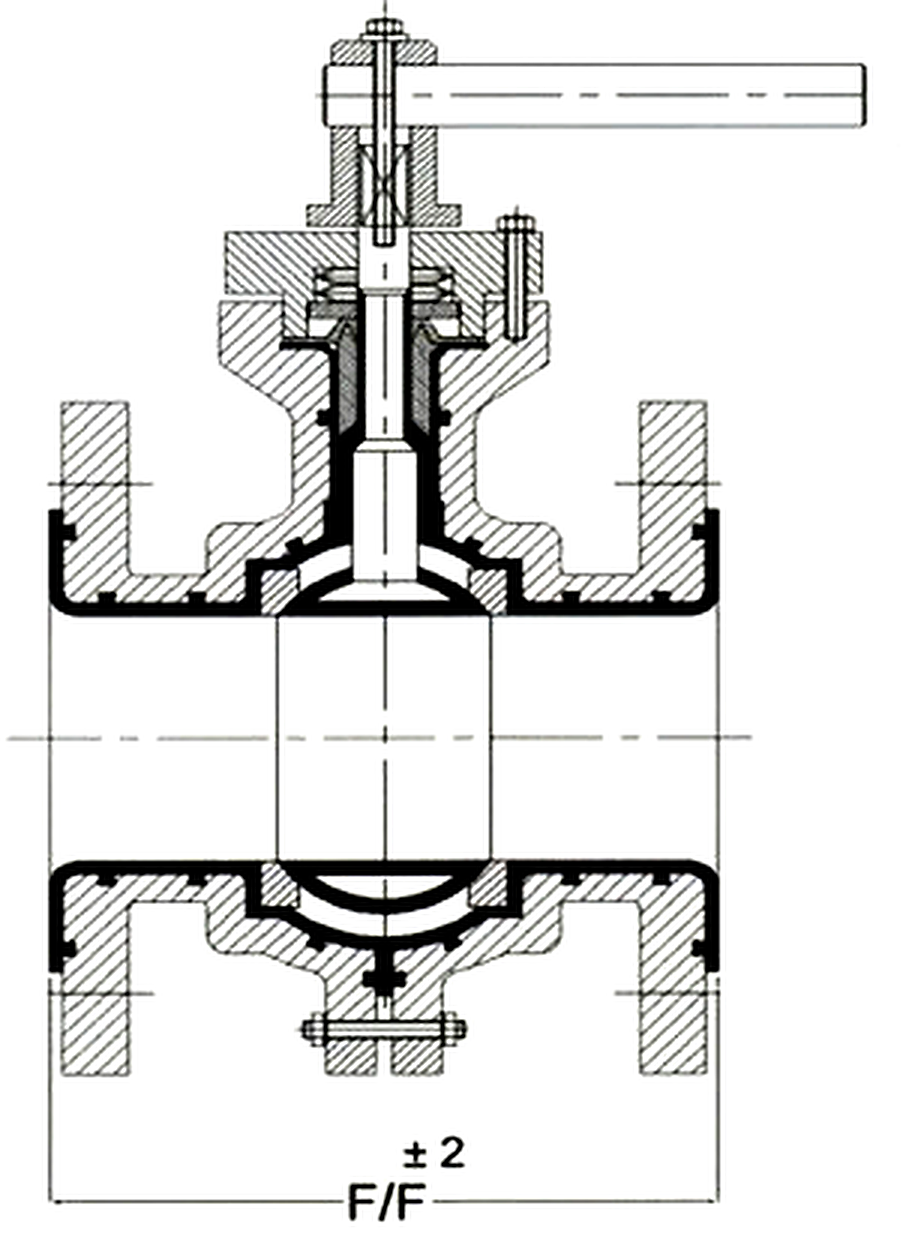

Full Port Lined Ball Valve (2 pc design)
| Design std | BS 5351 |
|---|---|
| Body | DI / ASTM A216 GR WCB / CF8 / CF8M |
| Ball | DI / ASTM A216 GR WCB / CF8 / CF8M |
| Lining | PFA / FEP / PVDF / HDPE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | F/F (mm) |
|---|---|
| 15 | 117 |
| 20 | 117 |
| 25 | 127 |
| 40 | 165 |
| 50 | 178 |
| 65 | 190 / 203* |
| 80 | 203 |
| 100 | 228 |
| 150 | 267 |
| 200 | 294 |
Testing Data
| Hydraulic test | Body 15 kg/cm², Seat 11 kg/cm² |
|---|---|
| Pneumatic test | Seat 6 kg/cm² |
| Spark test | 15 KVDC |
- Manually lever operated, gear operated, actuator operated.
- Dimensional tolerance F/F: ±2 mm.

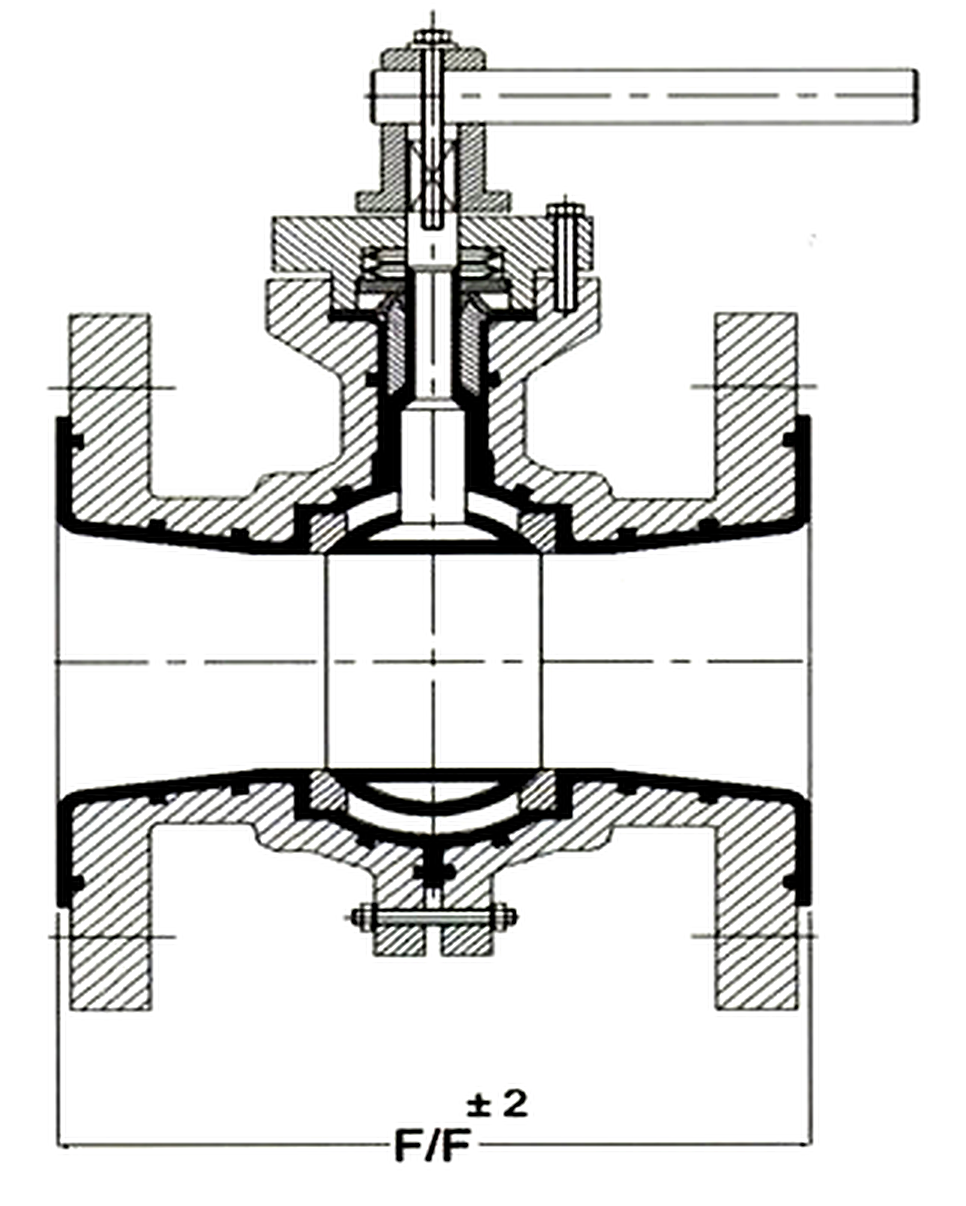

Reduce Port Lined Ball Valve (2 pc design)
| Design std | BS 5351 |
|---|---|
| Body | DI / ASTM A216 GR WCB / CF8 / CF8M |
| Ball | DI / ASTM A216 GR WCB / CF8 / CF8M |
| Lining | PFA / FEP / PVDF / HDPE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | F/F (mm) |
|---|---|
| 15x20 | 117 |
| 20x25 | 127 |
| 25x40 | 165 |
| 40x50 | 178 |
| 50x65 | 190 |
| 65x80 | 203 |
| 80x100 | 228 |
| 100x150 | 267 |
| 150x200 | 294 |
Testing Data
| Hydraulic test | Body 15 kg/cm², Seat 11 kg/cm² |
|---|---|
| Pneumatic test | Seat 6 kg/cm² |
| Spark test | 15 KVDC |
- Manually lever operated, gear operated, actuator operated.

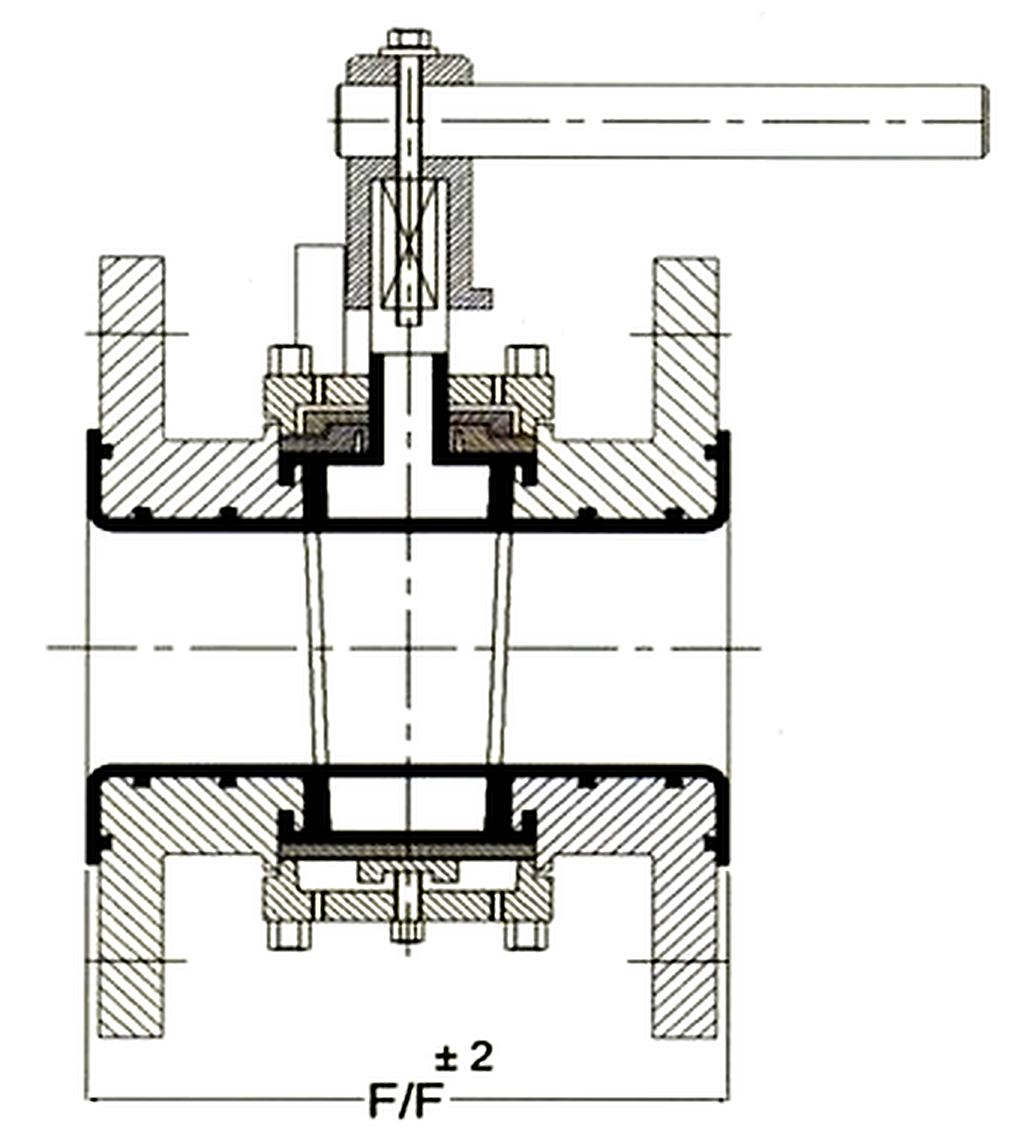

Lined Plug Valve
| Design std | BS 5158 |
|---|---|
| Body | DI / ASTM A216 GR WCB / CF8 / CF8M |
| Plug | DI / ASTM A216 GR WCB / CF8 / CF8M |
| Lining | PFA / FEP / PVDF |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | F/F (mm) |
|---|---|
| 15 | 108 |
| 20 | 117 |
| 25 | 127 |
| 40 | 165 |
| 50 | 178 |
| 80 | 203 |
| 100 | 229 |
| 150 | 267 |
Testing Data
| Hydraulic test | Body 15 kg/cm², Seat 11 kg/cm² |
|---|---|
| Pneumatic test | Seat 6 kg/cm² |
| Spark test | 15 KVDC |
- Manually lever operated, gear operated, actuator operated.

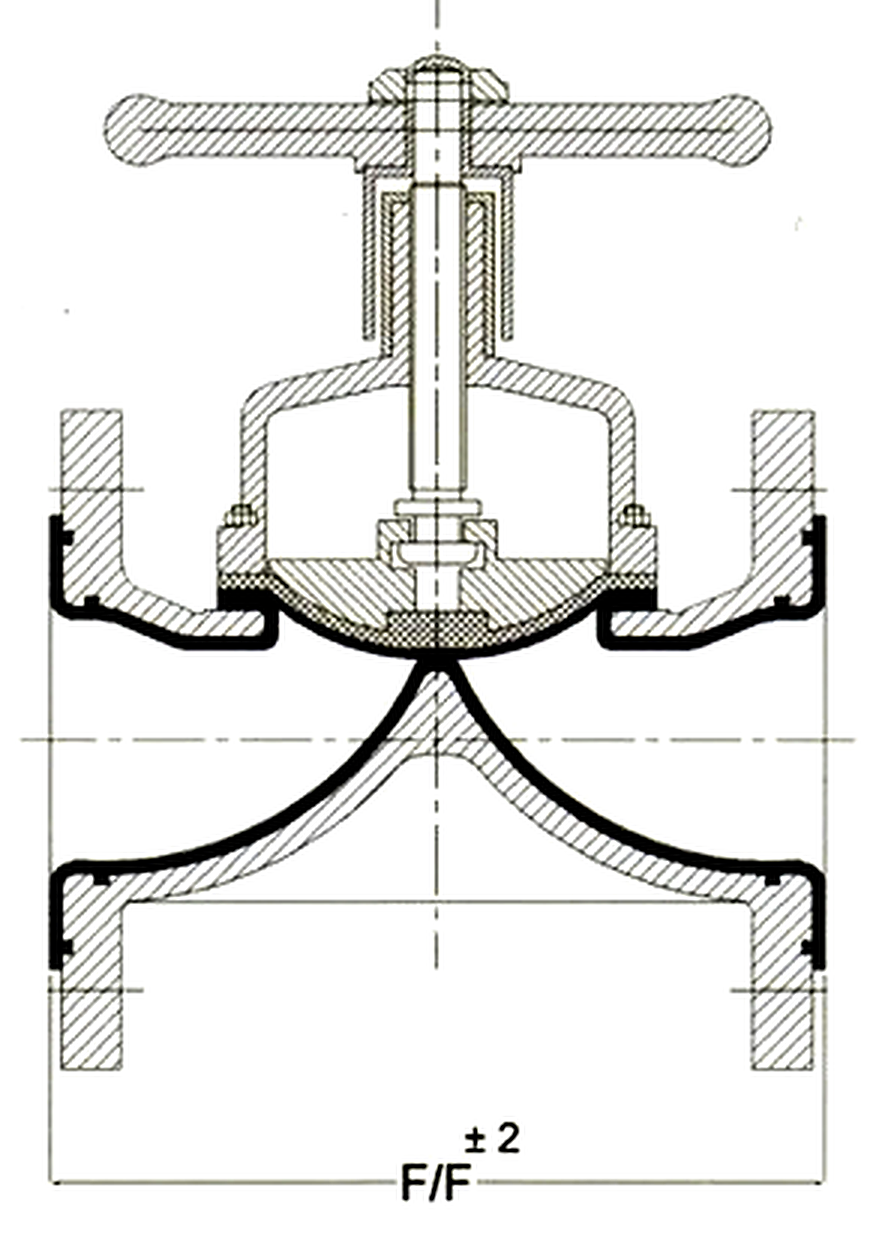

Weir Type Lined Diaphragm Valve
| Design std | BS 5156 |
|---|---|
| Body | DI / ASTM A216 GR WCB / CF8 / CF8M |
| Bonnet | DI / ASTM A216 GR WCB / CF8 / CF8M |
| Compressor | DI / ASTM A216 GR WCB / CF8 / CF8M |
| Spindle | CS / SS304 / SS316 / SS410 |
| Lining | PFA / FEP / PVDF / ETFE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | F/F (mm) |
|---|---|
| 15 | 114 |
| 20 | 123 |
| 25 | 133 |
| 40 | 165 |
| 50 | 196 |
| 65 | 222 |
| 80 | 260 |
| 100 | 312 |
| 150 | 412 |
| 200 | 530 |
Testing Data
| Hydraulic test | Body 15 kg/cm², Seat 11 kg/cm² |
|---|---|
| Pneumatic test | Seat 6 kg/cm² |
| Spark test | 15 KVDC |
- Actuator operated option also available.

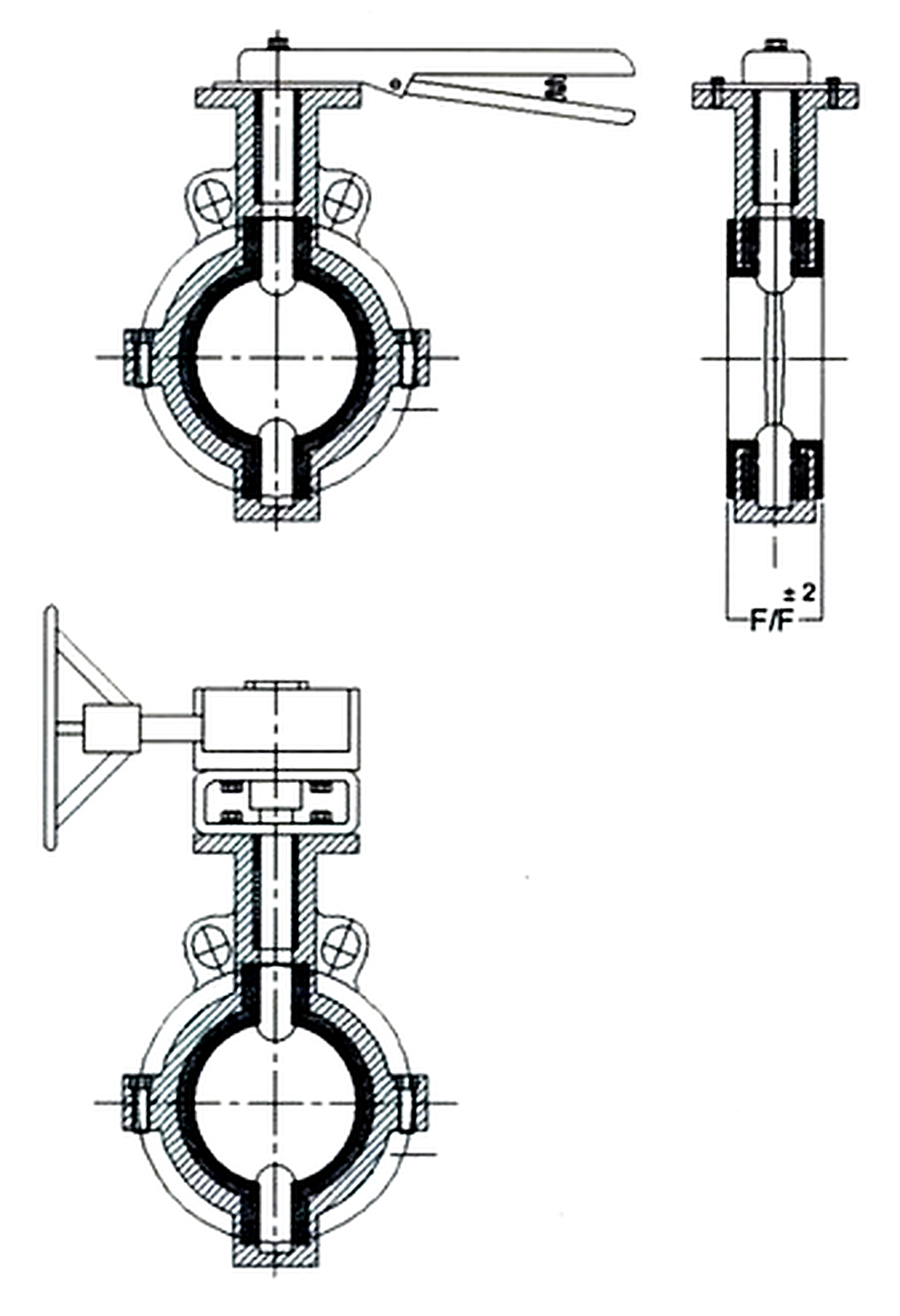

Wafer Type Lined Butterfly Valve
| Design std | BS 5155 |
|---|---|
| Body | ASTM A216 GR WCB / CF8 / CF8M |
| Flapper | ASTM A216 GR WCB / CF8 / CF8M (Fabricated: MS / SS304 / SS316) |
| Lining | PFA / FEP / PVDF / HDPE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | F/F (mm) |
|---|---|
| 50 NB | 43 |
| 65 NB | 46 |
| 80 NB | 46 |
| 100 NB | 52 |
| 150 NB | 56 |
| 200 NB | 60 |
| 250 NB | 68 |
| 300 NB | 78 |
| 350 NB | 83 |
| 400 NB | 102 |
Testing Data
| Hydraulic test | Body 15 kg/cm², Seat 11 kg/cm² |
|---|---|
| Pneumatic test | Seat 6 kg/cm² |
| Spark test | 15 KVDC |
- Manually lever operated, gear operated, actuator operated.

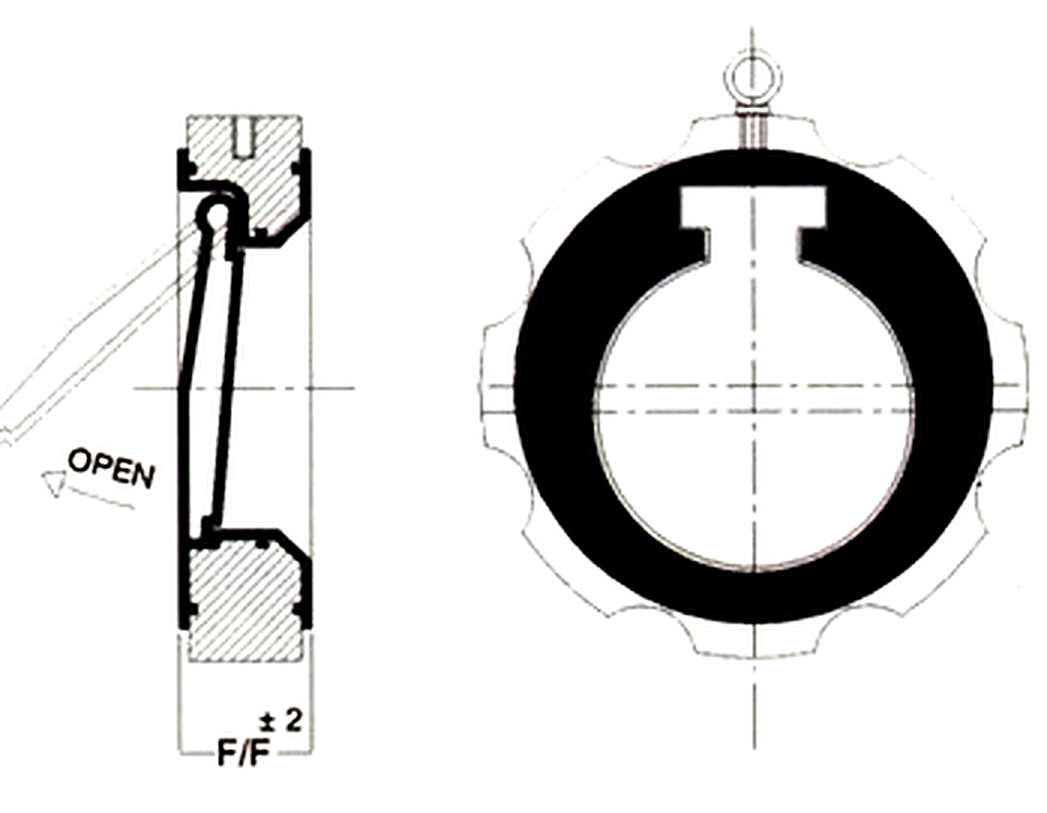

Lined Swing Check Valve (NRV)
| Design std | BS 5155 |
|---|---|
| Body | DI / ASTM A216 GR WCB / CF8 / CF8M |
| Flapper | ASTM A216 GR WCB / CF8 / CF8M (Fabricated: MS / SS304 / SS316) |
| Lining | PFA / FEP / PVDF / HDPE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | F/F (mm) |
|---|---|
| 50 | 43 |
| 65 | 46 |
| 80 | 46 |
| 100 | 52 |
| 150 | 58 |
| 200 | 62 |
| 250 | 68 |
| 300 | 78 |
Testing Data
| Hydraulic test | Body 15 kg/cm², Seat 11 kg/cm², Seat 2 kg/cm² (back pressure) |
|---|---|
| Spark test | 15 KVDC |

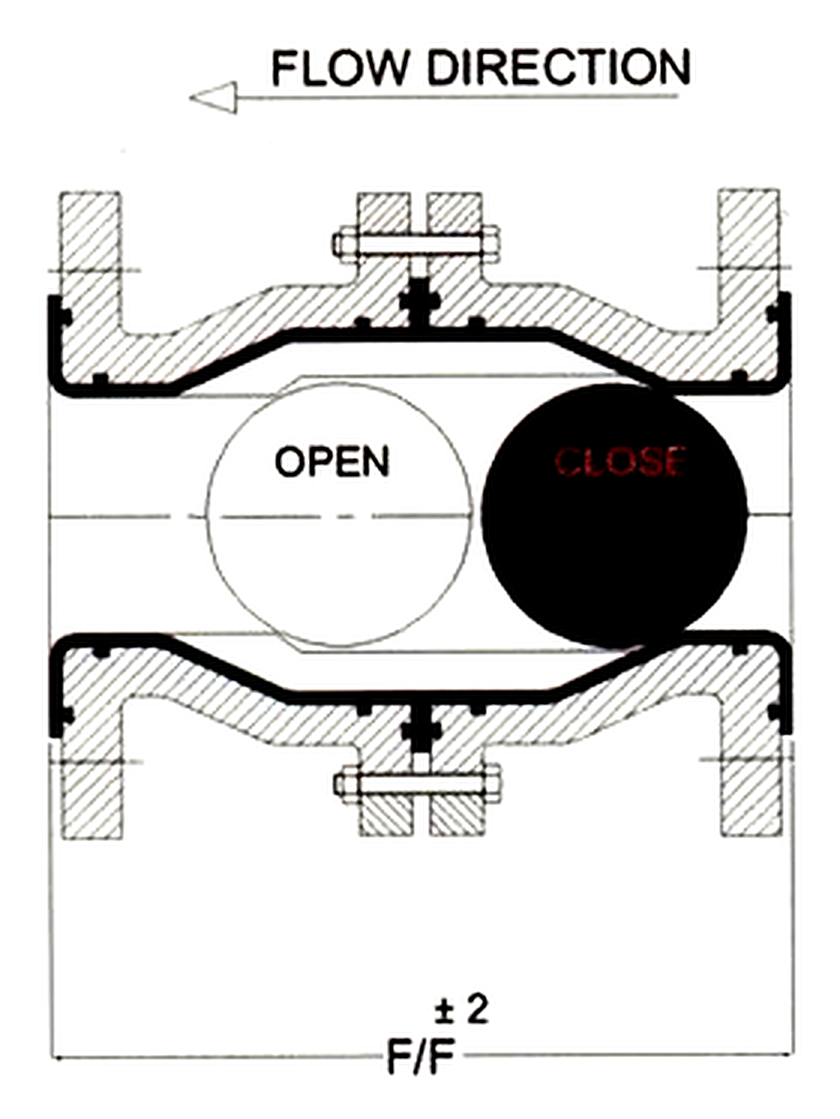

Lined Ball Check Valve (NRV)
| Body | DI / ASTM A216 GR WCB / CF8 / CF8M |
|---|---|
| Ball | Solid FAP |
| Lining | PFA / FEP / PVDF / HDPE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | F/F (mm) |
|---|---|
| 15 | 108 |
| 20 | 117 |
| 25 | 127 |
| 40 | 165 |
| 50 | 178 |
| 65 | 203 |
| 80 | 228 |
| 100 | 406 |
Testing Data
| Hydraulic test | Body 15 kg/cm², Seat 11 kg/cm², Seat 2 kg/cm² (back pressure) |
|---|---|
| Spark test | 15 KVDC |

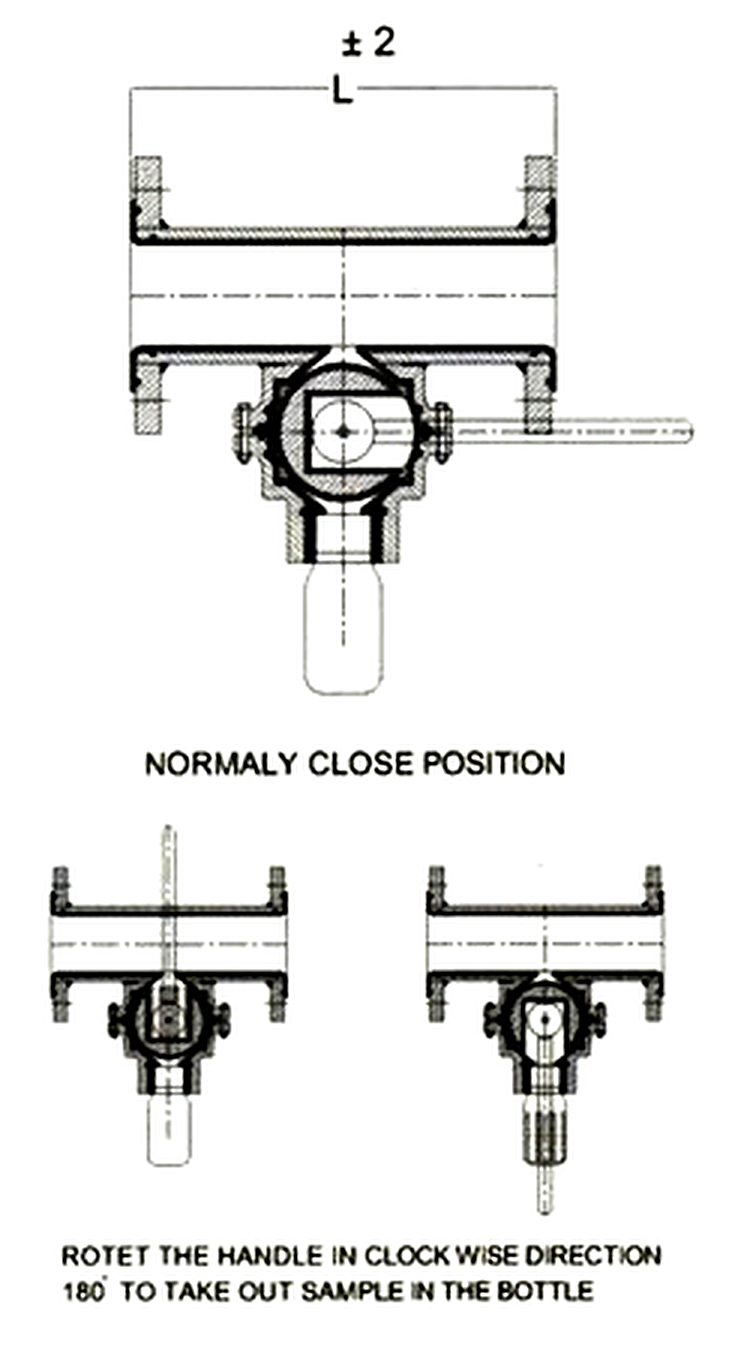

Lined Sampling Valve
| Body | ASTM A216 GR WCB / CF8 / CF8M |
|---|---|
| Ball | ASTM A216 GR WCB / CF8 / CF8M (Fabricated: MS / SS304 / SS316) |
| Lining | PFA / FEP / PVDF / HDPE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Dimensional Data
| Size (NB) | L (mm) |
|---|---|
| 25 | 250 |
| 40 | 250 |
| 50 | 250 |
| 80 | 250 |
Testing Data
| Hydraulic test | Body 15 kg/cm², Seat 11 kg/cm² |
|---|---|
| Pneumatic test | Seat 6 kg/cm² |
| Spark test | 15 KVDC |
- Normally closed position. Rotate the handle clockwise 180° to take out the sample in the bottle.

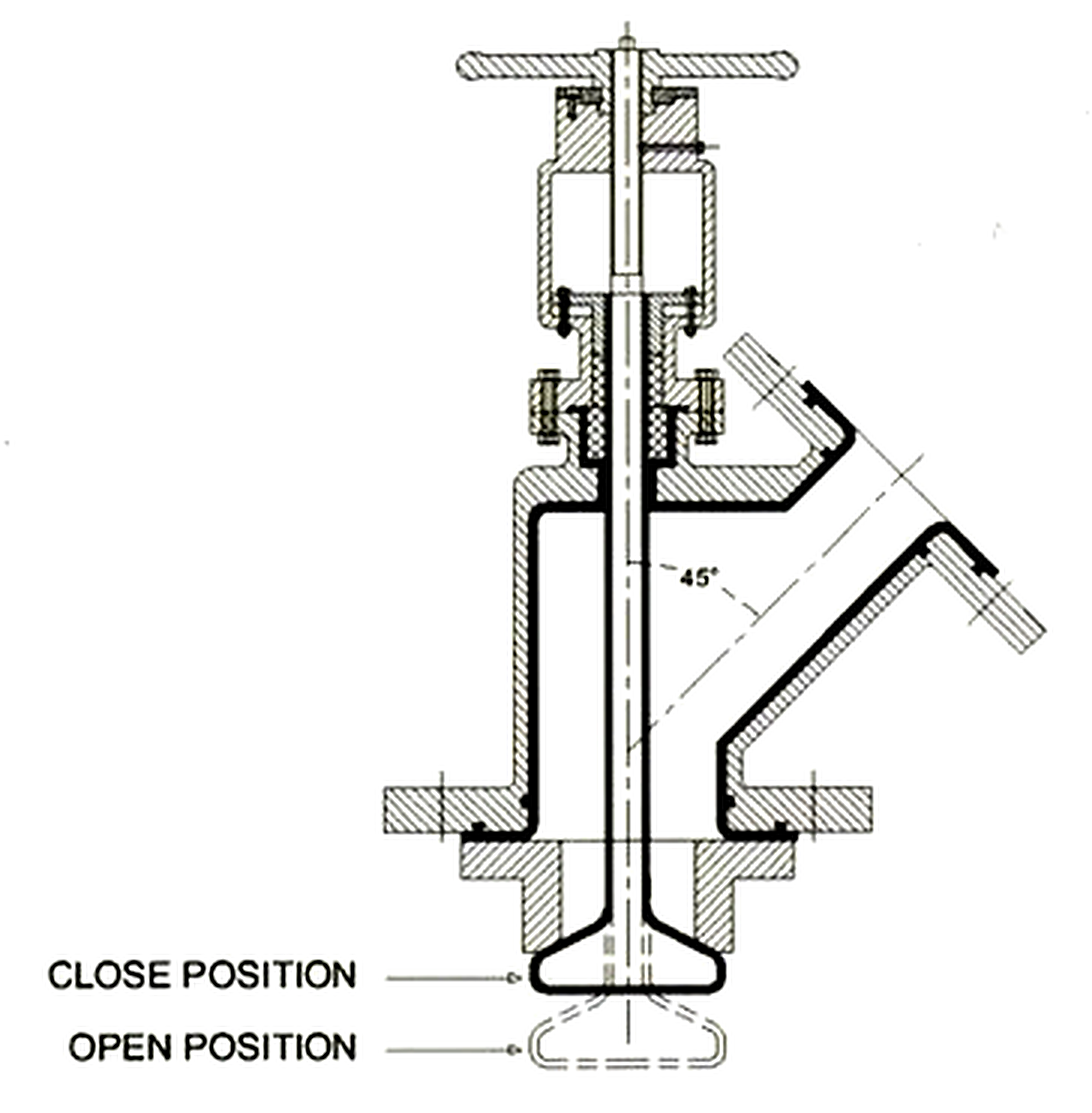

Lined Flush Bottom Valve
| Body | DI / ASTM A216 GR WCB / CF8 / CF8M |
|---|---|
| Spindle | MS / SS304 / SS316 |
| Lining | PFA / FEP / PVDF / HDPE / PP |
| Lining thickness | 3 mm minimum |
| Flange connection | ANSI B16.5, #150 / Customer requirement |
Testing Data
| Hydraulic test | Body 15 kg/cm², Seat 11 kg/cm² |
|---|---|
| Pneumatic test | Seat 6 kg/cm² |
| Spark test | 15 KVDC |
- 45° outlet design. Dimensional table not given in the catalog.
